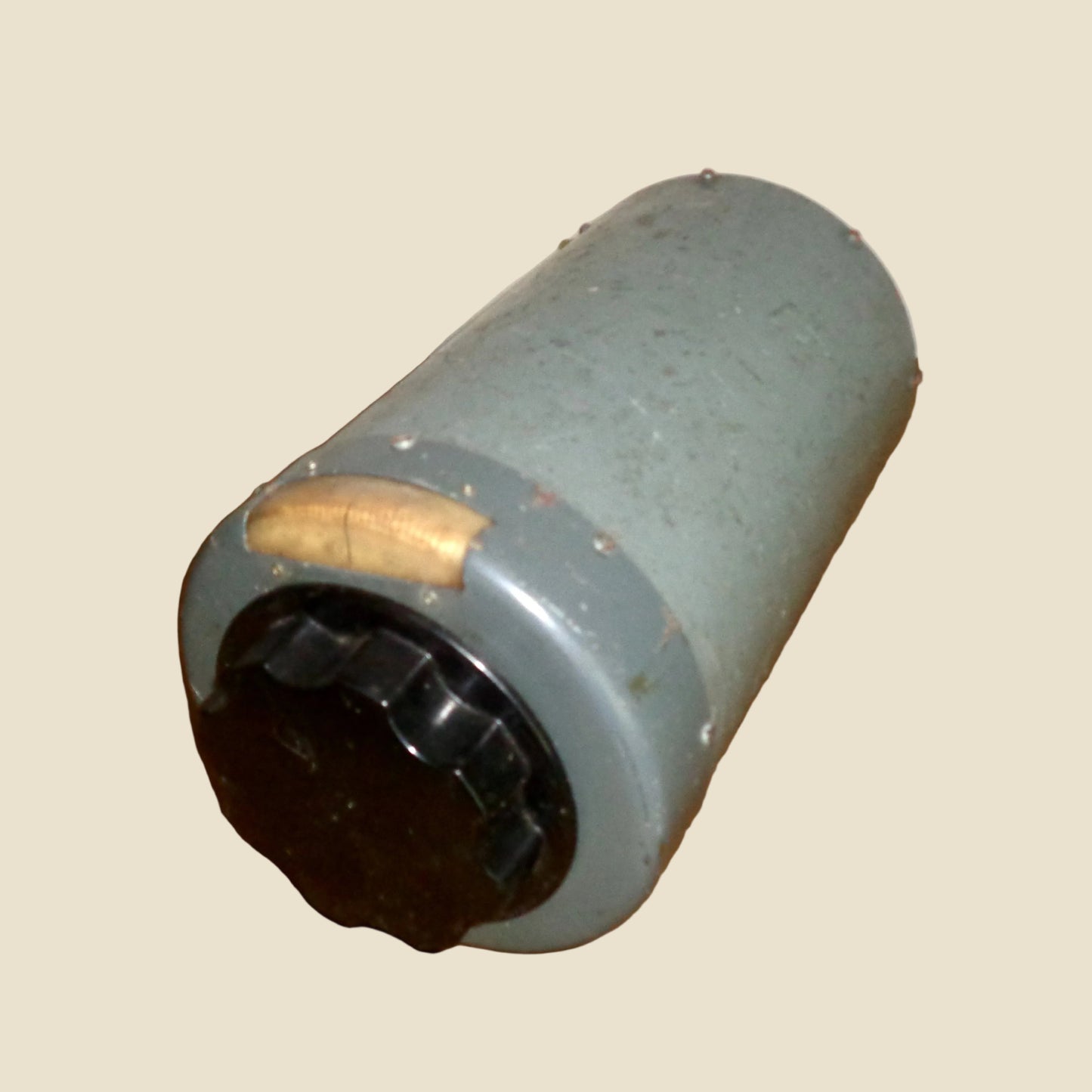

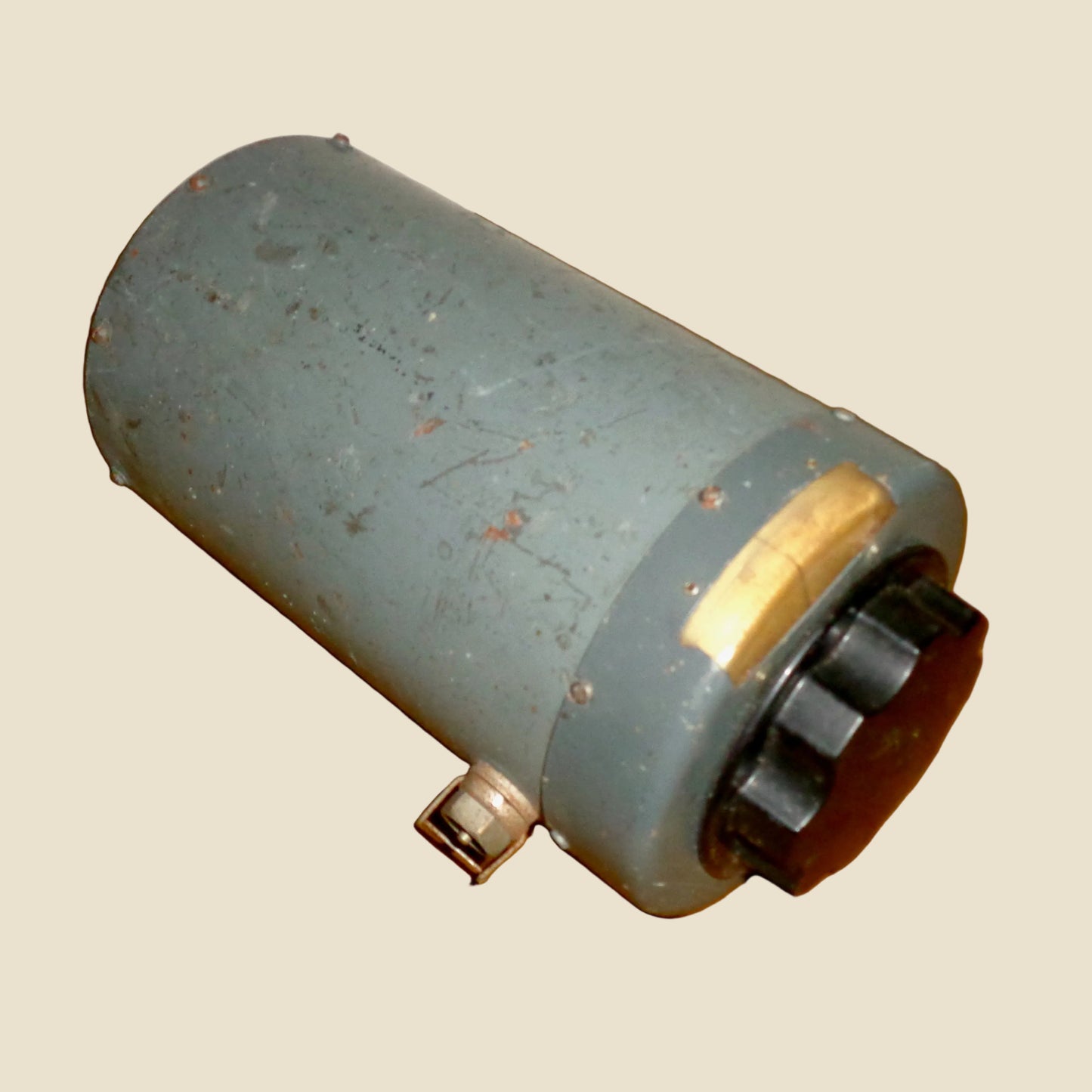

WW2 Wireless Set No. 19 WS19 Aerial Variometer With Grey Coating

This is a very nice WW2 Wireless Set No. 19 WS19 Aerial Variometer With Grey Coating.

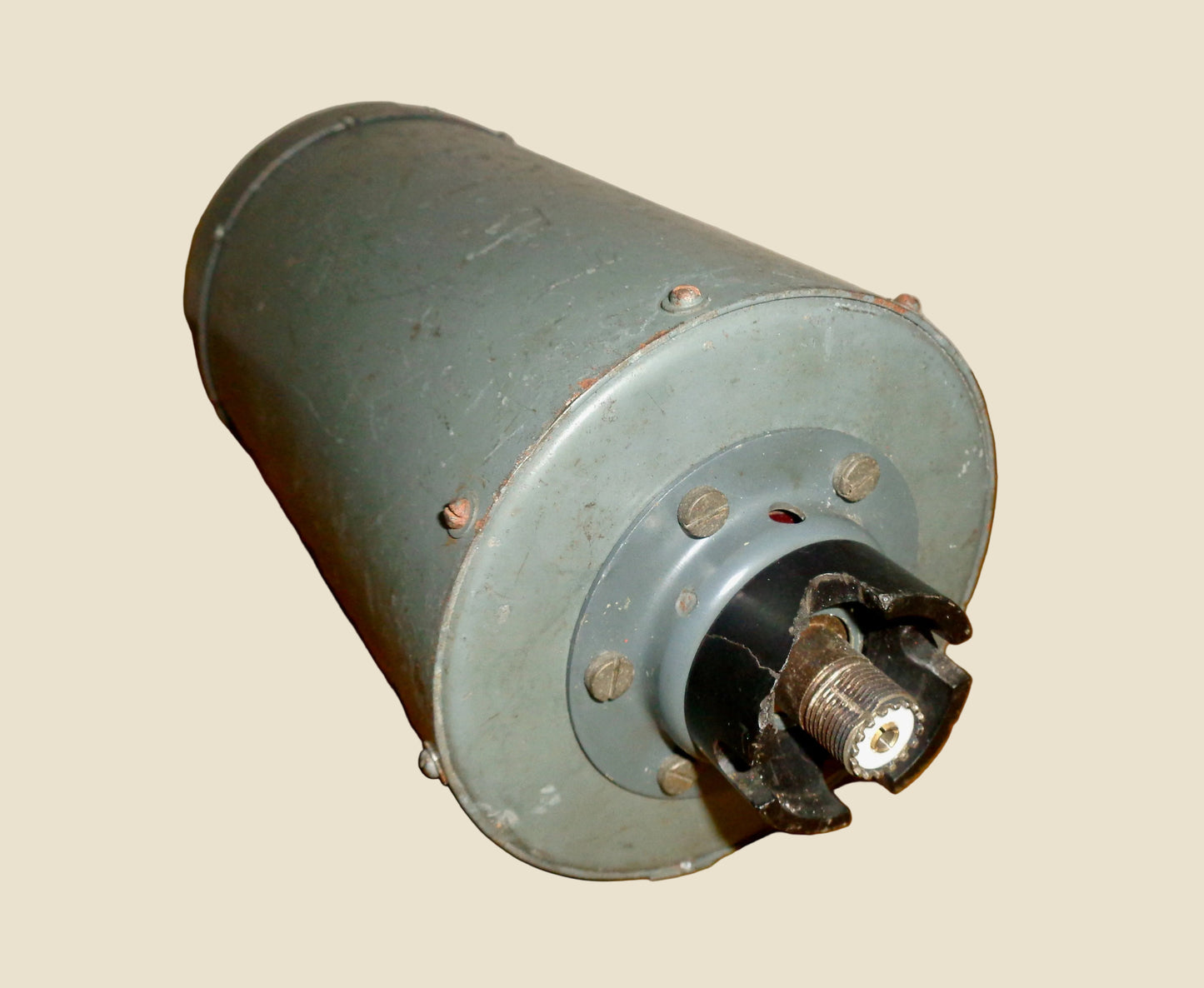

In fairly good condition with surface scuffs and scratches commensurate with age and use. The glass over the scales is discoloured and the bakelite at the base has cracked.

It would have been used in conjunction with the British WS19: (Wireless Set No.19 not included!)

The Aerial Variometer was used to match a short rod aerial of 8 or 12 feet to 1/4 wavelength in the frequency range of the Wireless Set (W.S) No. 19 (see schematic below).

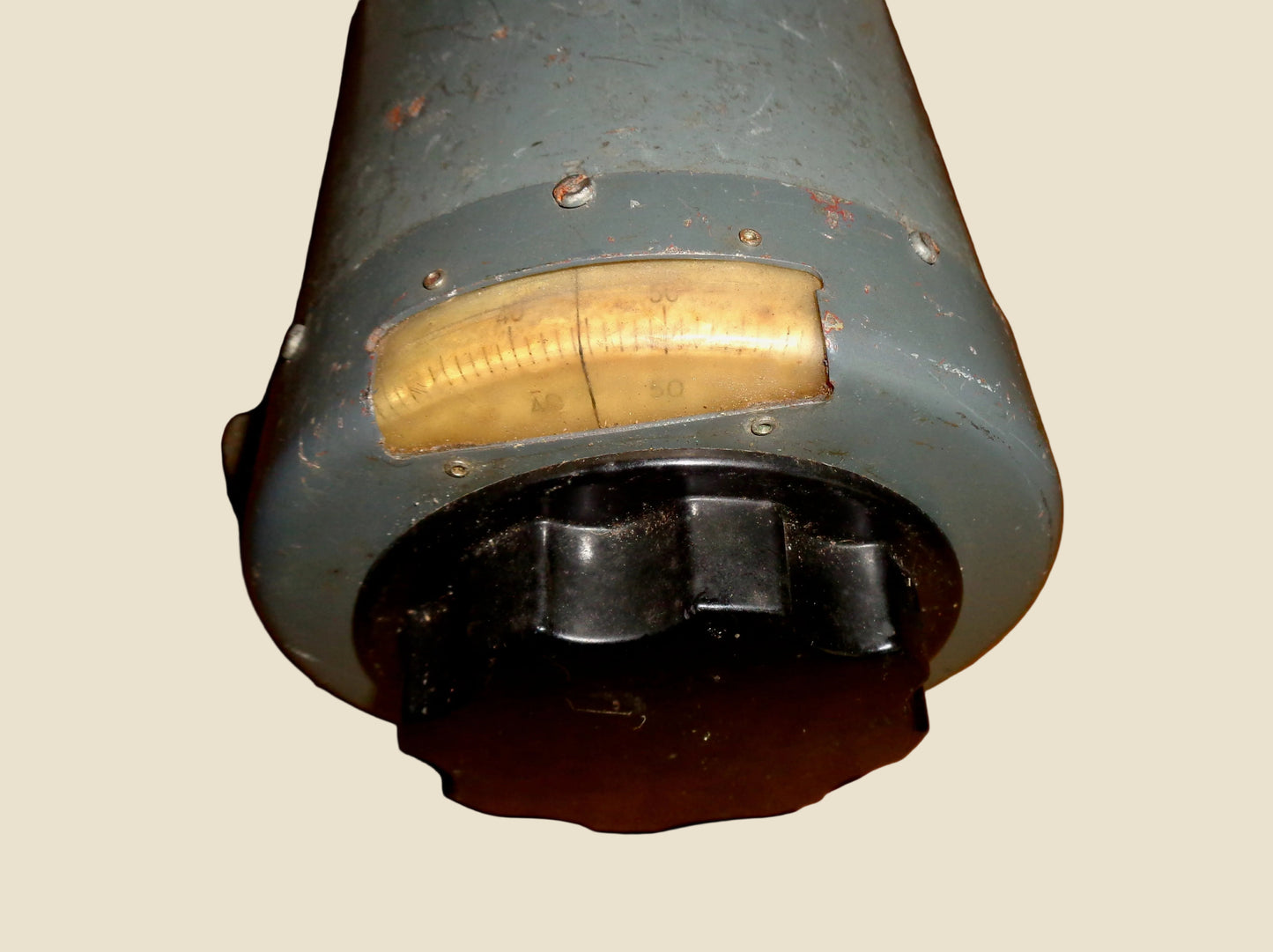

Two calibration scales are available 0-100 and 200-100. Both are accessible by turning the control knob on the variometer by 180 degrees for one scale and another 180 degrees for the second scale.

• The 0-100 calibration is used at low bands frequencies (2-4.5 MHz). The two coils are switched in series with the addition of inductance.
• The 200-100 Calibration is used at the higher band (4.5-8 MHz). In this configuration the coils are switched in parallel with reduced inductance).

For more information see L. Meulstee Wireless for the Warrier pages: W.S.19-27
