1957 MOD CV1504 Half-wave High Voltage Rectifier Valve

1957 MOD CV1504 Half-wave High Voltage Rectifier Valve

United Electronics Co.

Regular price $44.00 USD
Regular price Sale price $44.00 USD
Sale Sold out
Shipping calculated at checkout. Add to basket/cart for a shipping estimate based on postcode / zipcode

Low stock: 1 left

1957 MOD CV1504 Half-wave High Voltage Rectifier Valve

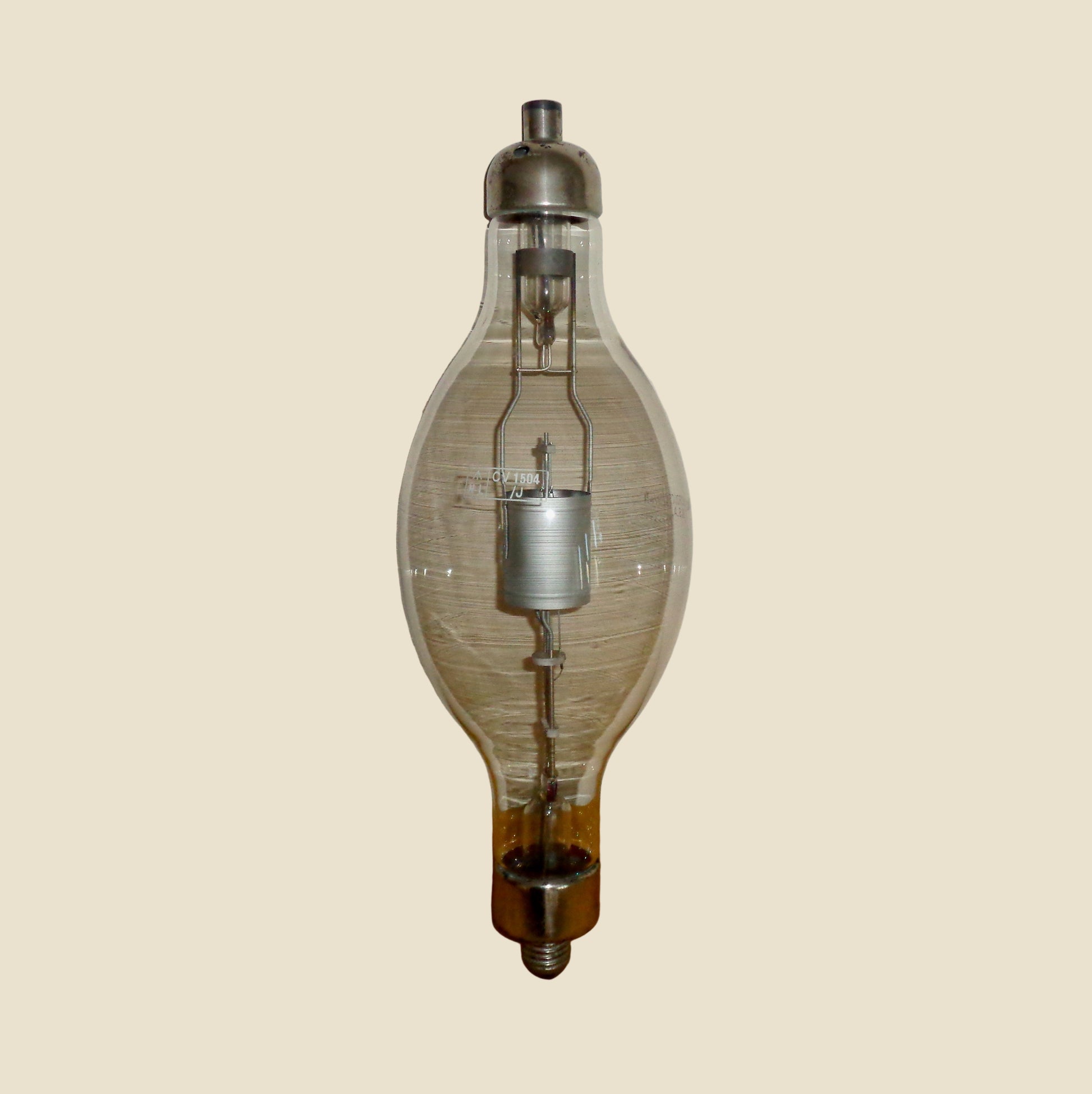

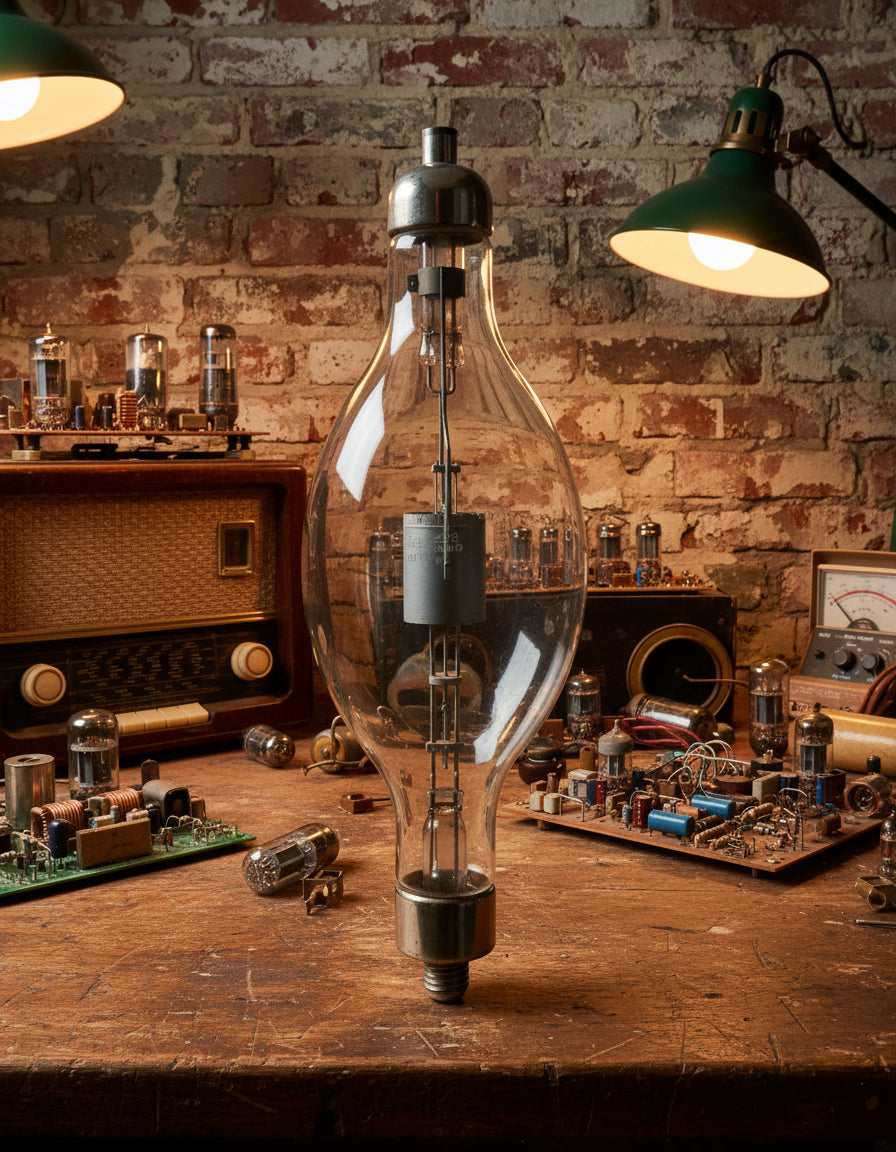

This large valve is a 1957 MOD CV1504 Half-wave High Voltage Rectifier Valve.  In very good cosmetic condition, with a few surface scuffs and blemishes, it has not been tested and is sold as a collectible for display only.

Purportedly designed for use in X-Ray equipment, this particular valve was manufactured by United Electronics Co., Newark, NJ, USA, however, this valve type was also made by several different manufacturers including Ediswan, who produced the prototype (V1901).

Approximate Size: Height: 45.0 Width: 14.5 cm

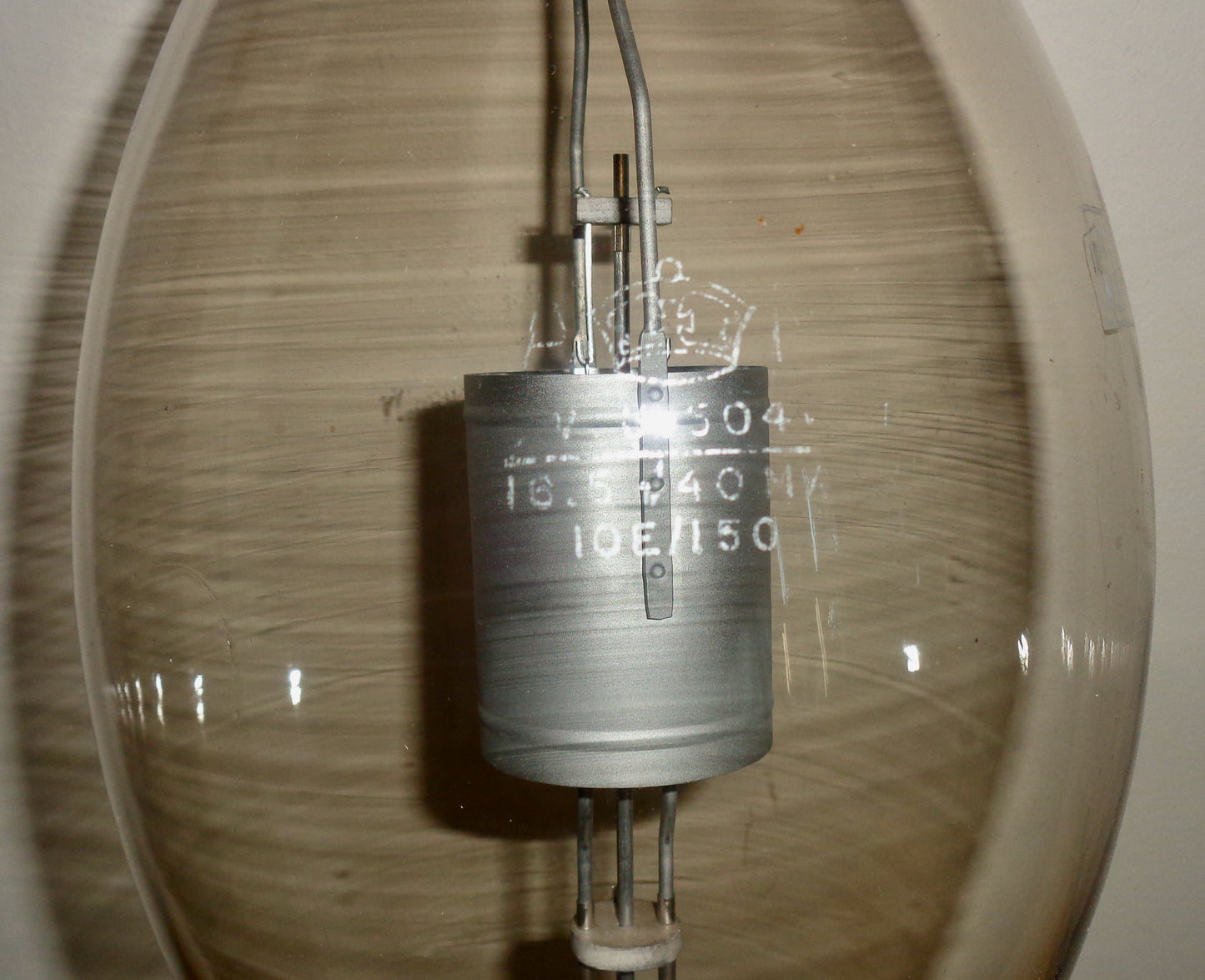

The valve is etched on the side as follows:-

Crown

VU504
16.5-40MA
10E/150
(where 10E is the RAF stores reference for Magnets and Radio Valves (Industrial Types))

Army arrow↑ NL

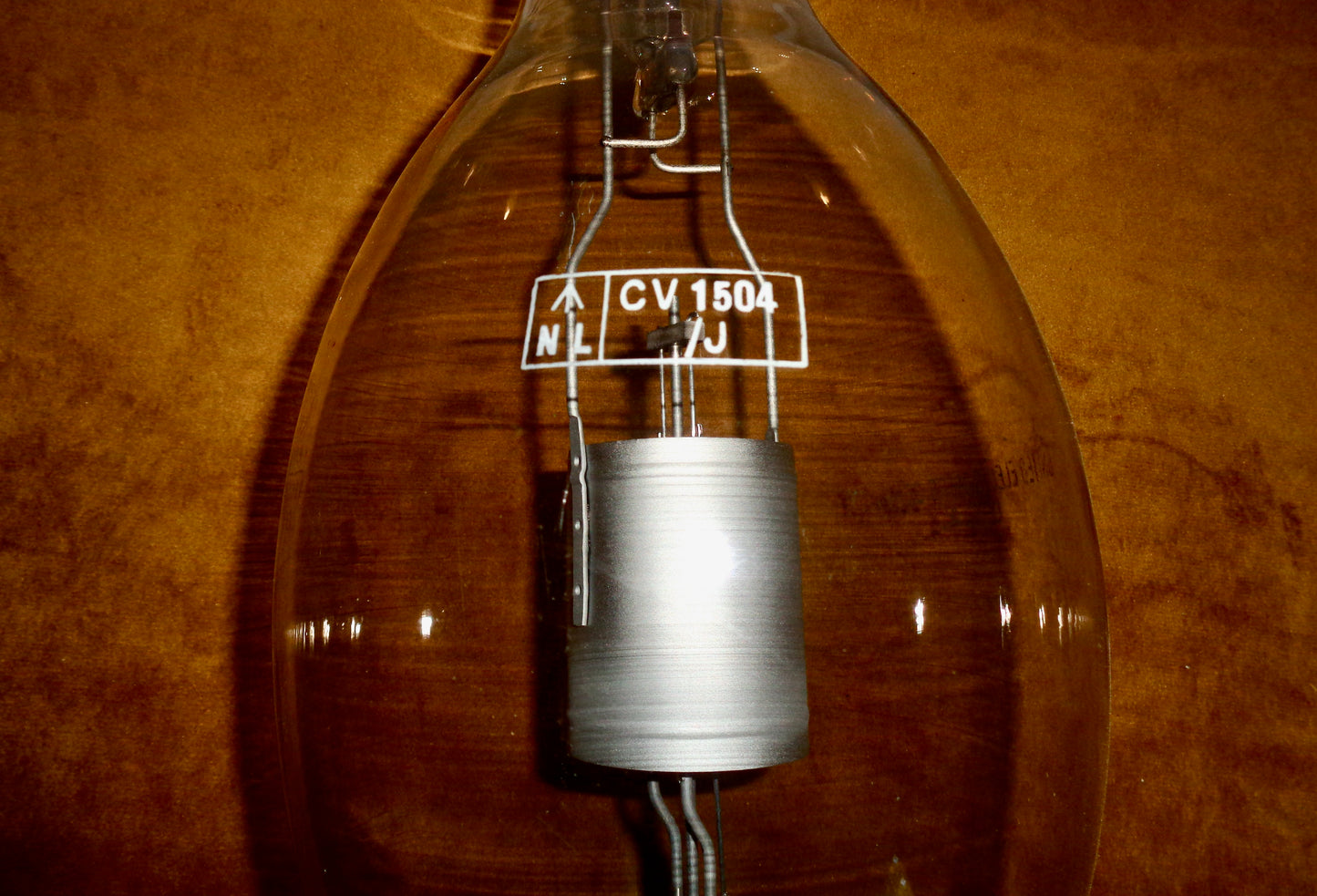

CV1504/J (which means that it was made 11/1957)

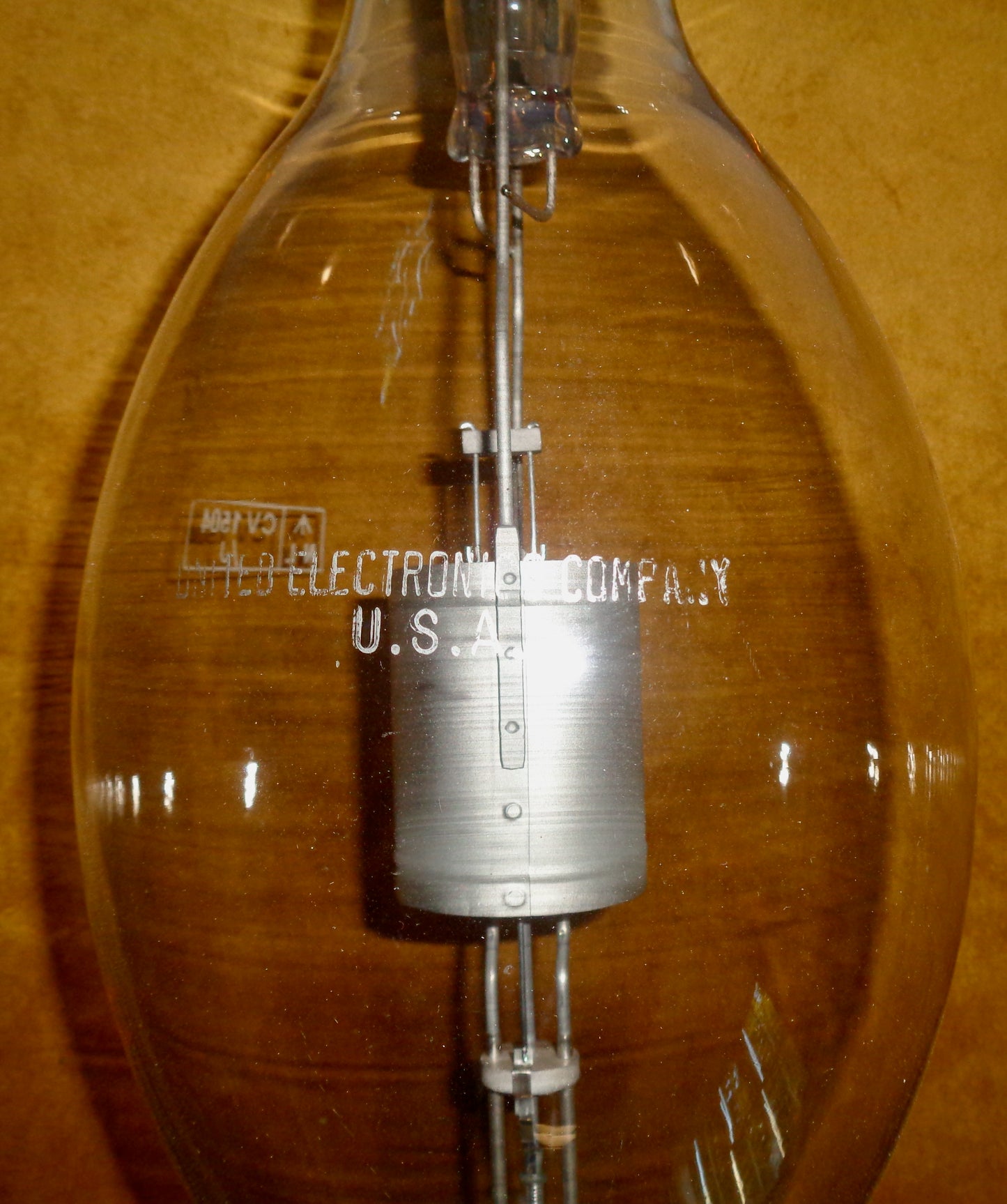

United Electronics Co. USA

Summary:-

  • The filament consists of two hairpins of tungsten.

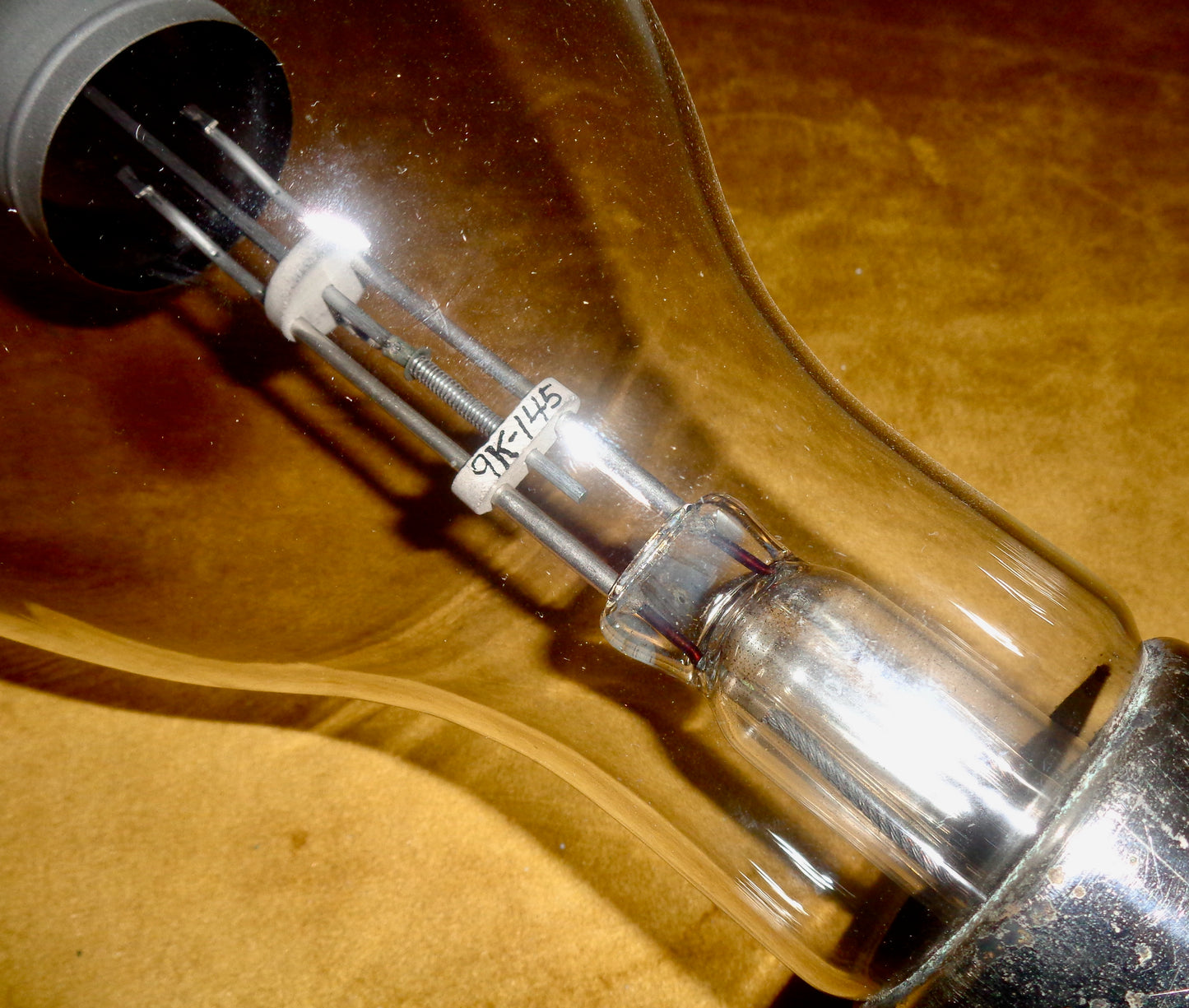

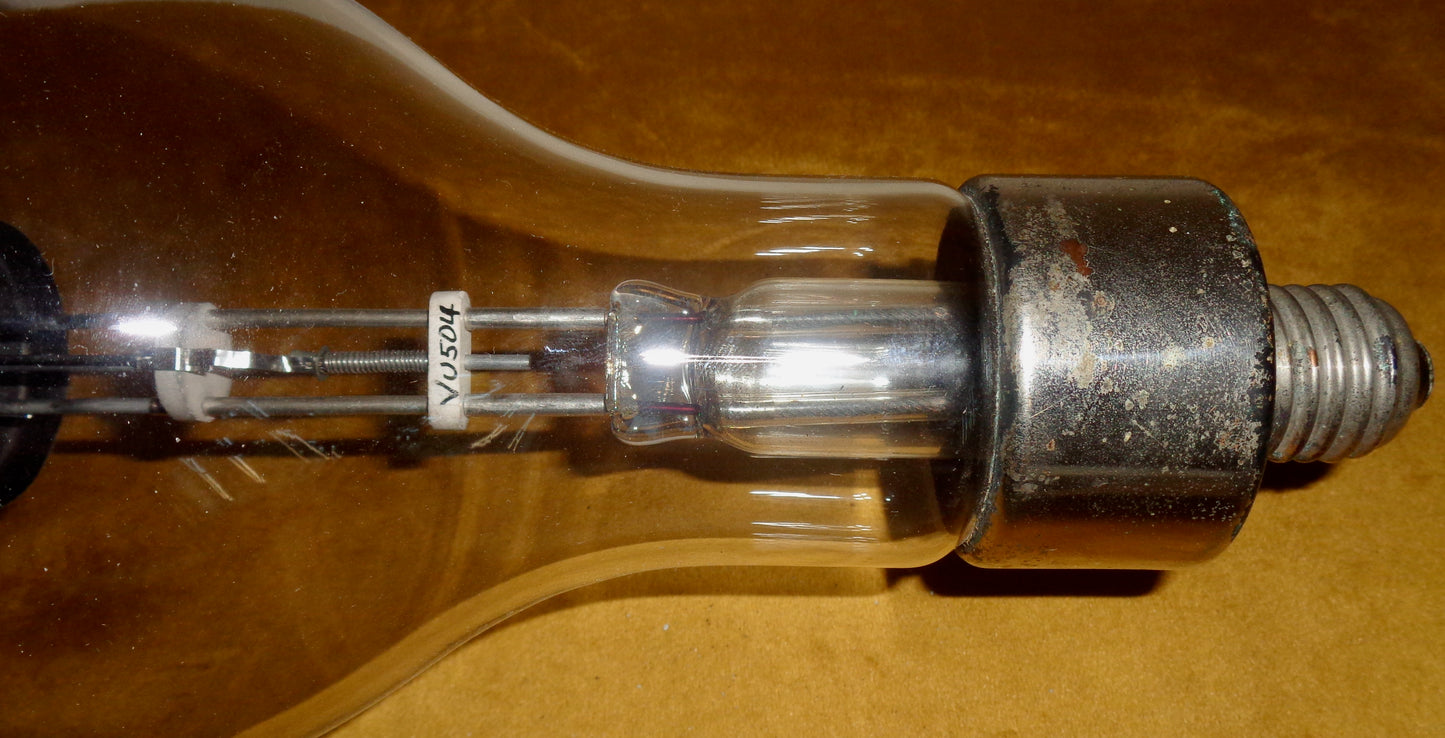

  • The filament is marked VU504 on one side and 9K-145 on the other.
  • The valve has the designation VU504 = 10E/150= CV1504
  • 16.5V/15.2A filament, 60kV/40MA rating.

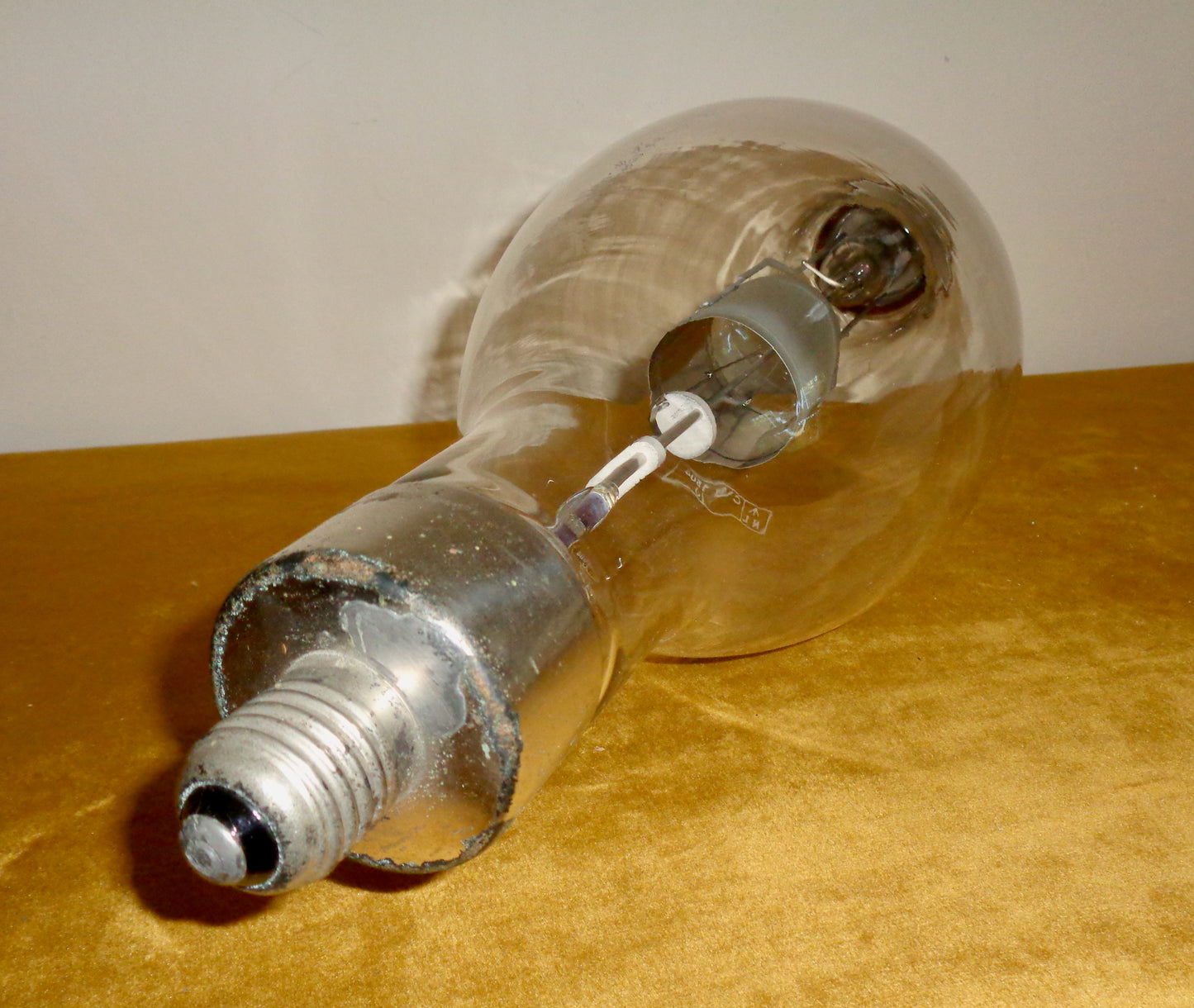

  • Base: Edison E27 screw fitting (27mm)

Since it is unlikely that collectors will use them as intended, some people have looked for alternate uses and have even converted them into novelty lamps!

A nice piece of Electrical history to add to your collection!

Please click on the following link for more vintage technology.

NB: Although the valve isn't heavy, it will cost quite a lot to ship due to its size! In the UK this means shipping as a medium parcel.
