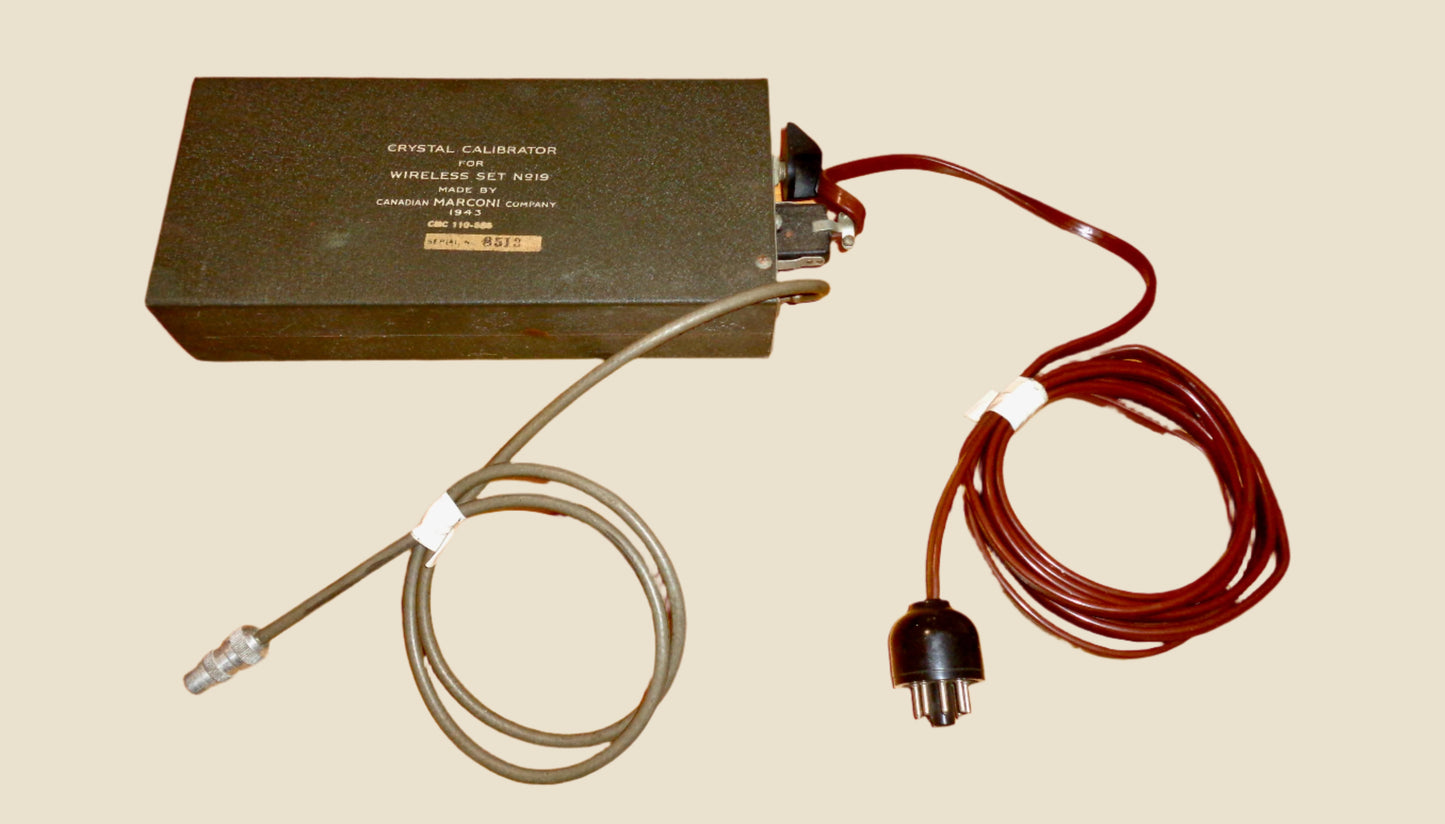

WW2 1943 Crystal Calibrator For WS19 Wireless Set No.19 Made By Canadian Marconi

This WW2 1943 Crystal Calibrator For WS19 Wireless Set No.19 Made By Canadian Marconi is in very good cosmetic condition. It does have a few scuffs and blemishes commensurate with age and use.

Approximate Size

• WHD:  5.1 x 10.8 x 26cm

This particular crystal calibrator is sold as a collectible for display only, and has not been tested.

NB:

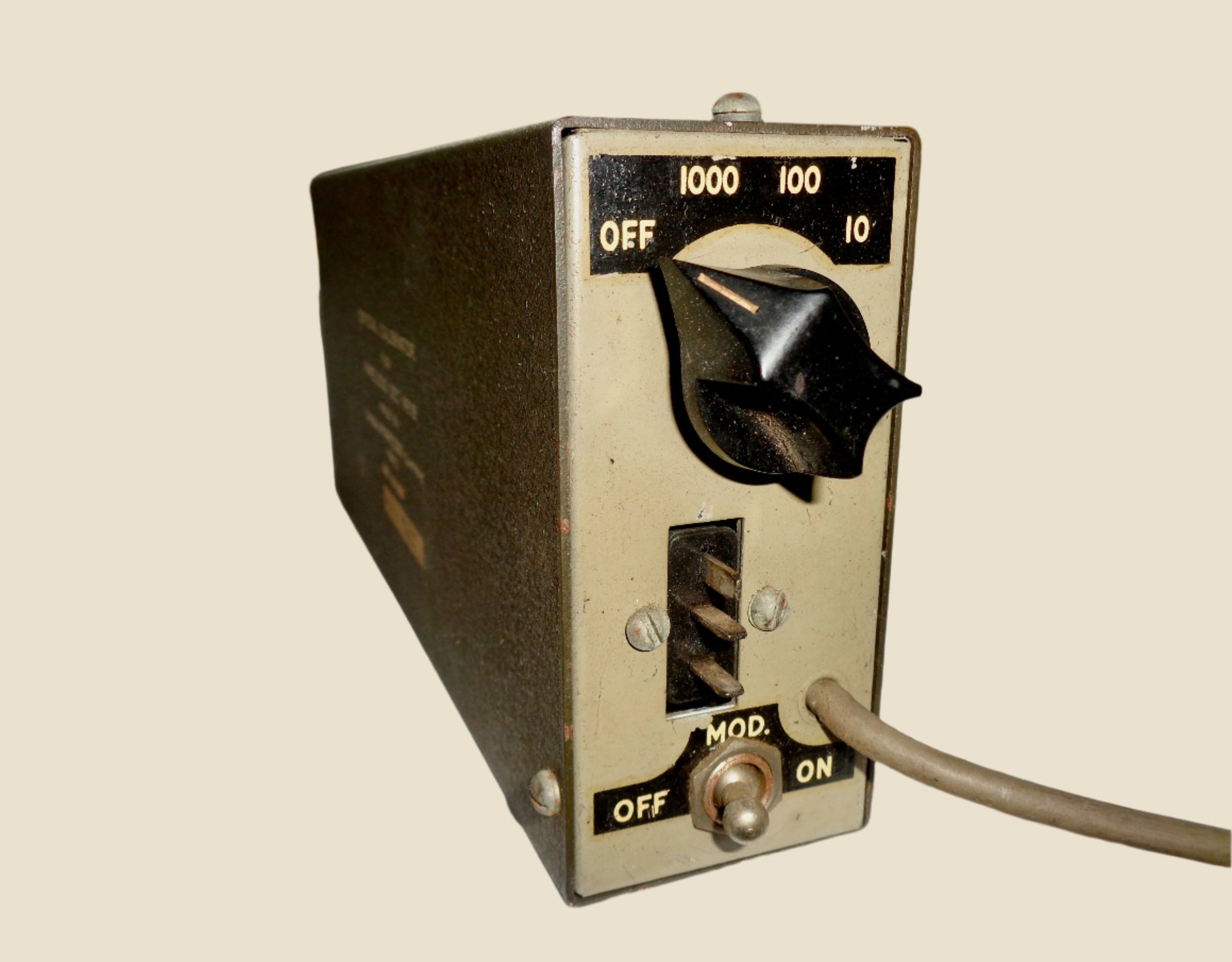

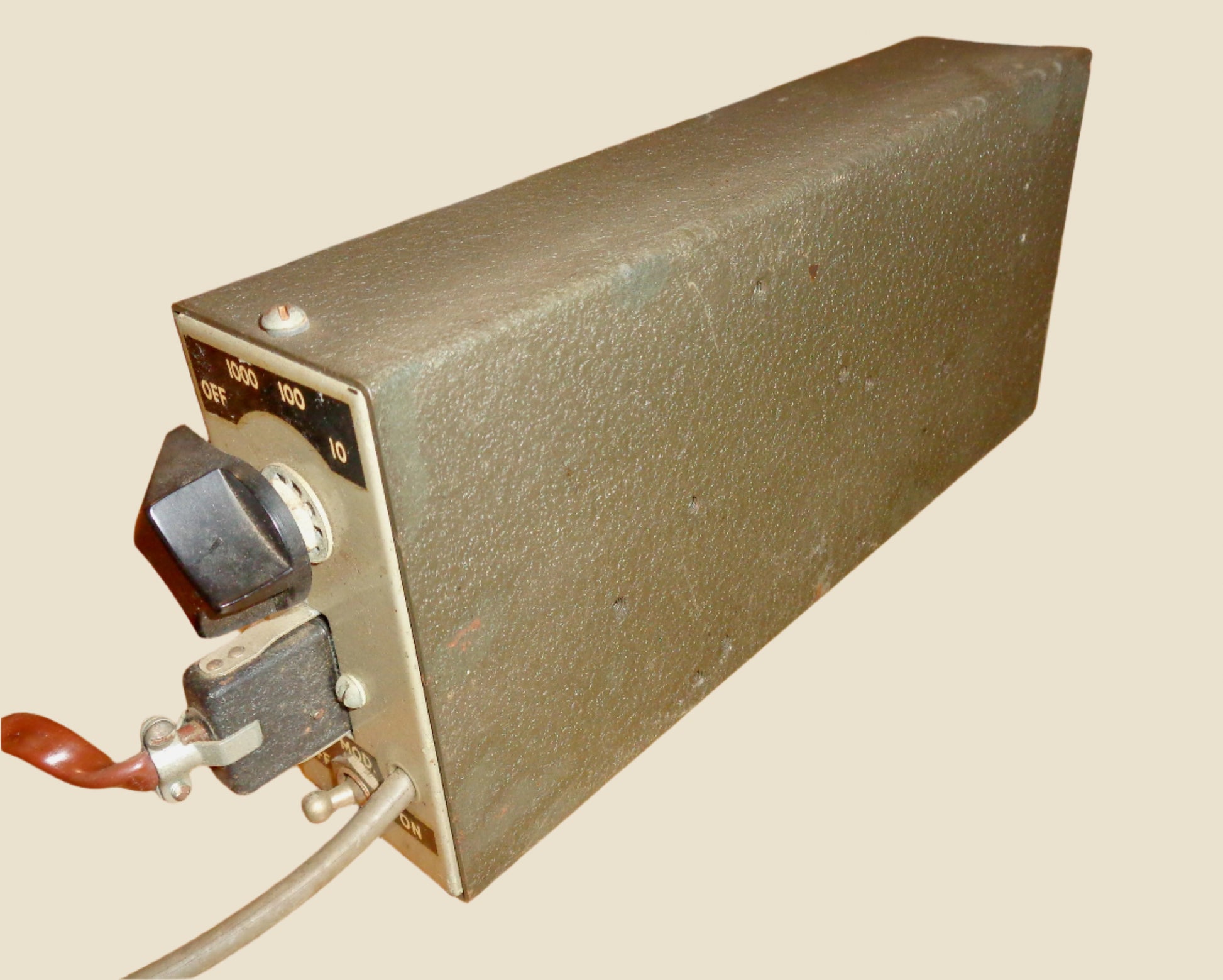

• The fascia and internals of the crystal calibrator have not been modified.
• The connectors have been modified as follows:-

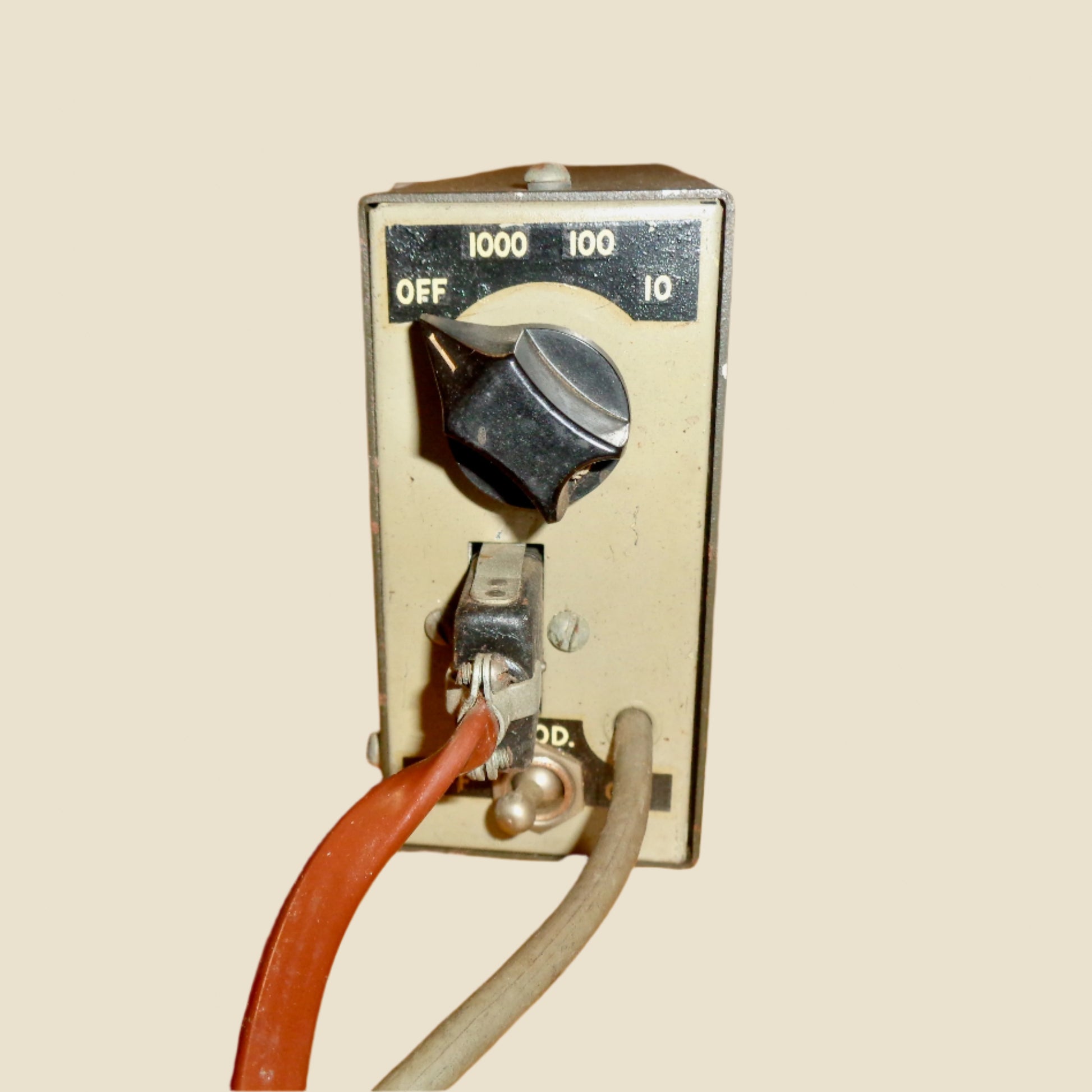

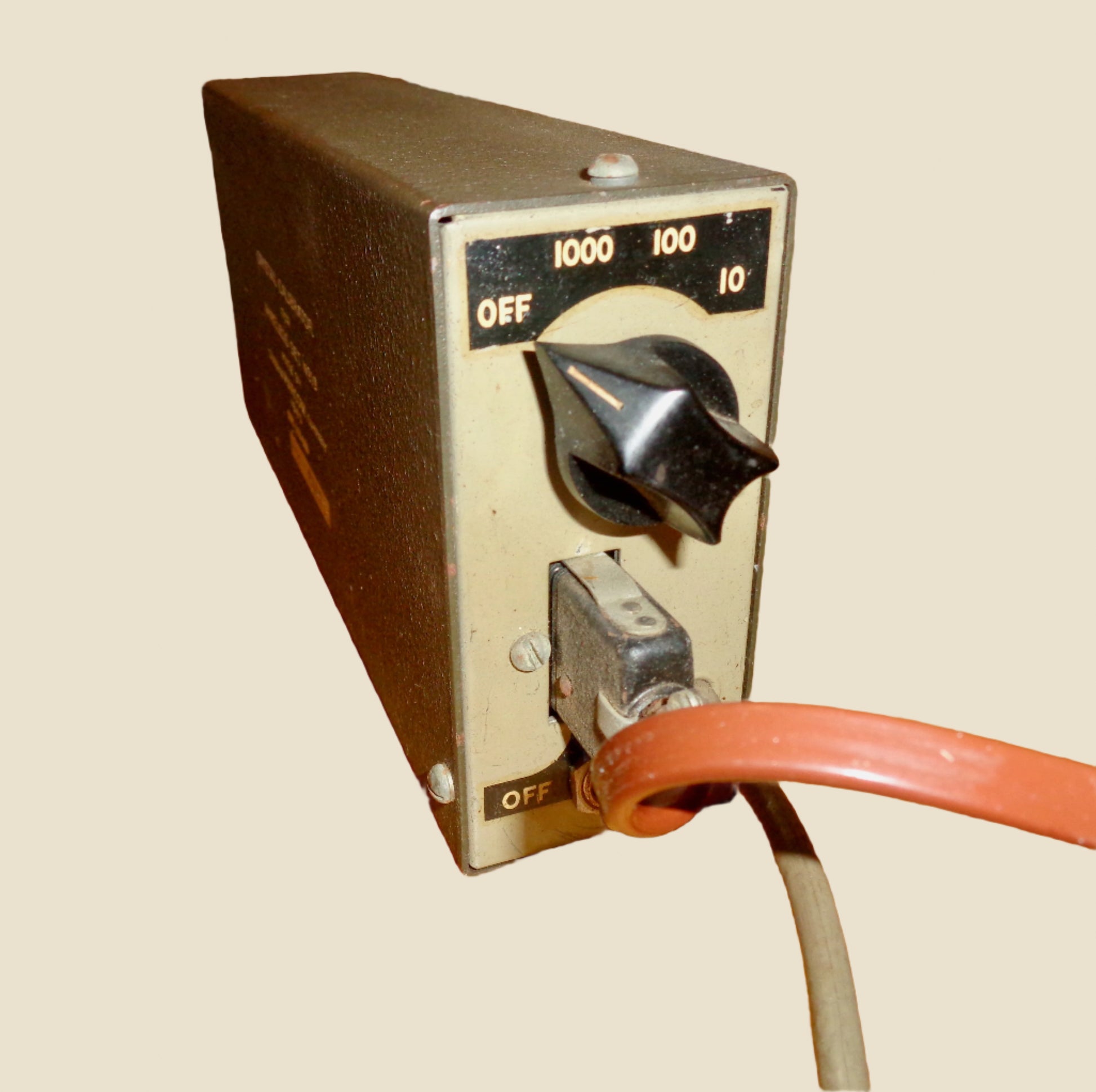

  • In order to power the unit, in the absence of the special dog bone, a lead has been constructed which has the correct (original) 3-pin Jones socket at the calibrator end with a Bulgin Octal 8-pin plug fitted at the other end.
  • The RF output lead has been terminated with a Belling Lee TV coaxial in place of the right angle Pye plug which is a very easy change.

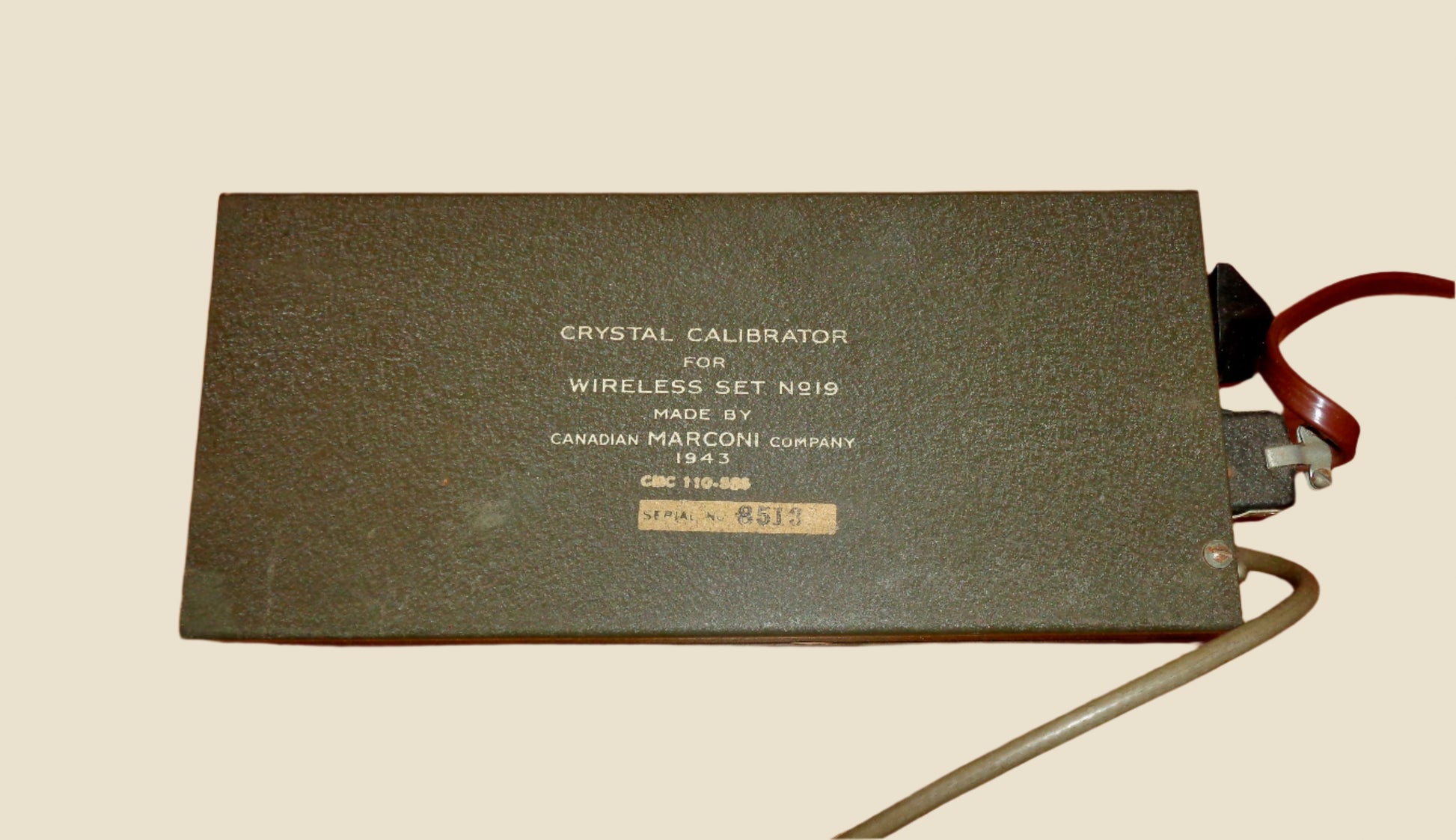

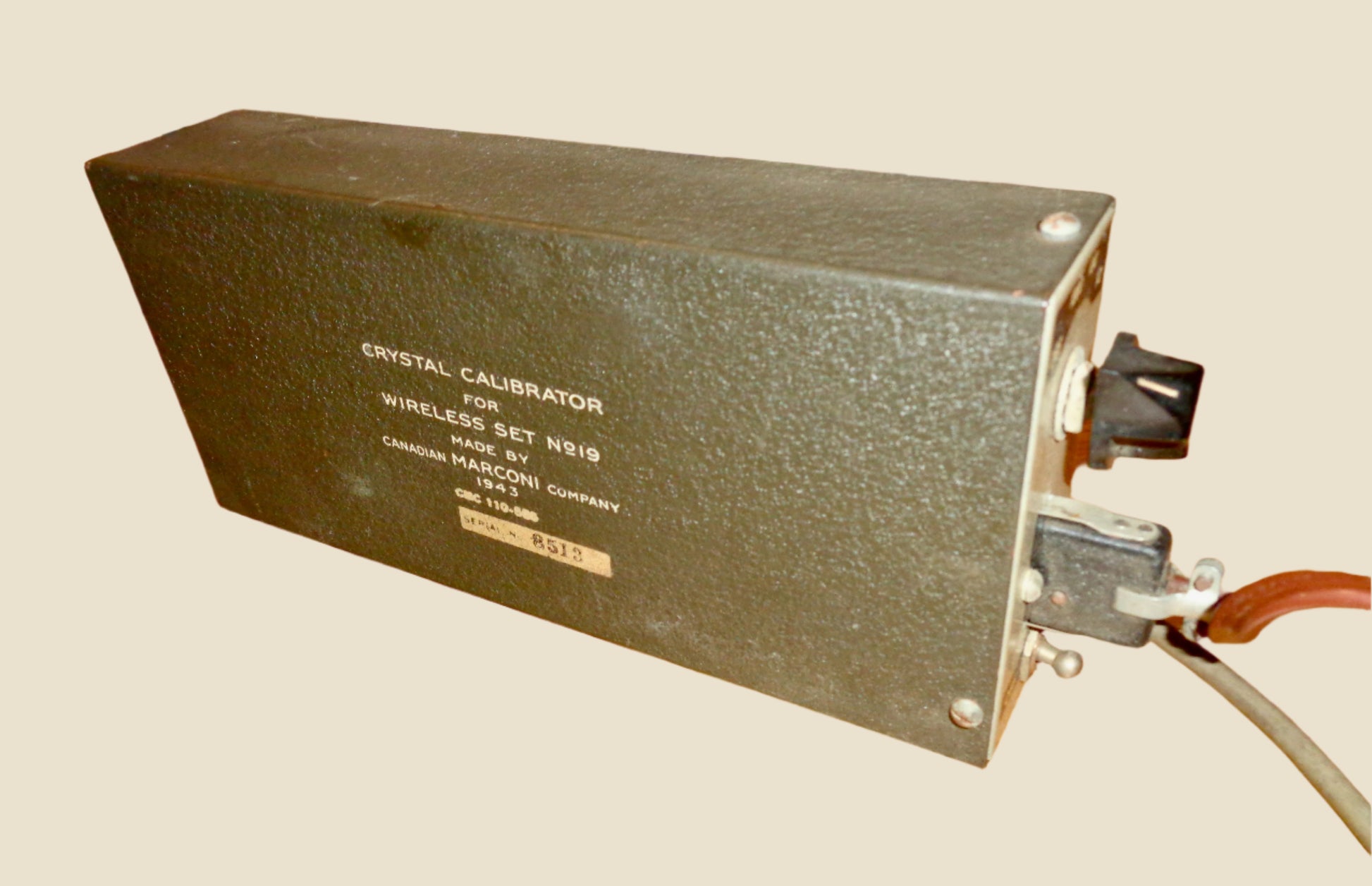

It has the following markings stamped on the side panel:-

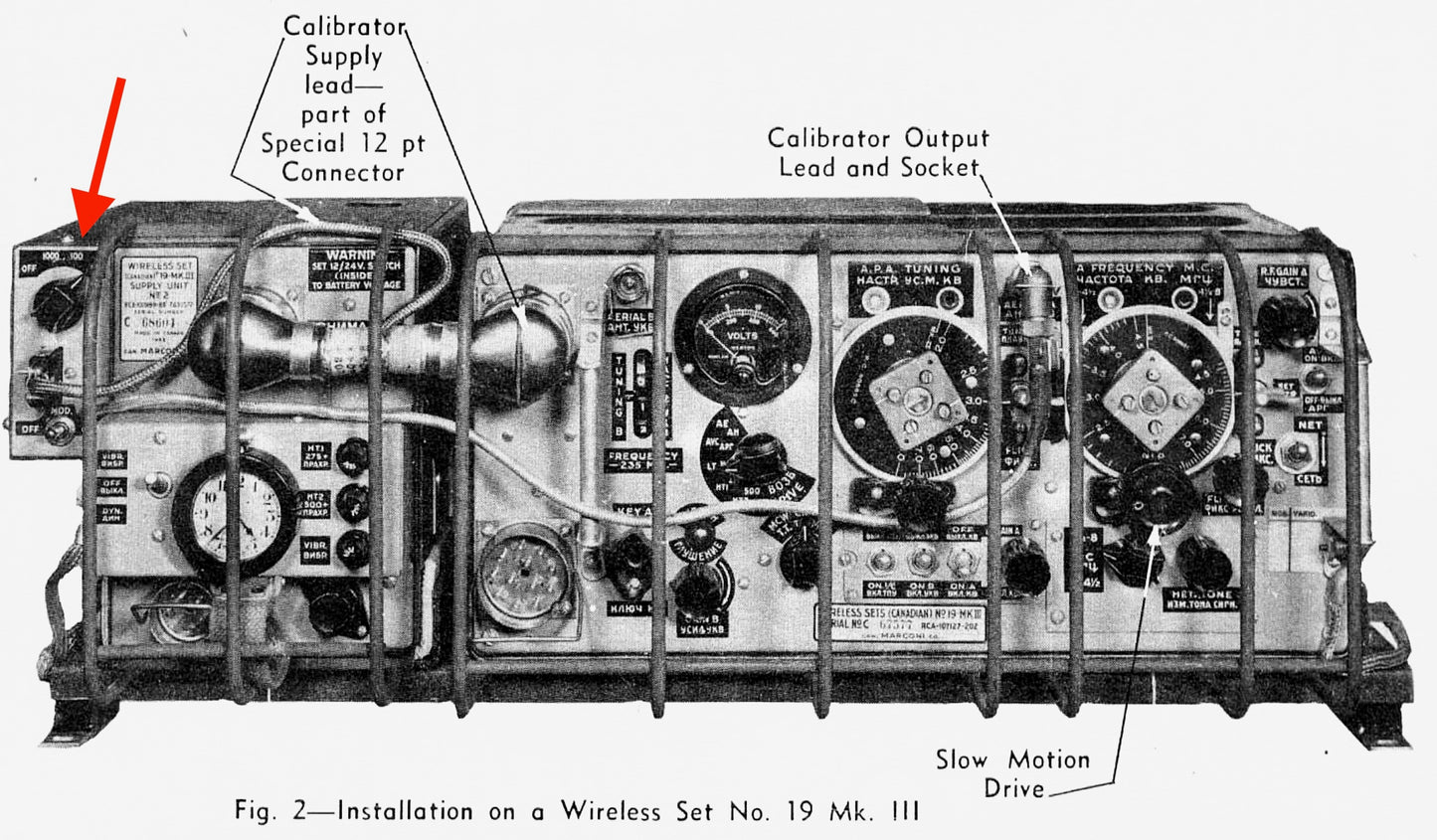

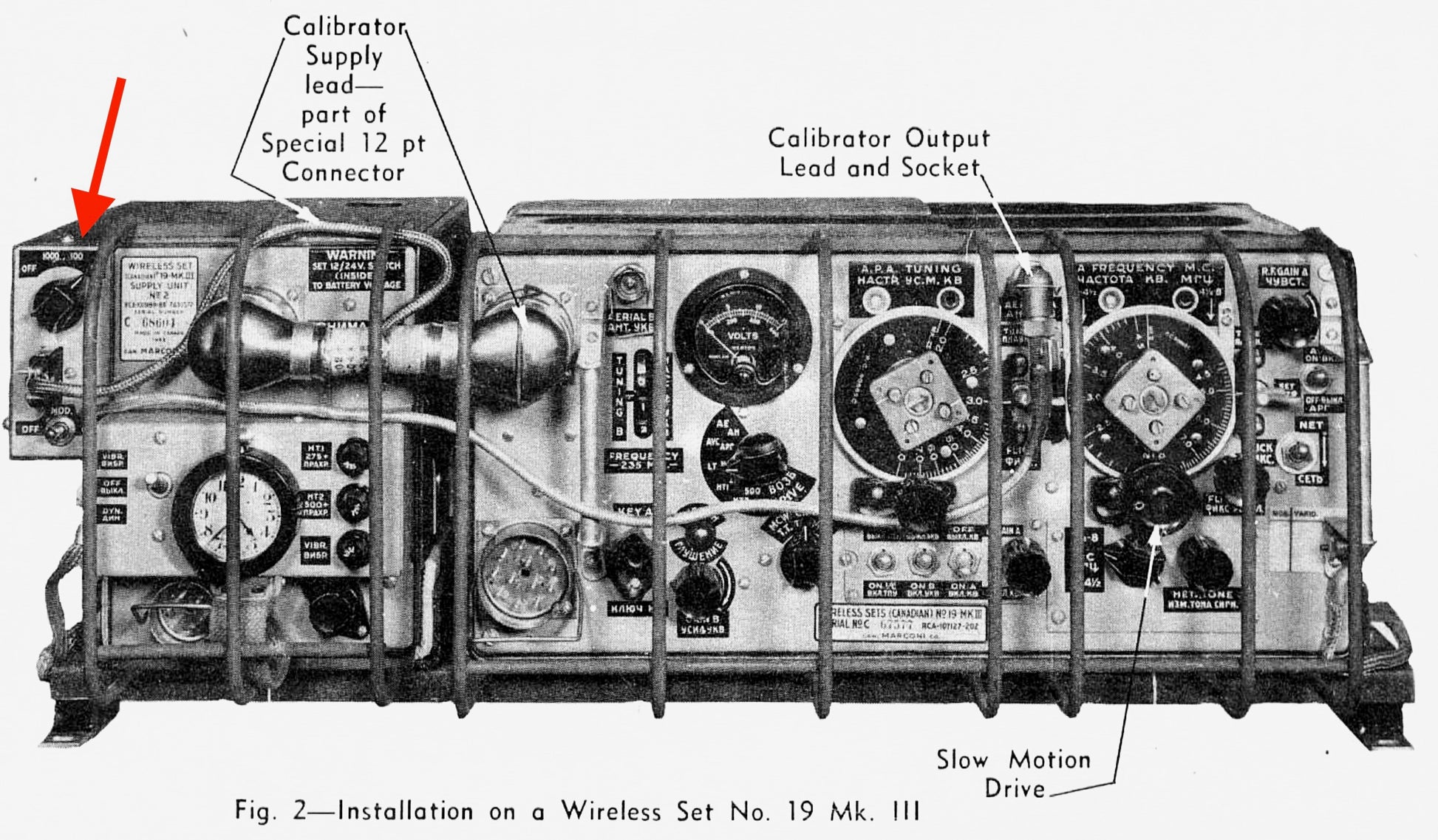

The wireless set no.19 (WS19) crystal calibrator was made to accompany the Mobile WS19 radio transceiver favoured by Allied armoured troops during WW2- see schematic of a WS19 with red arrow pointing to the calibrator.

According to the instruction manual (not included but they are available to view on the internet):-

A really interesting piece of military radio communication history!
