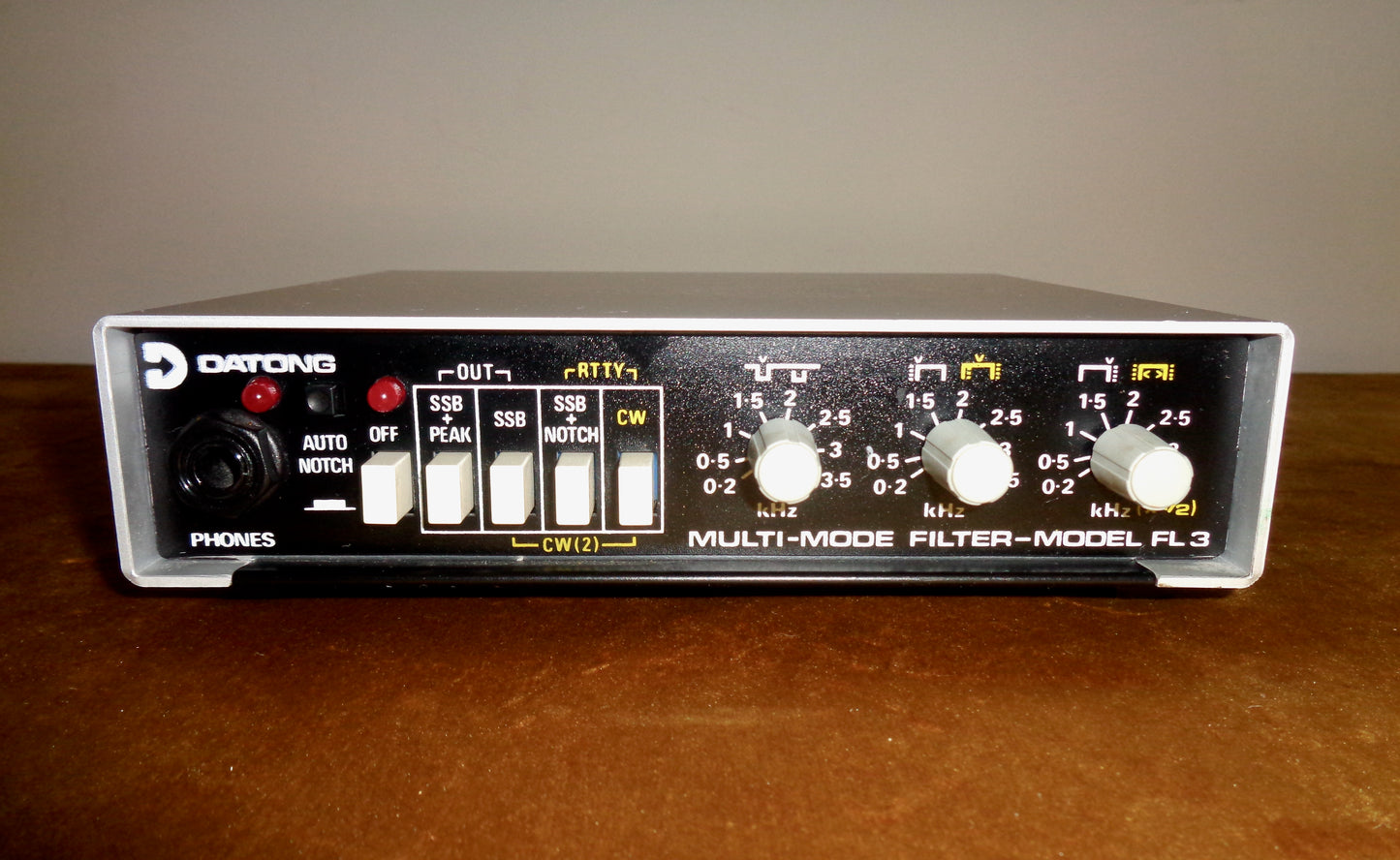

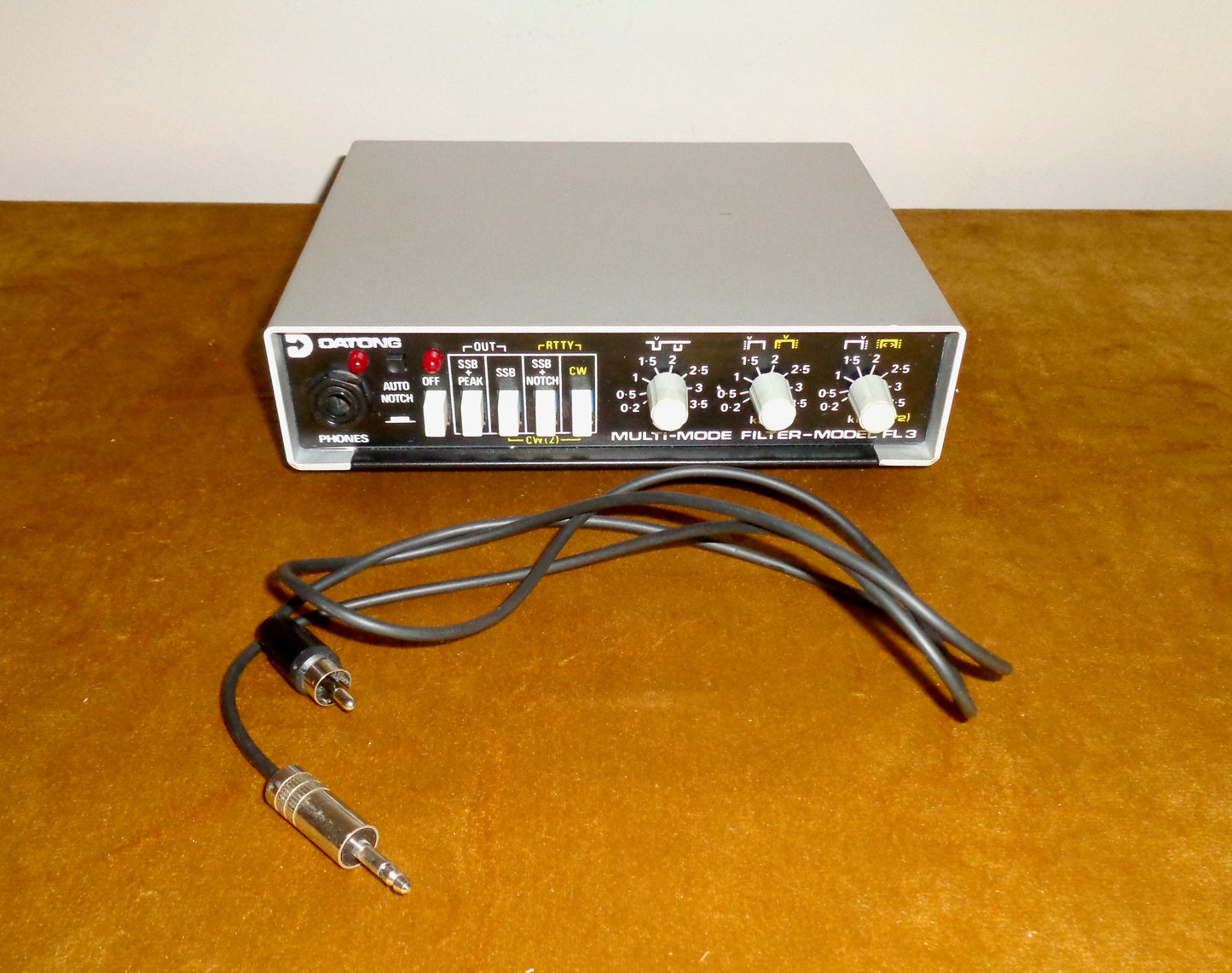

Vintage Datong FL-3 Multi Mode External Audio Signal Filter With Automatic Notch Filter

This small device is Vintage Datong FL-3 Multi Mode External Audio Signal Filter With Automatic Notch Filter. It was designed for use with amateur radio, shortwave receivers and scanners.

Approximate Size: 18.4 x 16.3 x 5.2 cm (including knobs and feet)

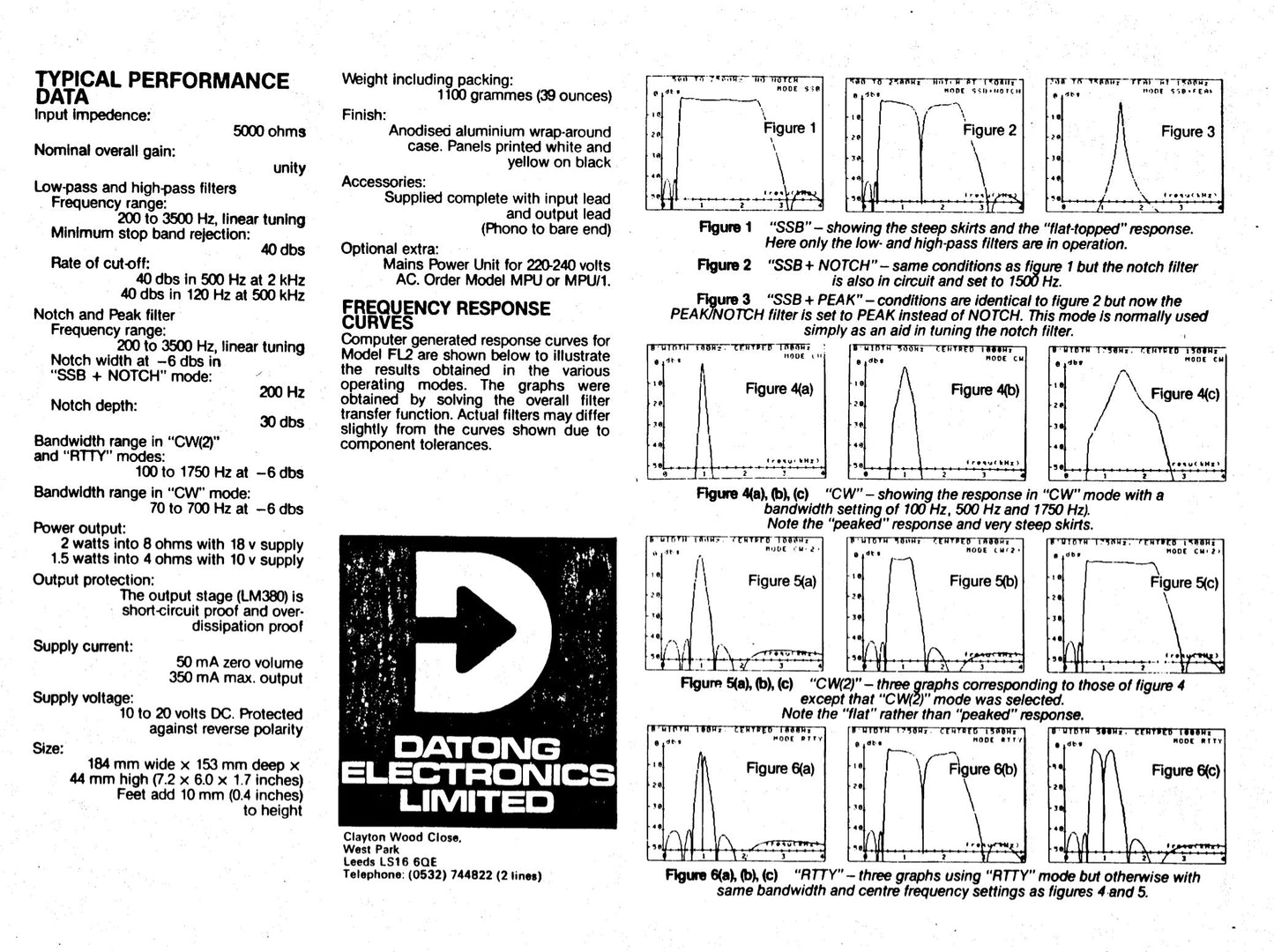

In pretty good cosmetic condition with some surface scuffs and blemishes commensurate with age and use. The specification is appended below:-

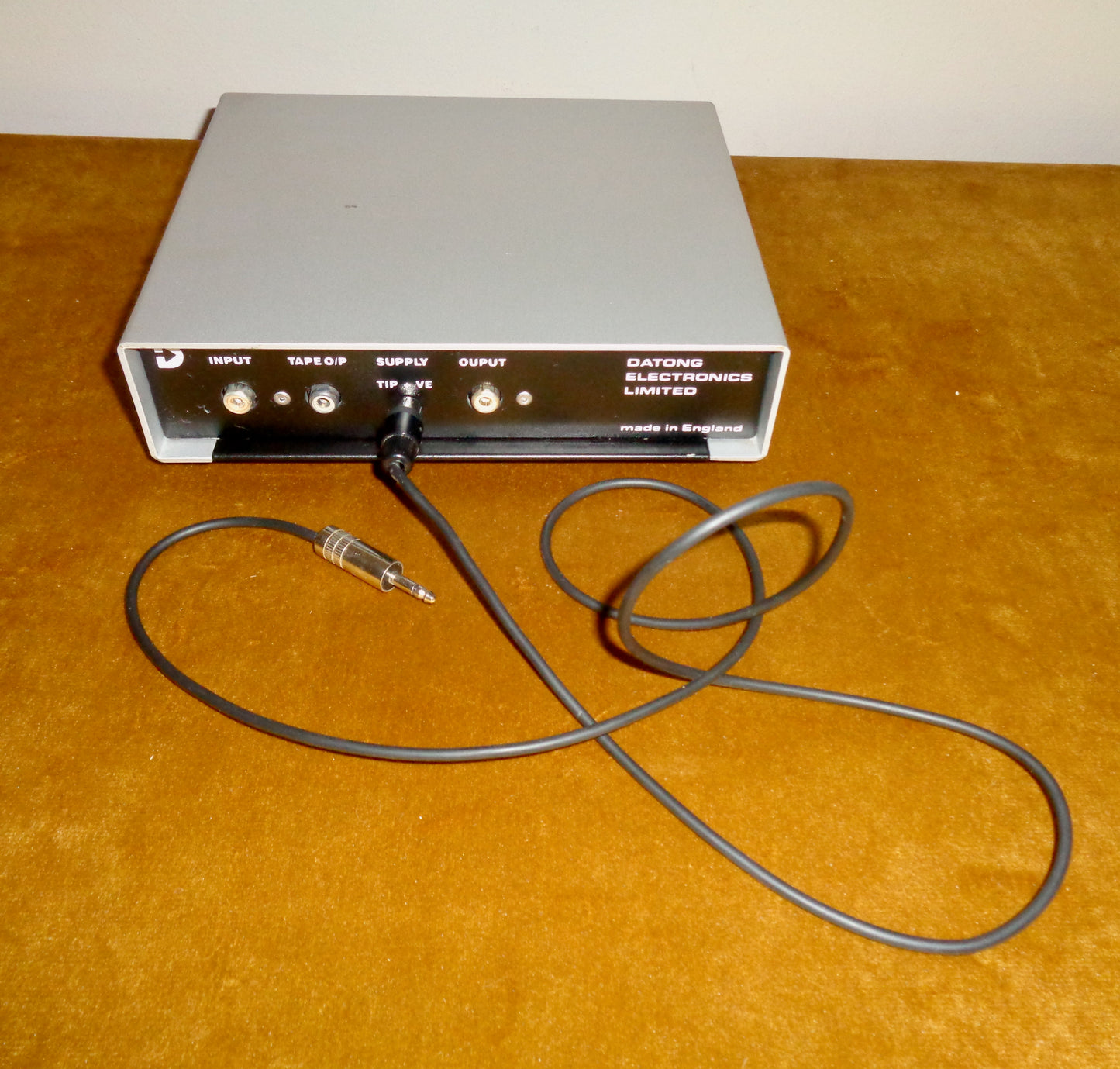

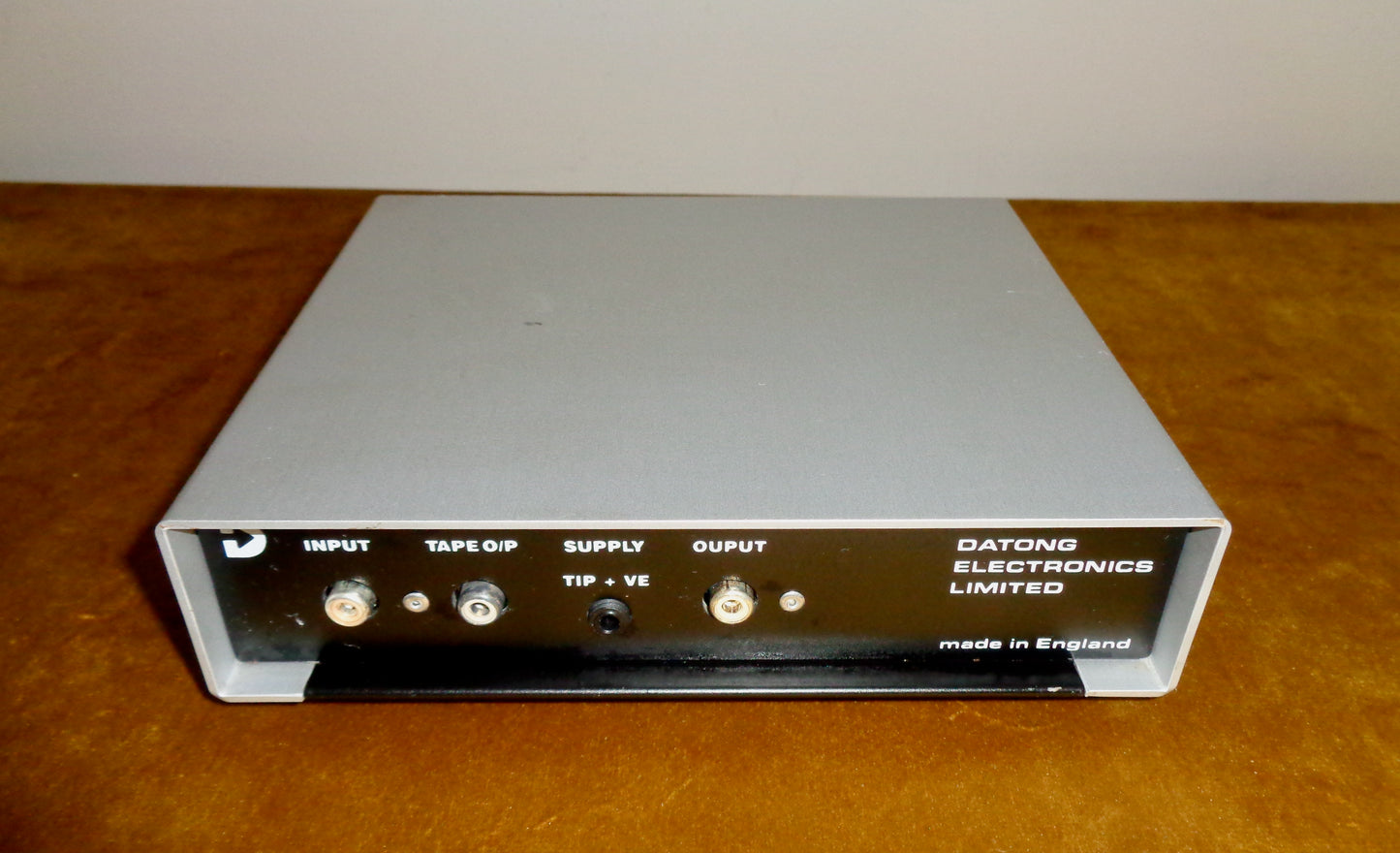

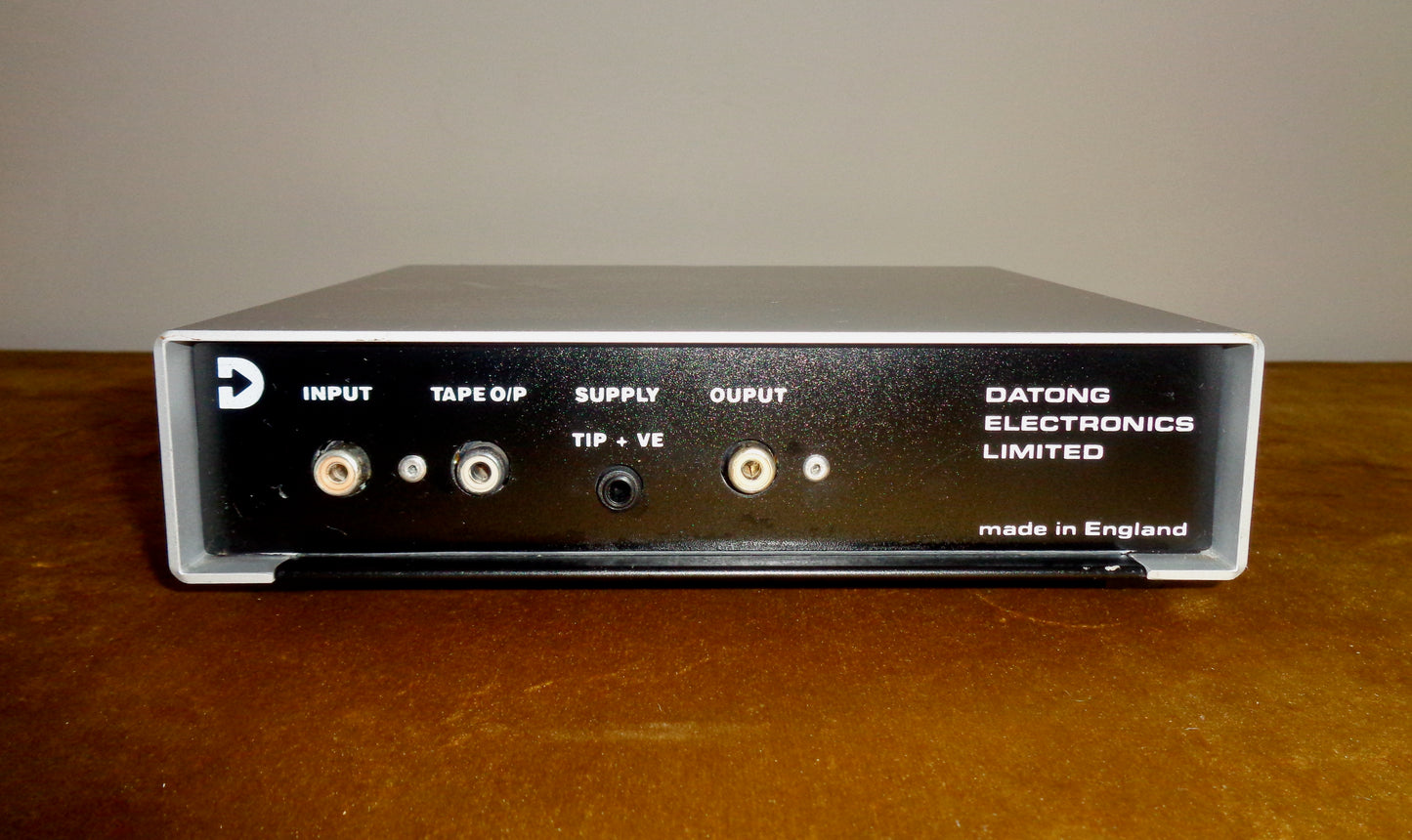

It comprises both an automatic and manual notch filter and adjustable low/high pass filters, a 3.5 mm socket for the power connector (8 - 20 Volts DC), a headphone jack, and three phono sockets.

There are a series of eight buttons allowing selection of the following operating modes:
Power on/off
Auto notch on/off
SSB + Peak
SSB
SSB + NOTCH
CW
CW(2)

Datong products are very well engineered and their quality has stood the test of time.
