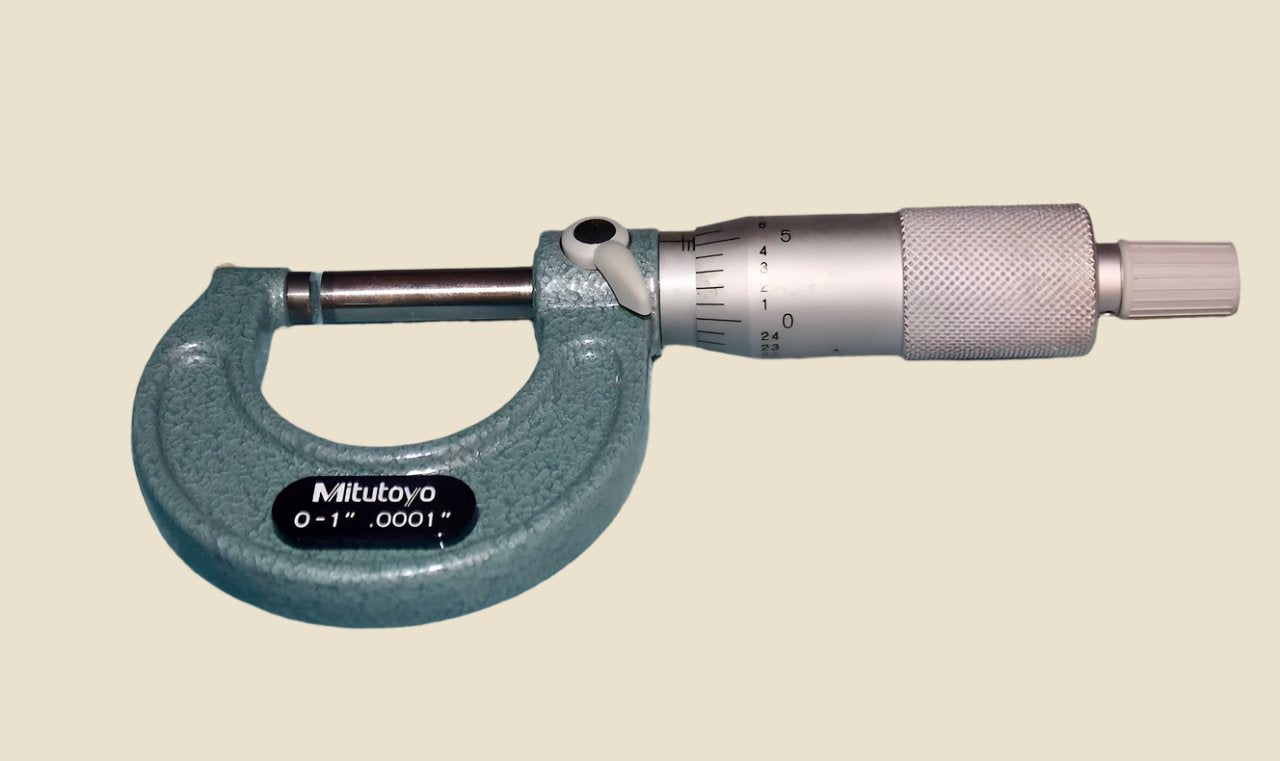

Mitutoyo 103-131 External Micrometer Measuring 0-1 Inch At 0.0001 Inch Increments

This preowned Mitutoyo 103-131 External Micrometer Measuring 0-1 Inch At 0.0001 Inch Increments is in pretty good used condition. It was Made in Japan by Mitutoyo Corporation, Kanagawa.

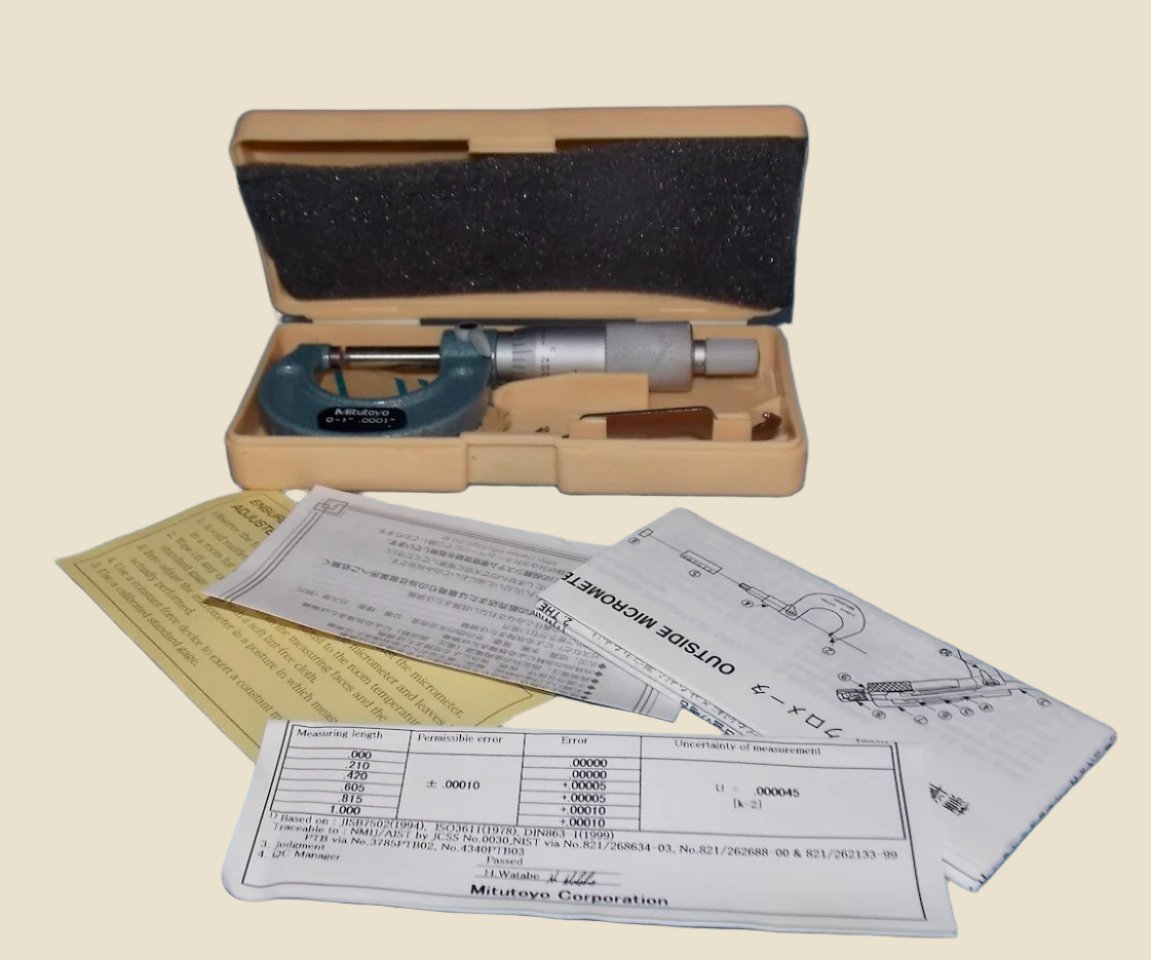

With a few scuffs and surface blemishes, the micrometer presents in its original, but discoloured, hard yellow/brown plastic case with an instruction leaflet, certificate of inspection, and the one year warranty certificate (now expired).

The micrometer has the following specification:-

• Analogue Micrometer designed for outside use
• Imperial: measures in inches
• Range 0-1"
• Scale Grade: 0.0001"
• Maximum Permissible Error J MPE:- ±0.0001"
• Measuring face: Carbide-tipped, micro-lap finish
• Measuring spindle: With spindle lock and spindle pitch of 0.5 mm
• Scale: Thimble and sleeve satin chrome finish
• Measuring force: 5 - 10 N
• Flatness: 0.000024"
• Parallelism: 0.00008"
