MFJ-259B HF/VHF SWR Analyzer

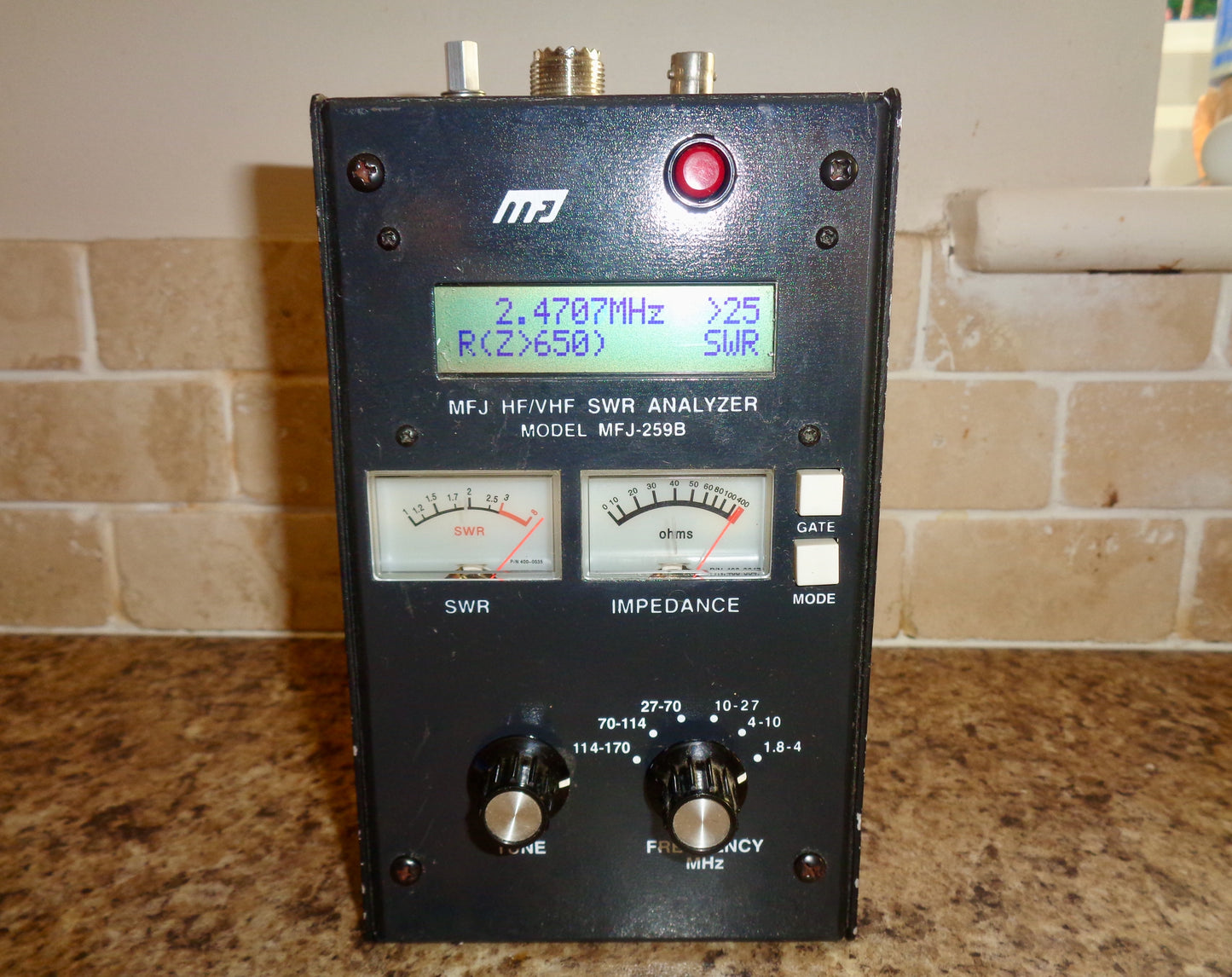

This is a preowned MFJ-259B HF/VHF SWR Analyzer manufactured by MFJ Enterprises Inc, Starkville, MS, USA.

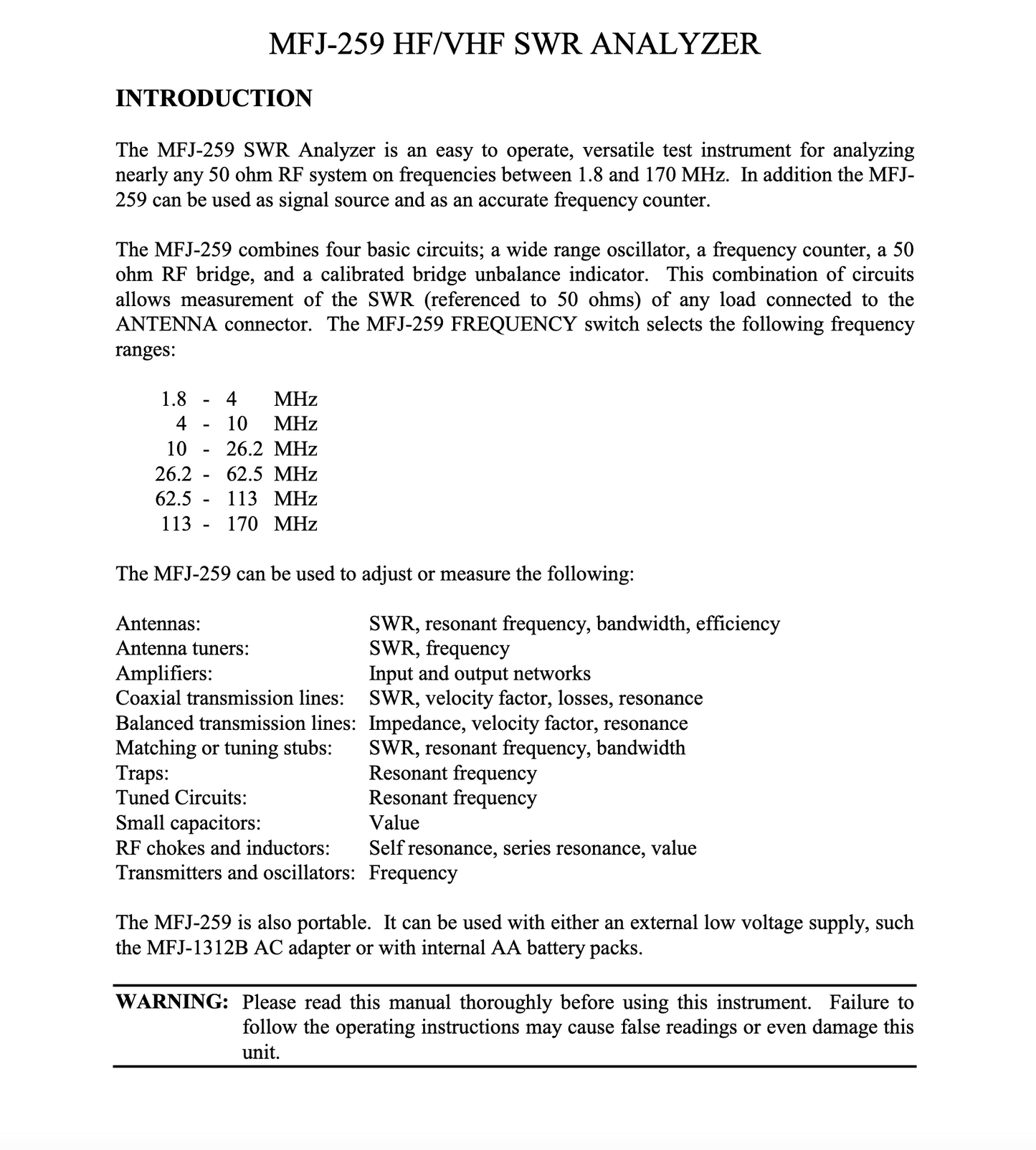

In fairly good condition with some scuffs and scratches commensurate with use.  It appears to be in working condition and is sold without a box or instructions. The latter are available to download from the internet, and one of the images contains the introduction.

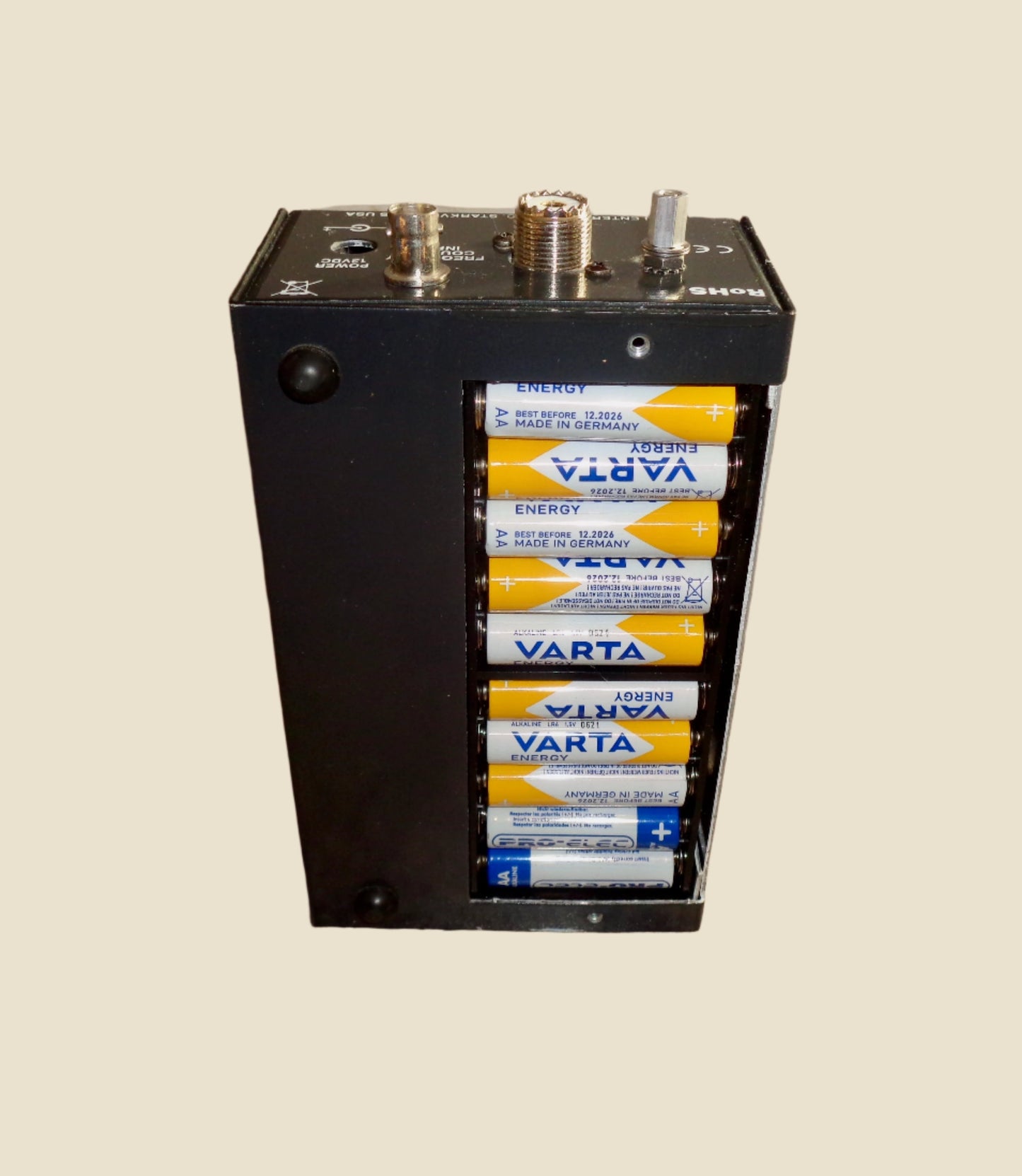

A small portable machine, the SWR meter runs off ten (10) AA batteries or an AC adapter (not included). Batteries will not be supplied due to the problems with shipping.

Approximate Size (WHD): 10.5 x 18 x 8cm (including knobs and connectors)

Summary Specification:

• Measures SWR and impedance across a frequency range 1.8 to 170 MHz

• Impedance measured as series resistance and reactance (R+jX) or as magnitude (Z) and phase (degrees)
• Determines velocity factor, coax cable loss, and the length of the coax
• Inductance measured in microhenries (µH) and capacitance in picofarads (pF)

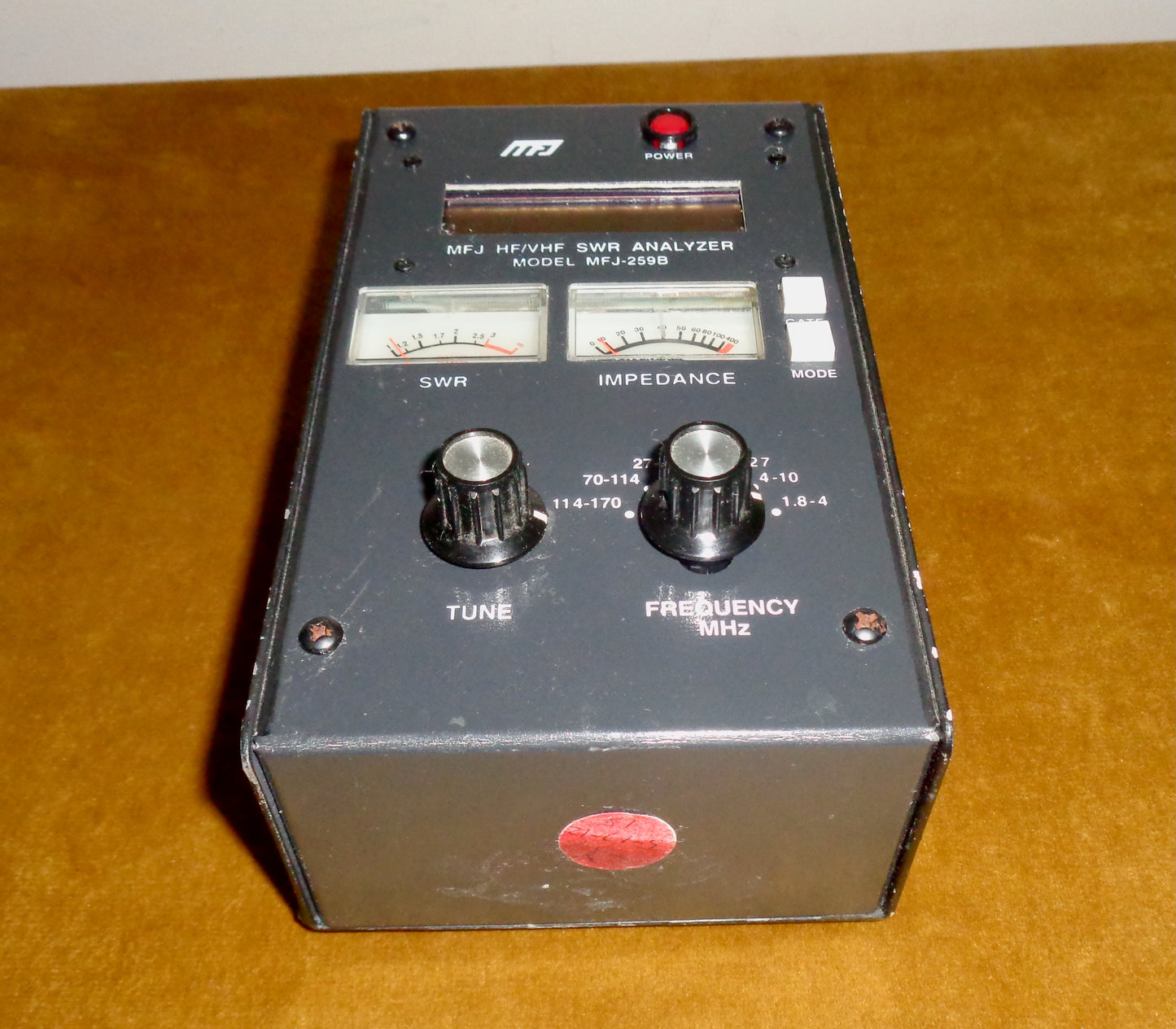

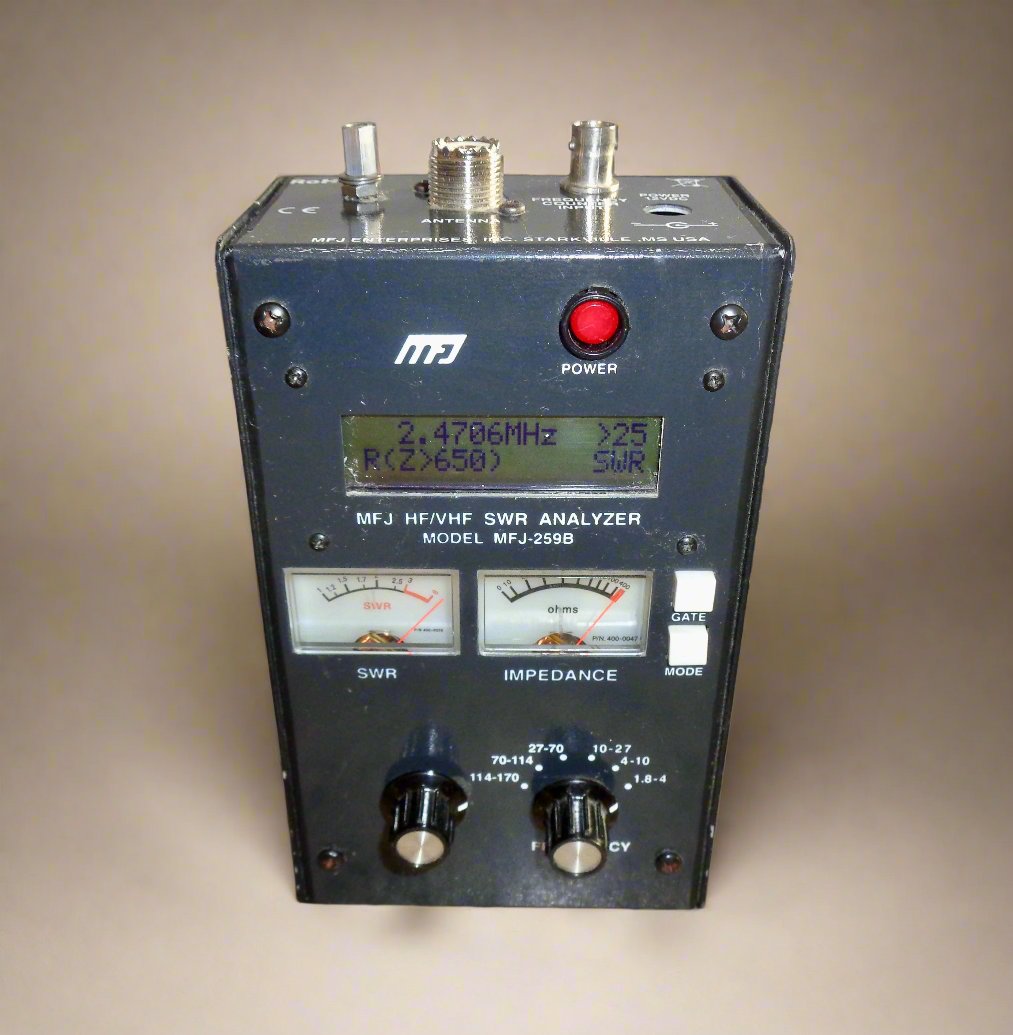

• Utilises a two-line LCD screen alongside side-by-side meters
• Frequency Counter

Please click on the following link for more amateur radio equipment.

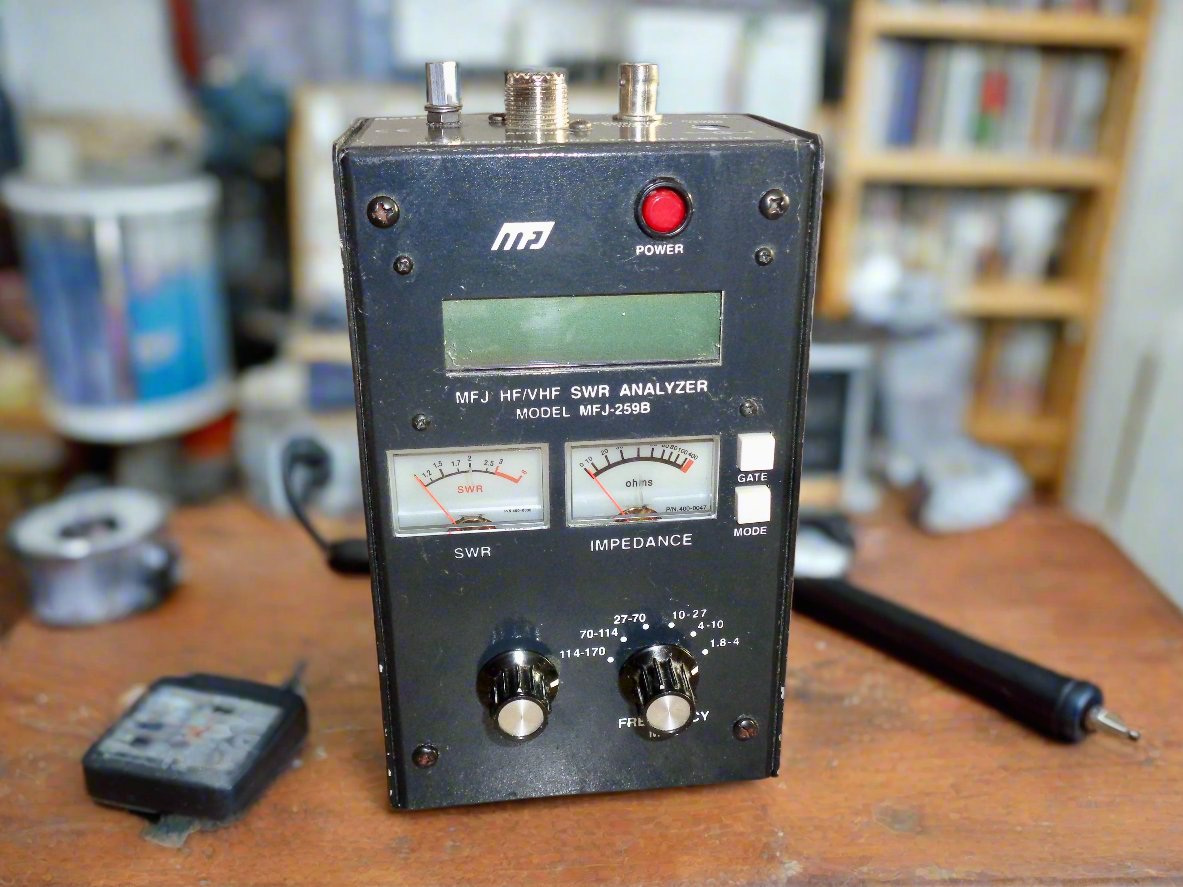

NB: Any items showing with the meter are for illustrative purposes only and are not included in the sale.
