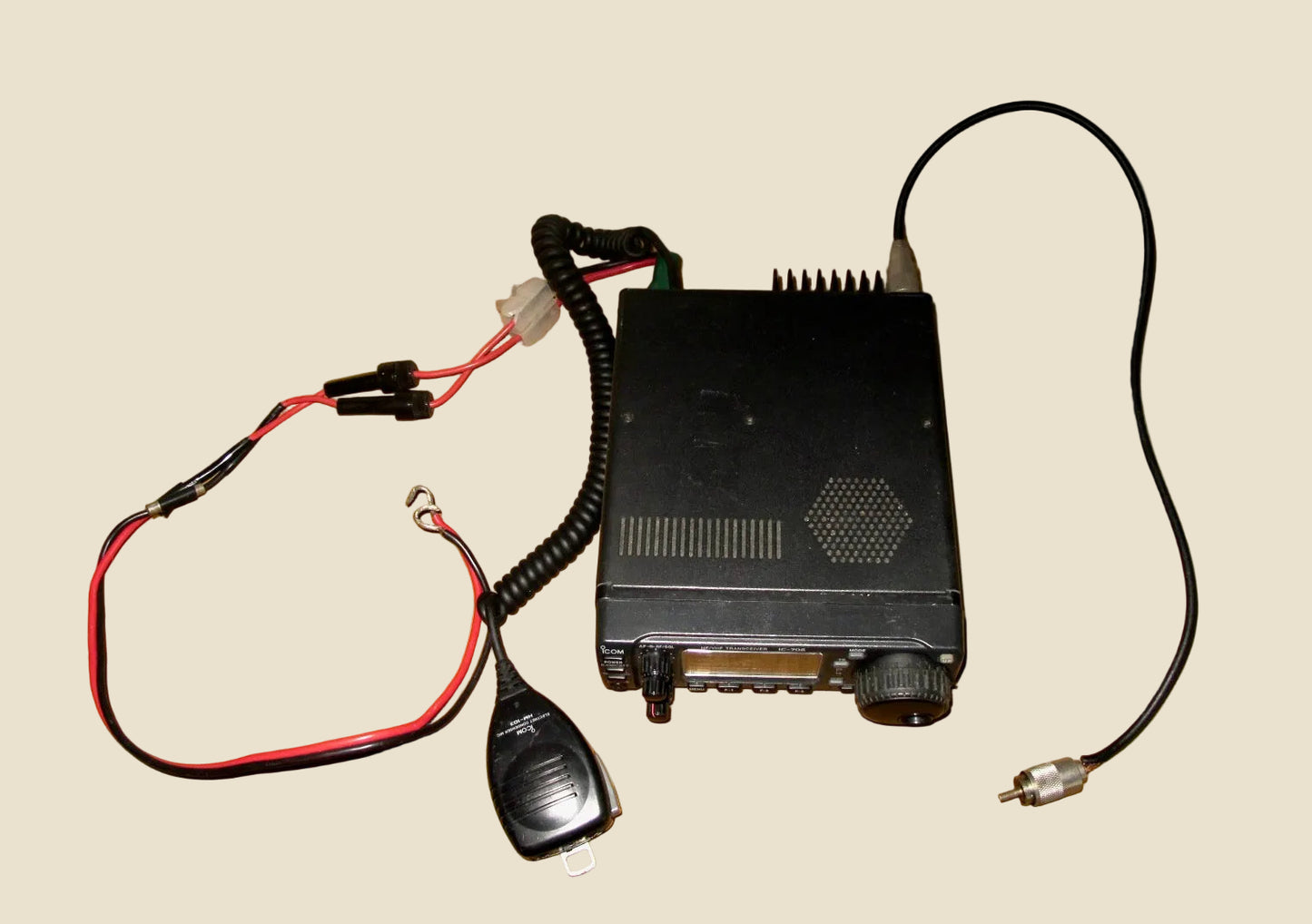

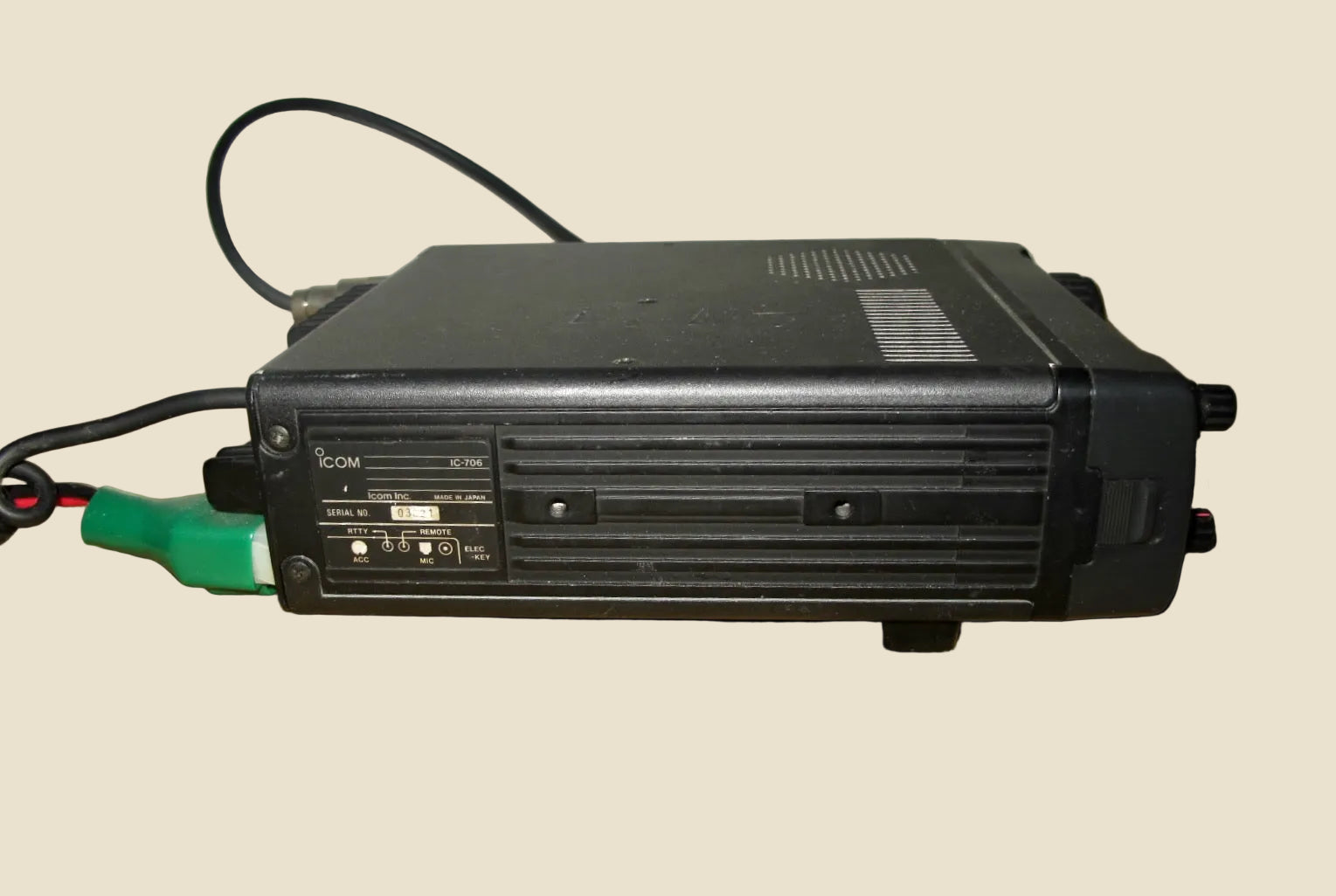

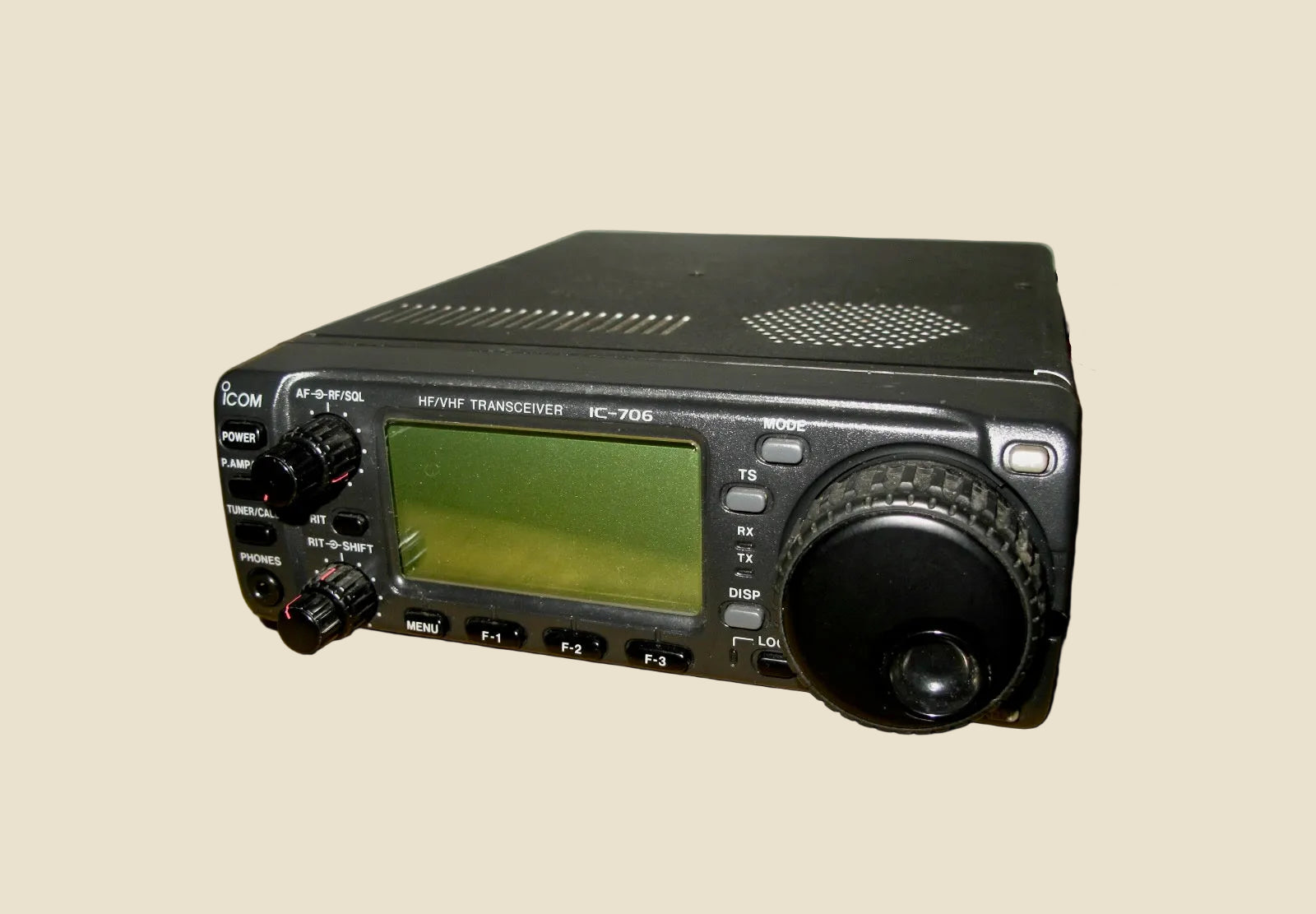

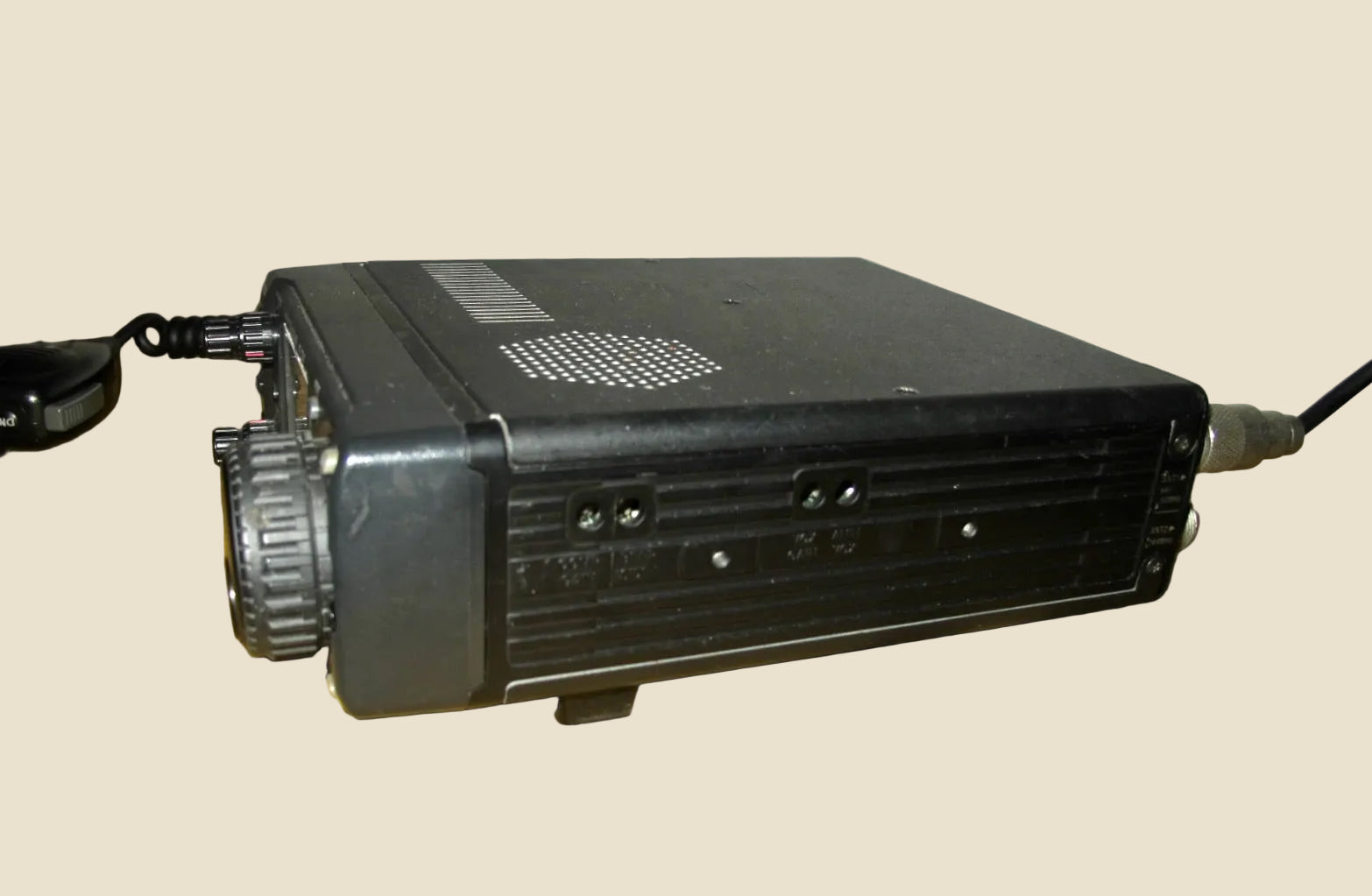

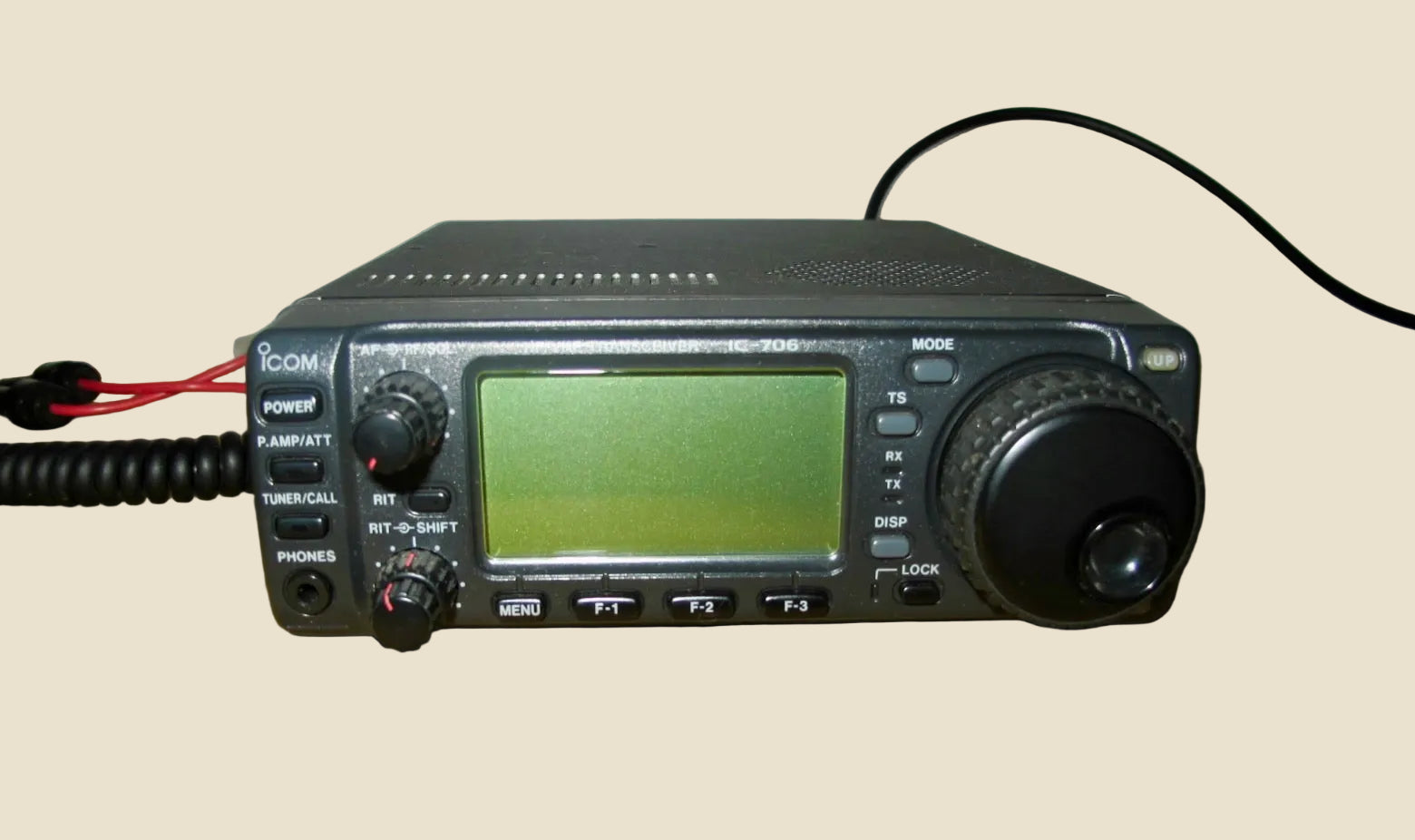

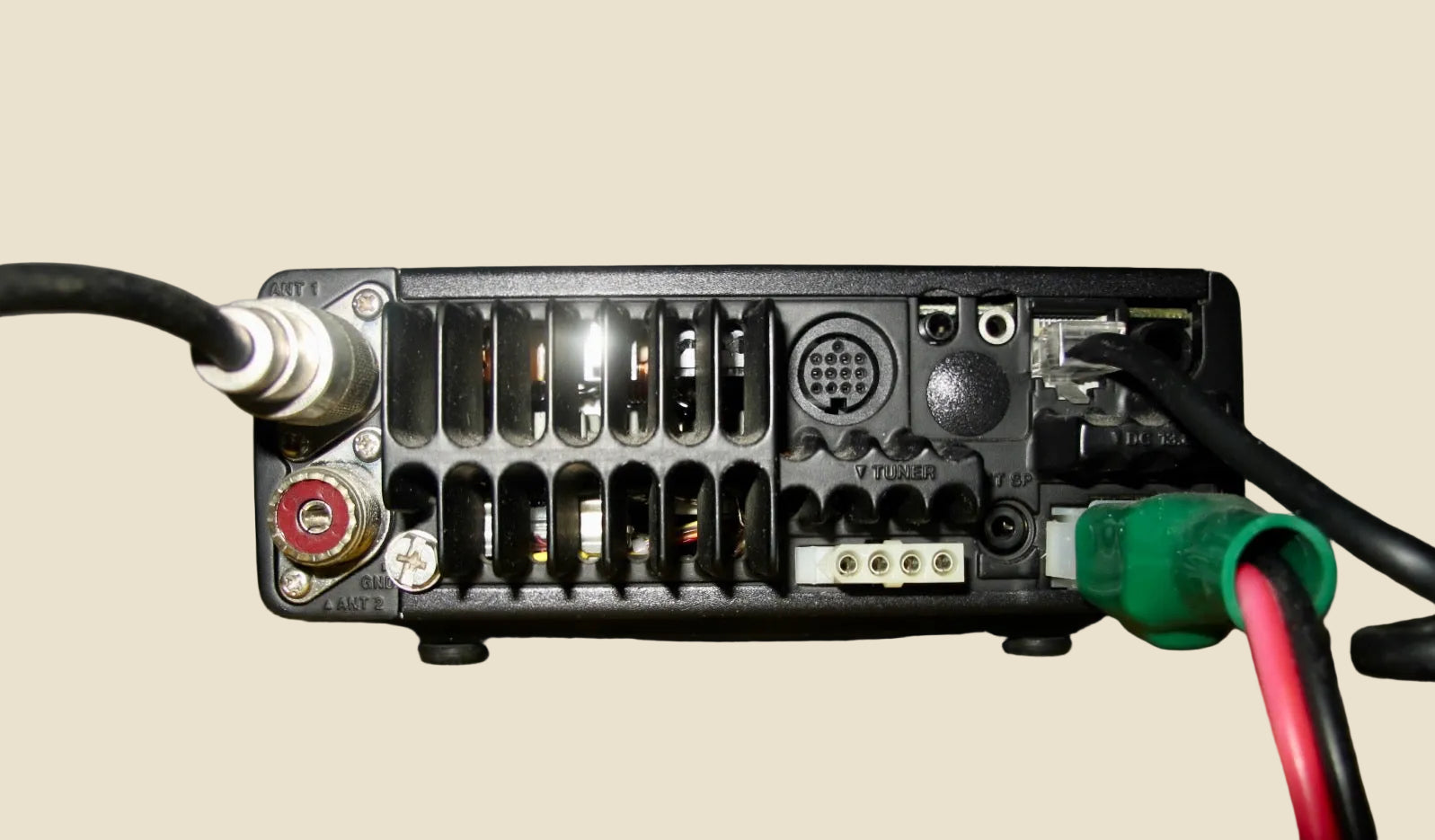

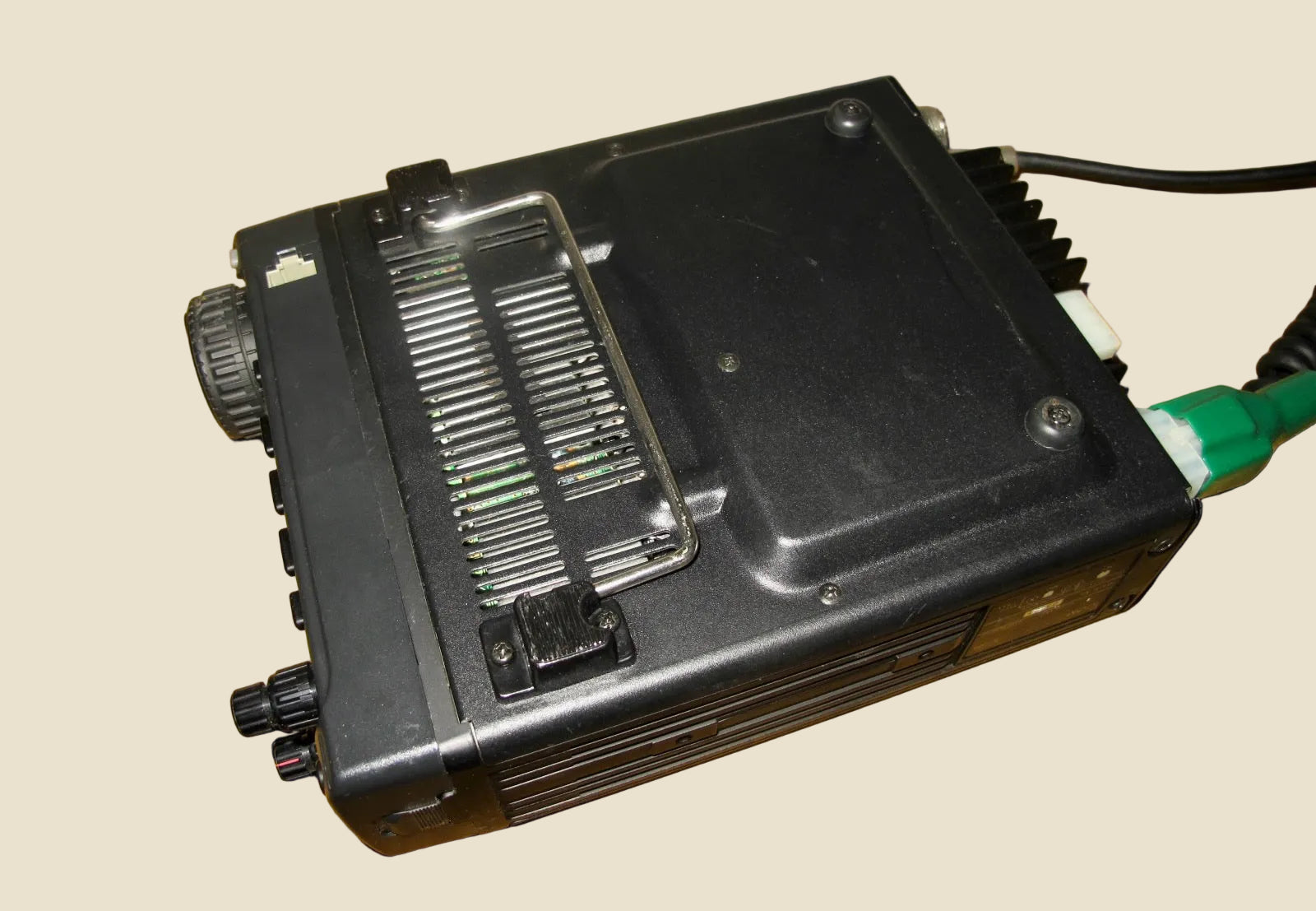

Icom IC-706  HF Mobile Transceiver With HM103 Microphone

A preowned, 1990s, Icom IC-706 HF Mobile Transceiver With HM103 Microphone.

Made from metal, this is the original version of the Icom IC706 series and comes without a box or instructions. In pretty good cosmetic condition, with a few surface blemishes from use and storage. The transceiver has not been tested / used recently.

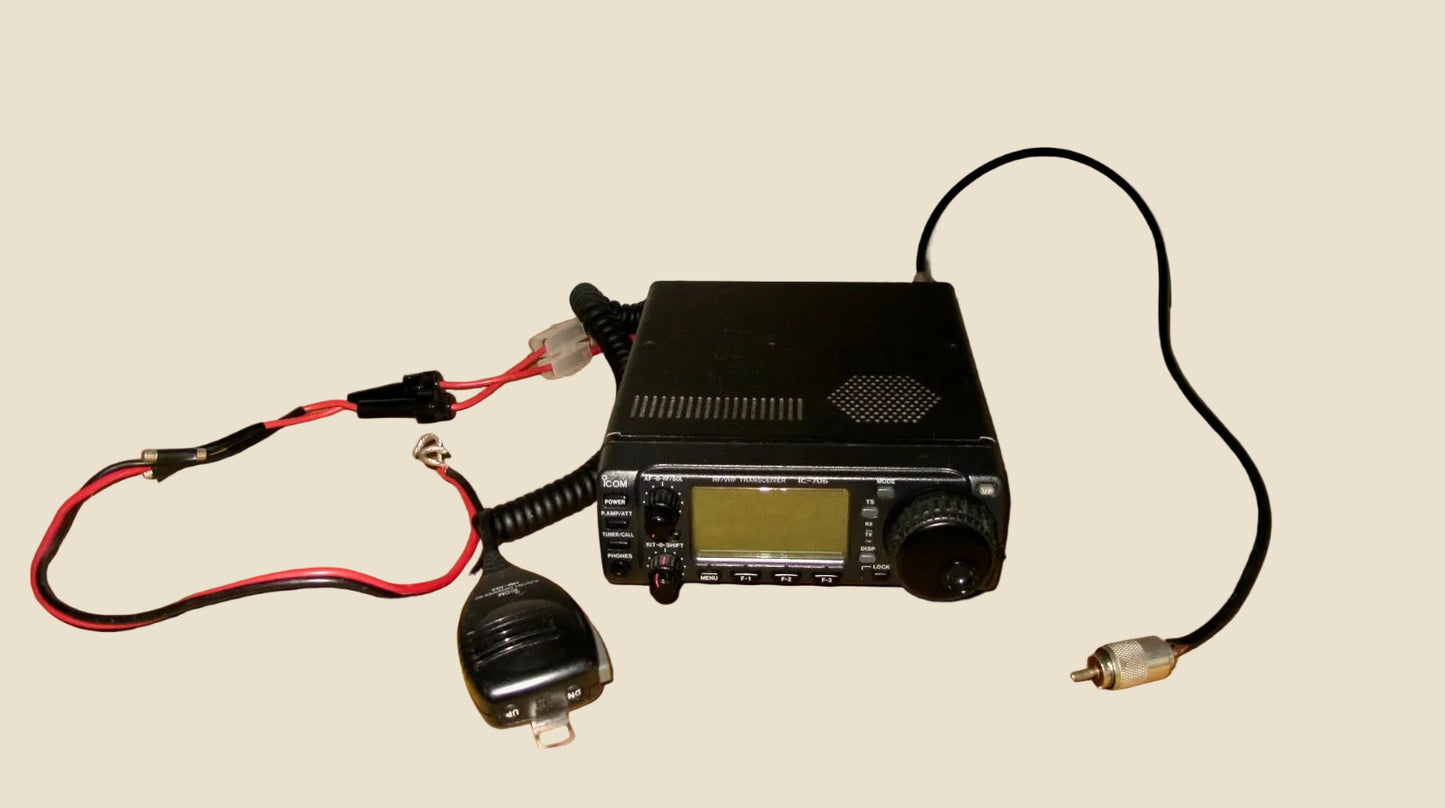

It is sold with some connectors and a handheld electret condenser HM103 Microphone with up/down button. In pretty good condition with some blemishes commensurate with age and use.

Instruction manuals are available on the internet:

Outline Icom-706 Specification:

• HF/6m/2m all mode transceiver
• Base or mobile
• RX: 30 kHz-200 MHz
• TX: all HF amateur bands + 6 meter and 2 meter amateur bands
• Output power: 100 W HF and 6m (40 W AM), 10 W on 2m (4 W AM)
• Mode: LSB/USB, CW, RTTY (FSK). AM, FM, WFM (receive only)
• Number of memory channels: 102 (99 regular, 2 scan edges and 1 call)
• Antenna connector: 2 x SO-259 (one for HF/50 MHz, the other for 144 MHz)
• Power Supply Requirement: 13.8 V DC ±15%, 20 A
• Frequency resolution: 1 Hz minimum
• Current Drain (at 13.8 V DC):

  Receive squelched: 1.7 A

  Receive max. audio output: 1.9 A

• Approximate Dimensions: 16.7(W) x 5.8(H) x 20.0(D) cm / 6.6(W) x 2.28(H) x 7.88(D) inches)-projections not included
• Weight: 2.5 kg

A nice accessory for your radio shack!
