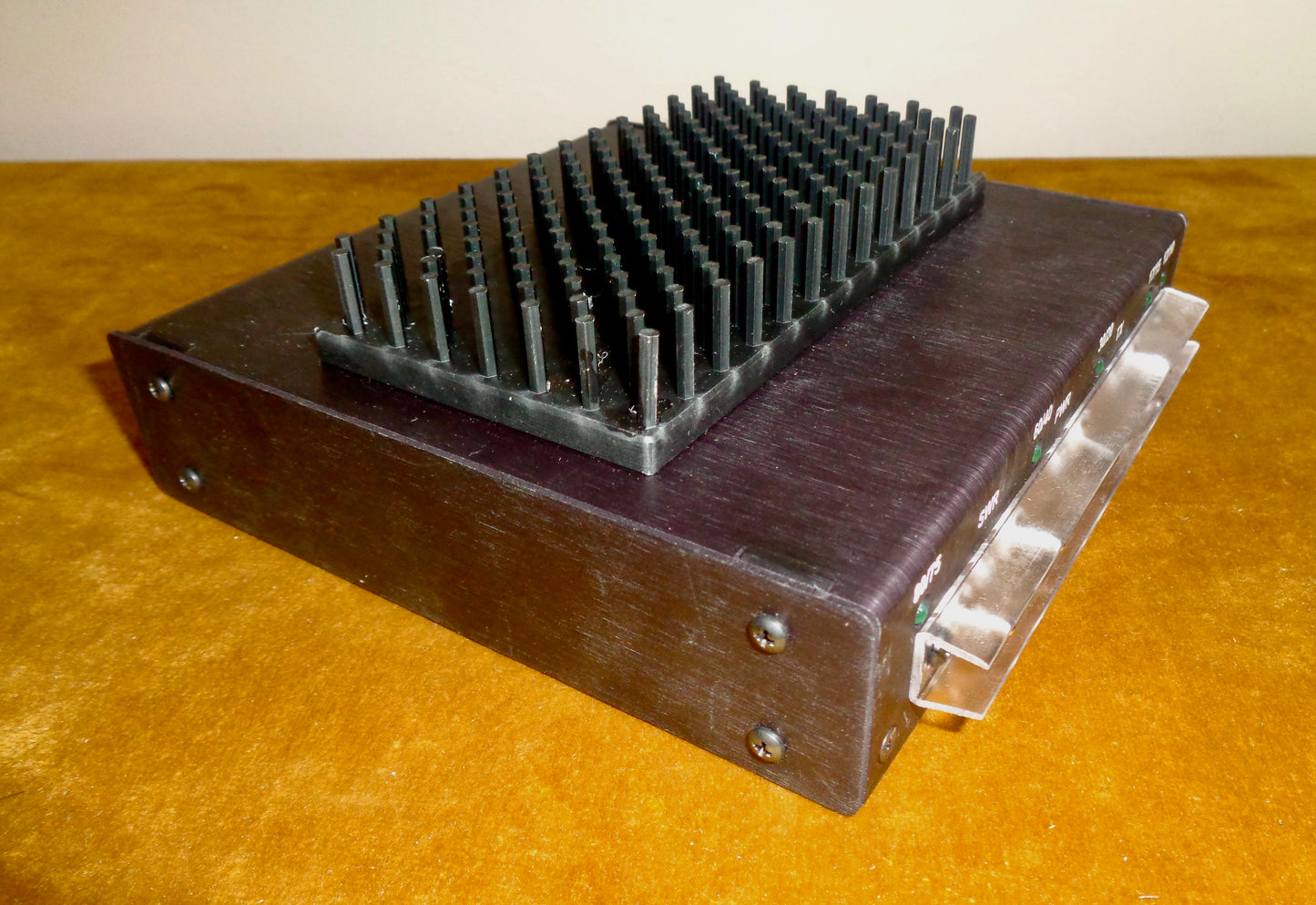

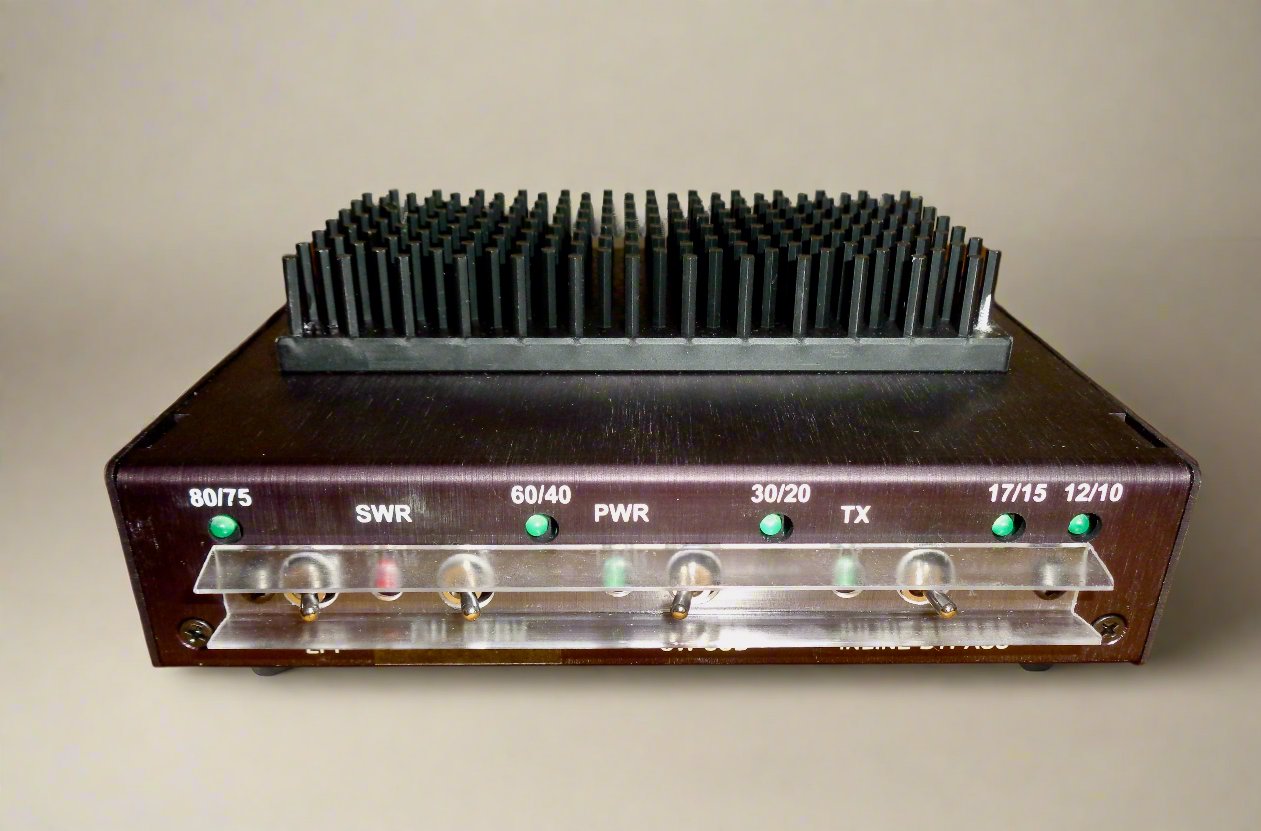

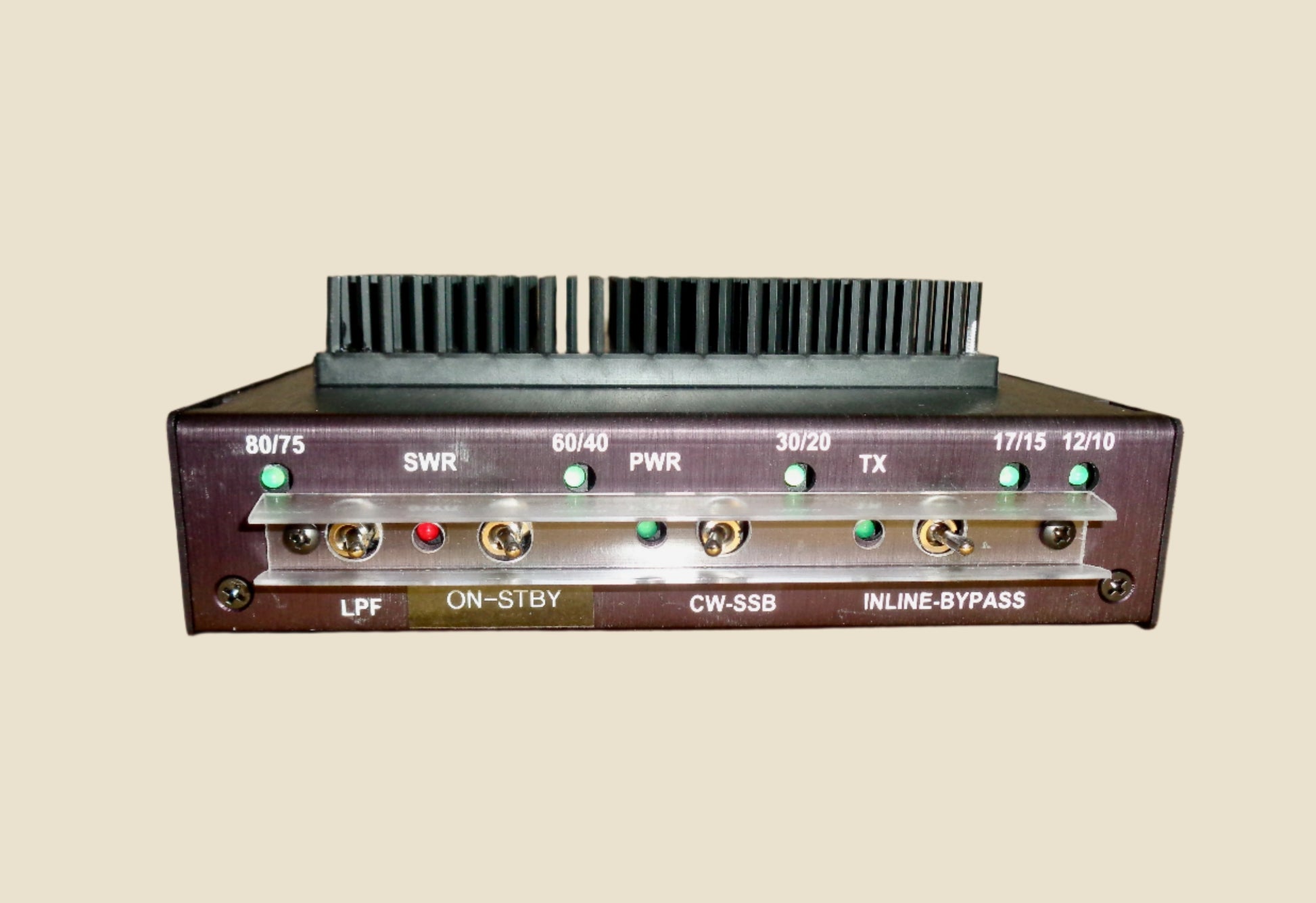

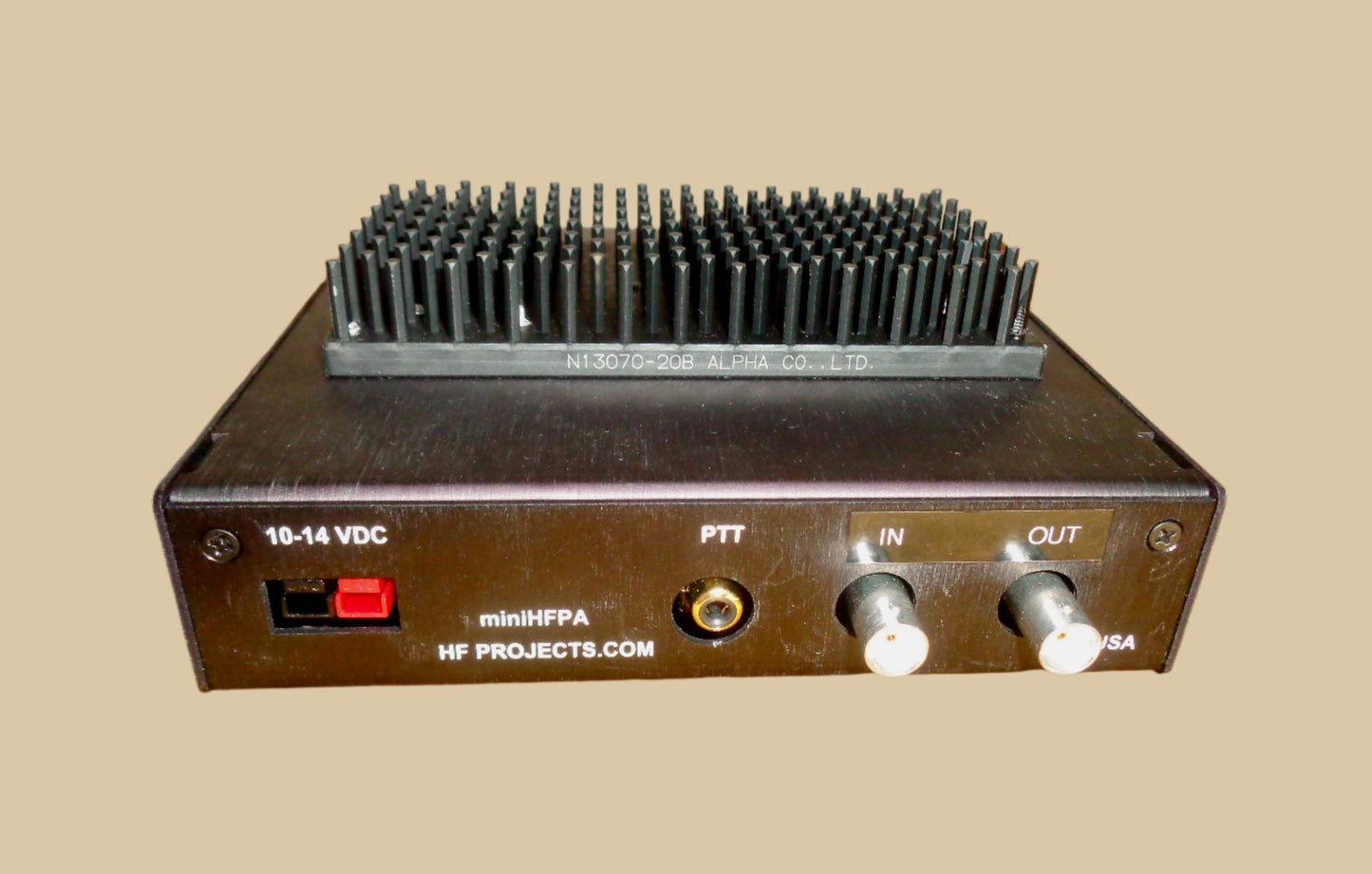

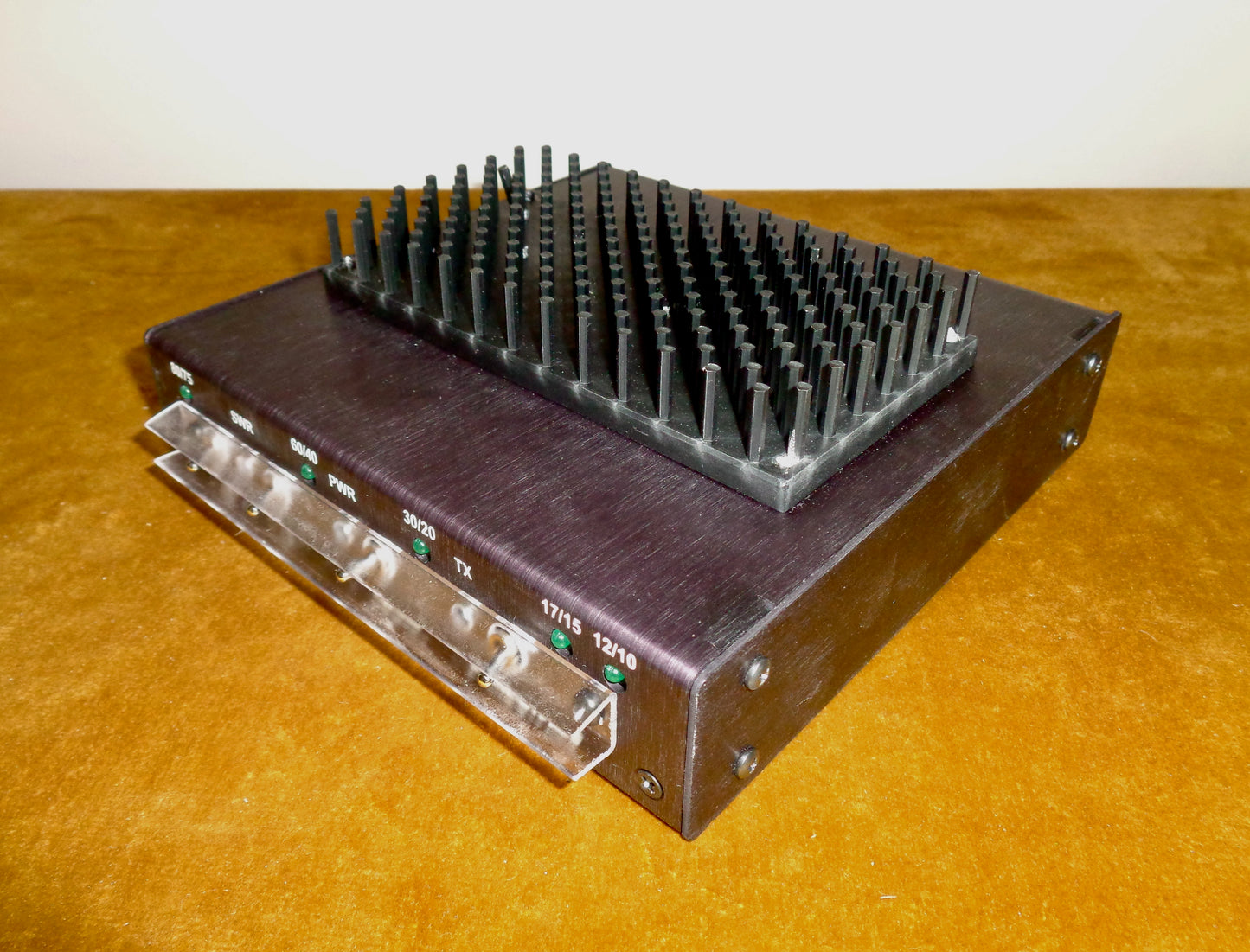

HF Projects MiniHFPA R2 Amplifier 30-35W Built Kit. Accessories And Construction Manual

A HF Projects MiniHFPA R2 Amplifier 30-35W Built Kit. Accessories And Construction Manual are in included. In very good condition, the whole ensemble cost £475.96 as a kit in 2017/18.

A 5th Generation HF Packer amp, built by the previous owner, it was tested on the bench but not outdoors.

Purchased from (Virgil Stamps K5OOR), HF Projects, Houston Texas, U.S.A. from the first production batch of 50 units and constructed by the previous owner except for the coils (transformers) and Low Pass Filters which were ordered ready built.

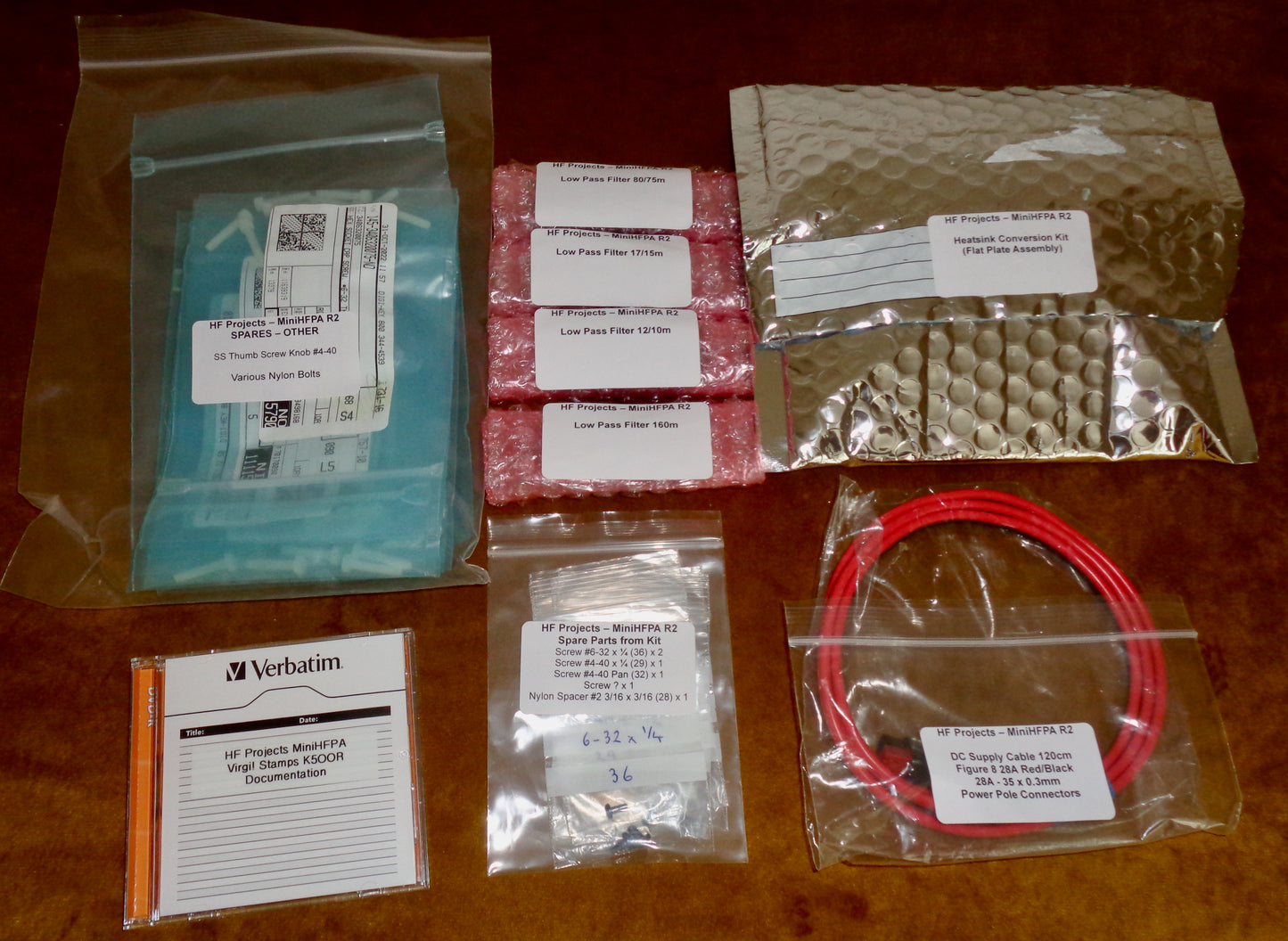

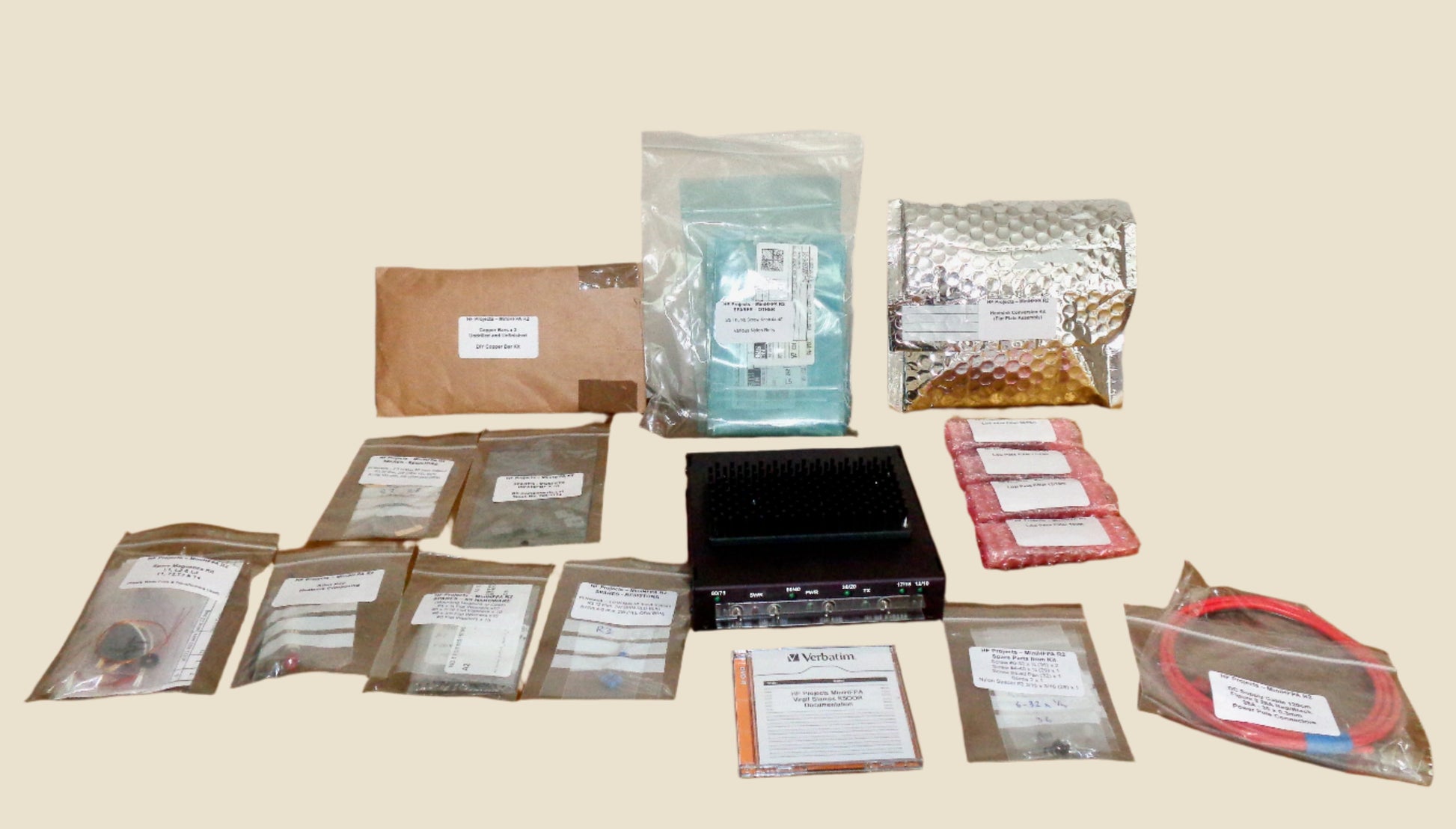

List of Items include:-

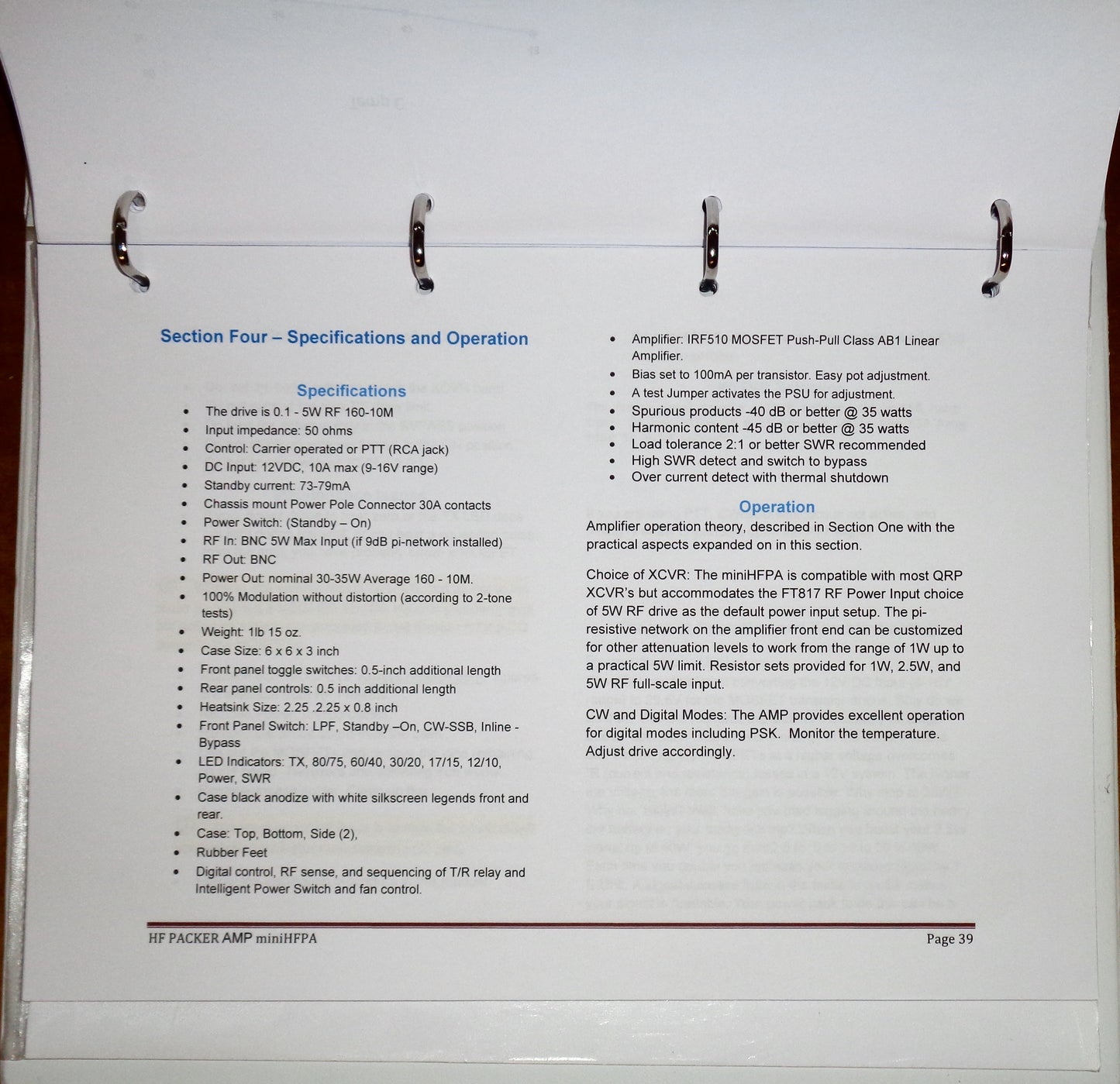

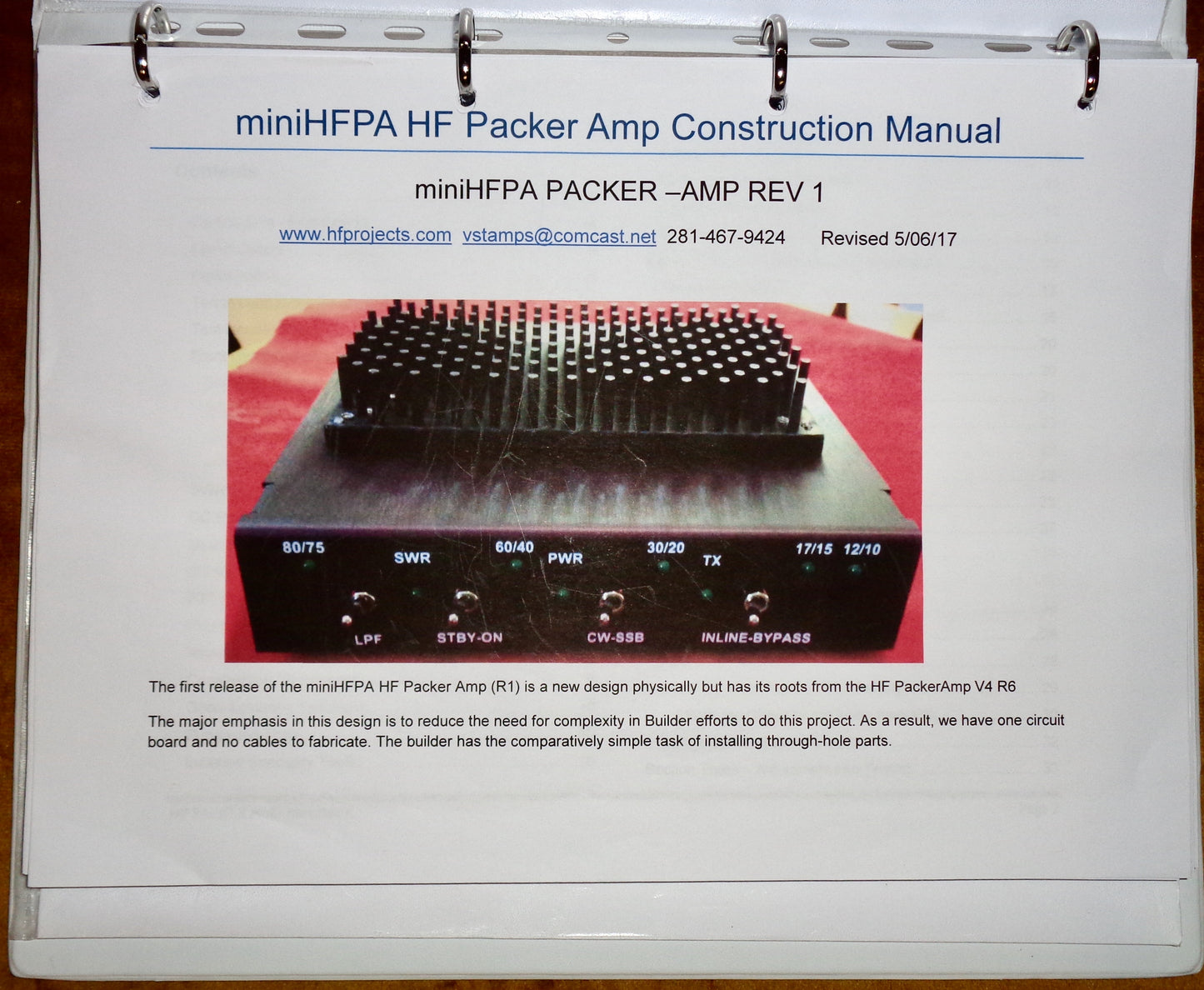

• A 45-page Construction Manual With Schematics, Graphs, and Photographs

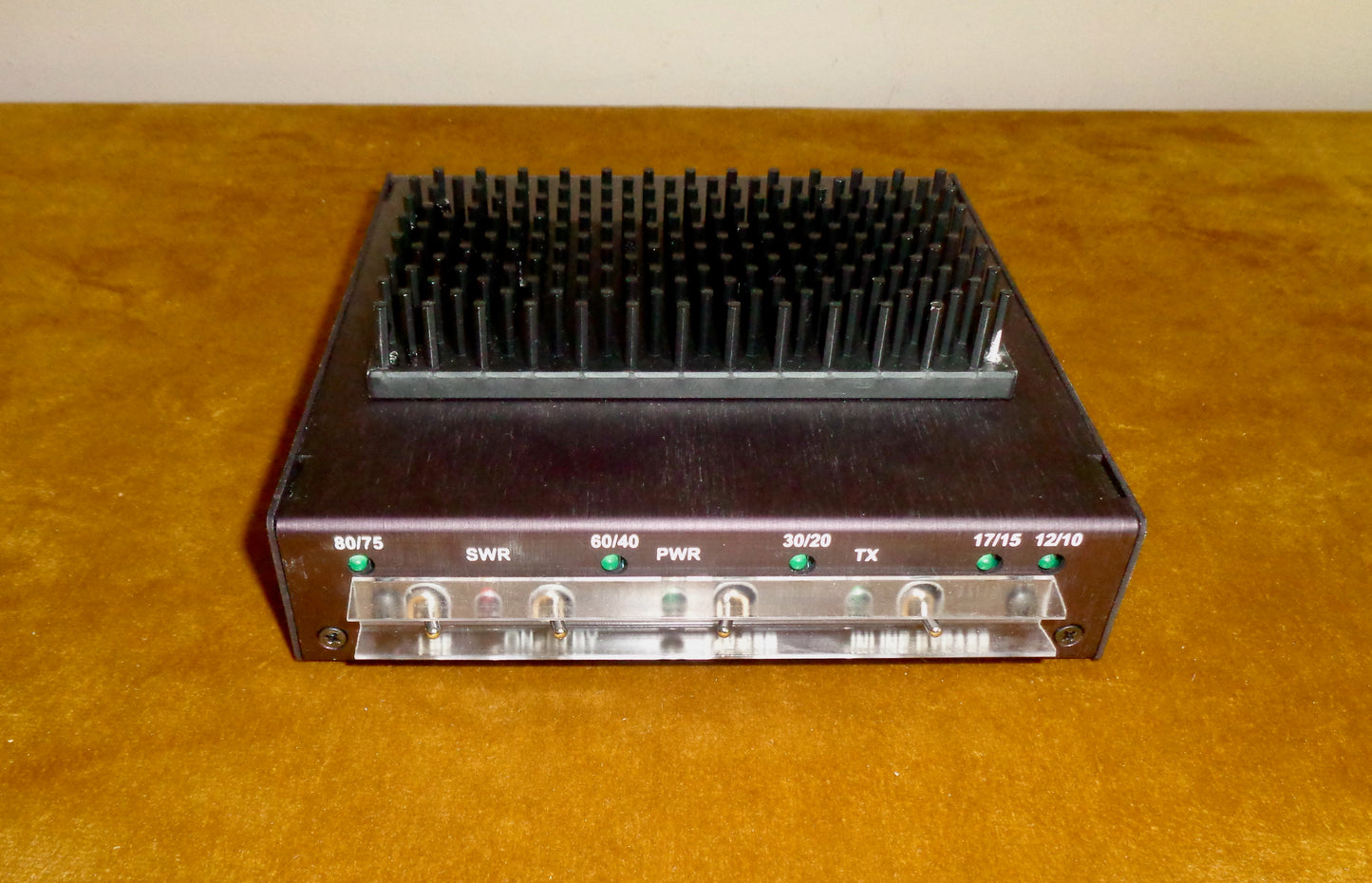

• HF Projects MiniHFPA R2 Amplifier – Built & Tested by previous owner
• Low Pass Filters 160m, 80/75m, 60/40m, 30/20m, 17/15m & 12/10m
• Switch Guard and PI Network (5.0 W Max RF Input (standard) fitted)
• HF Projects MiniHFPA Amplifier – Heatsink Conversion Kit

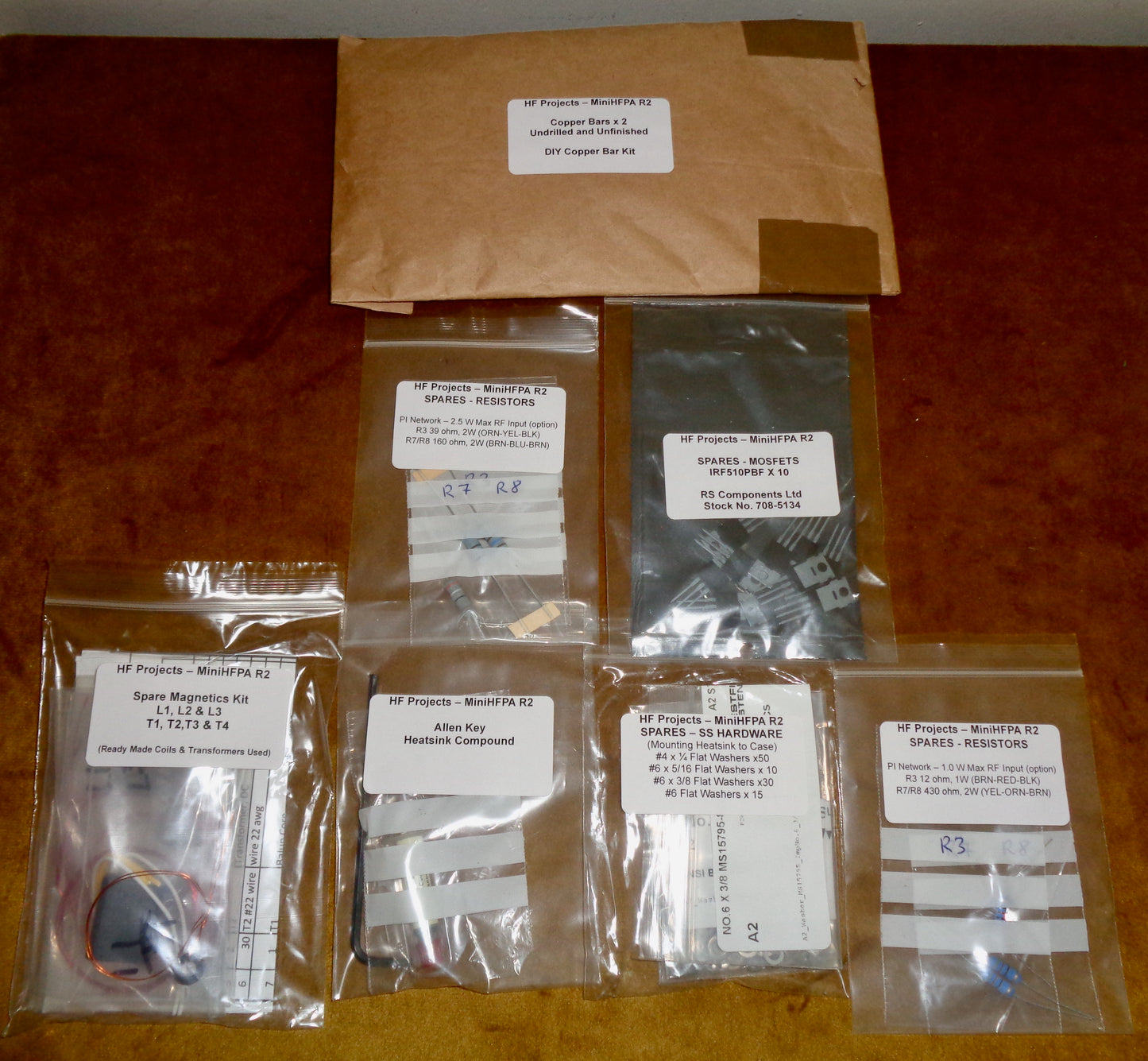

• Copper Bar Kit - Copper Bar x 2 + Nylon Hardware (To be machined & fitted)
• Magnetics Parts – Inductors & Transformers (Ready Built Ones Used)
• Spare Parts & Extra Hardware including new MOSFETs.

A great buy at less than half the original price with all the additional components!
