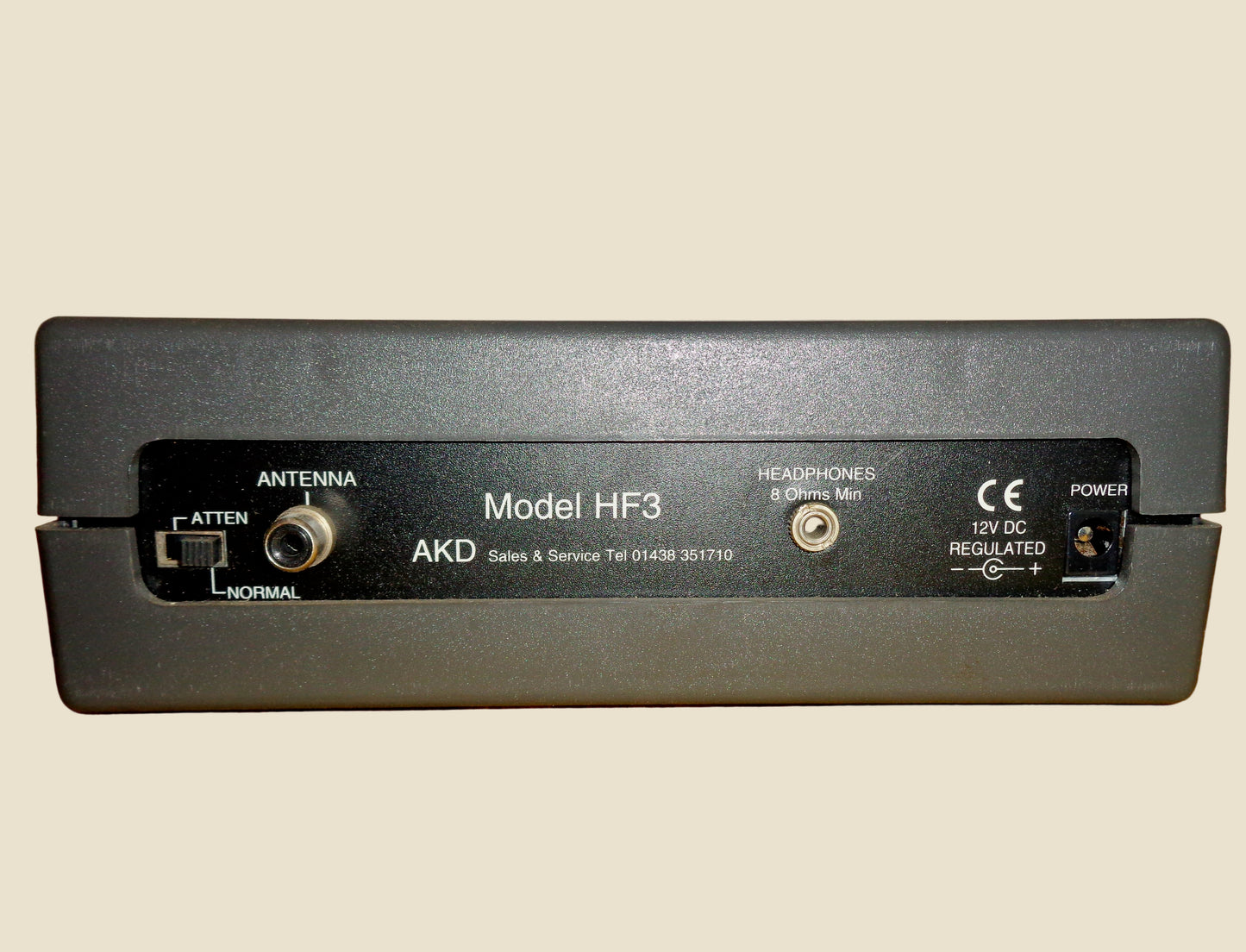

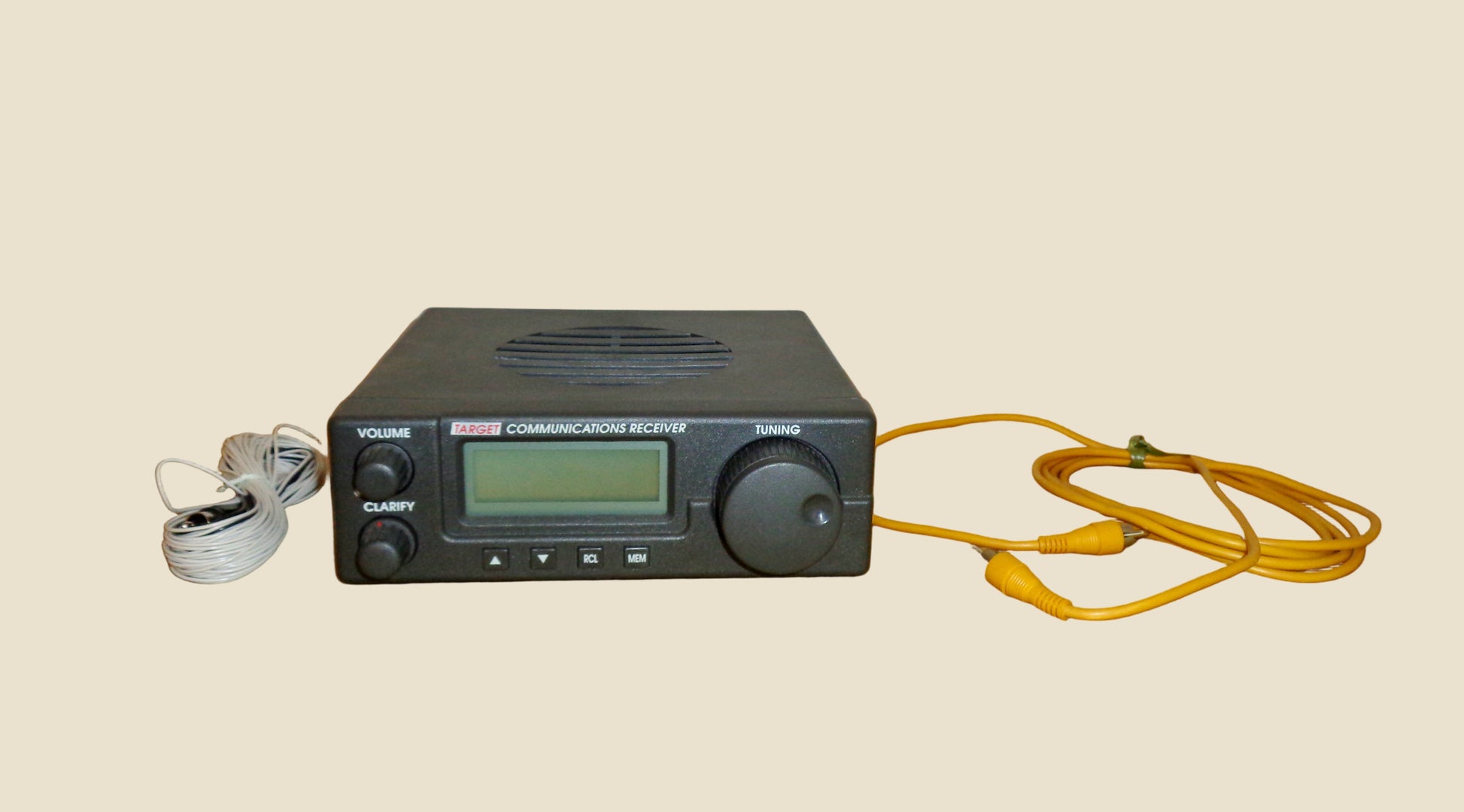

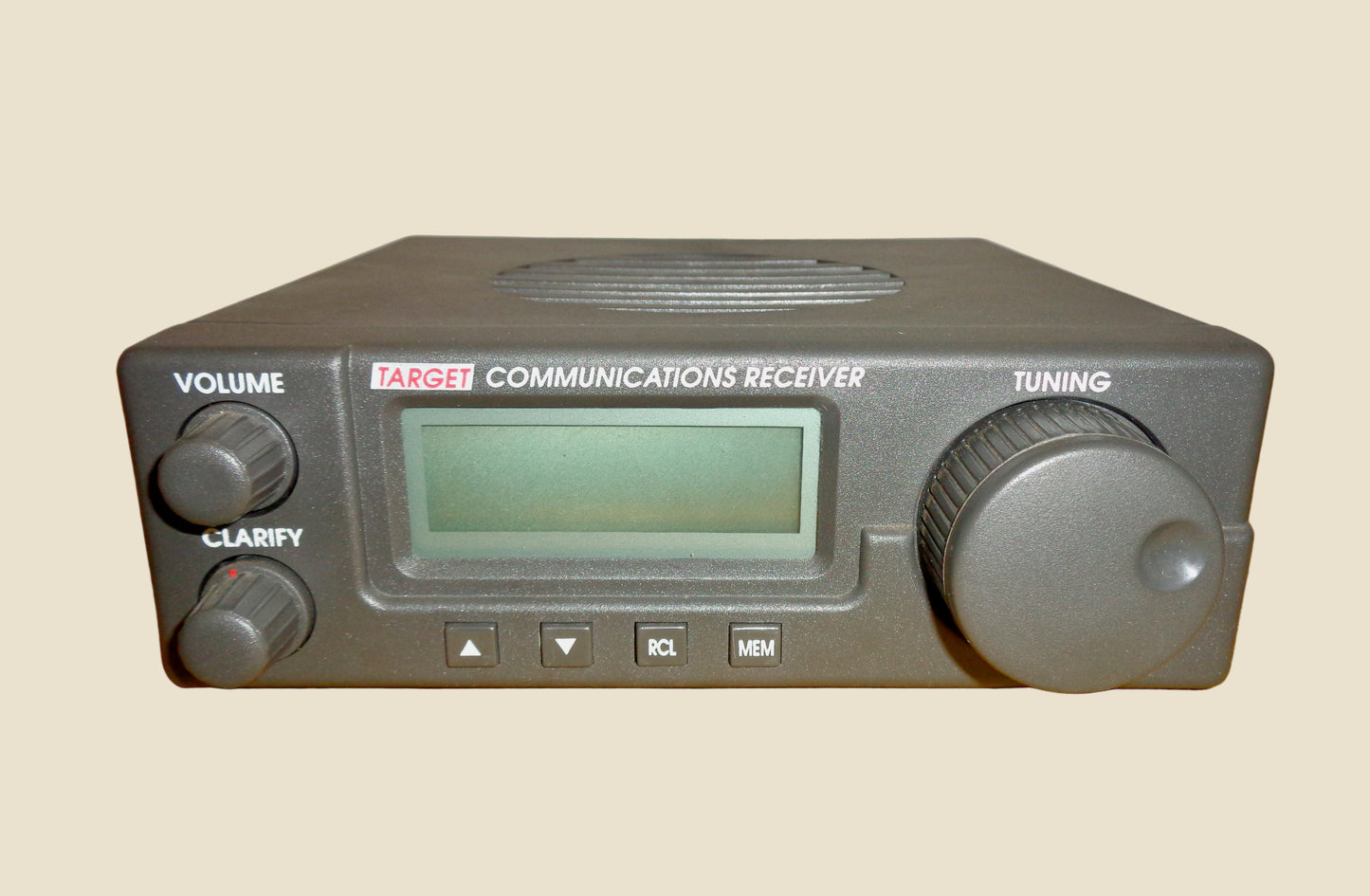

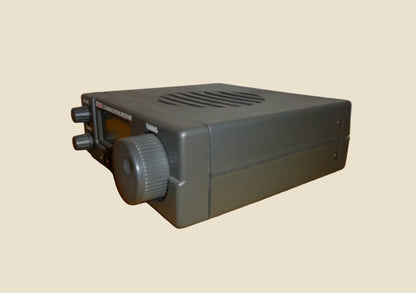

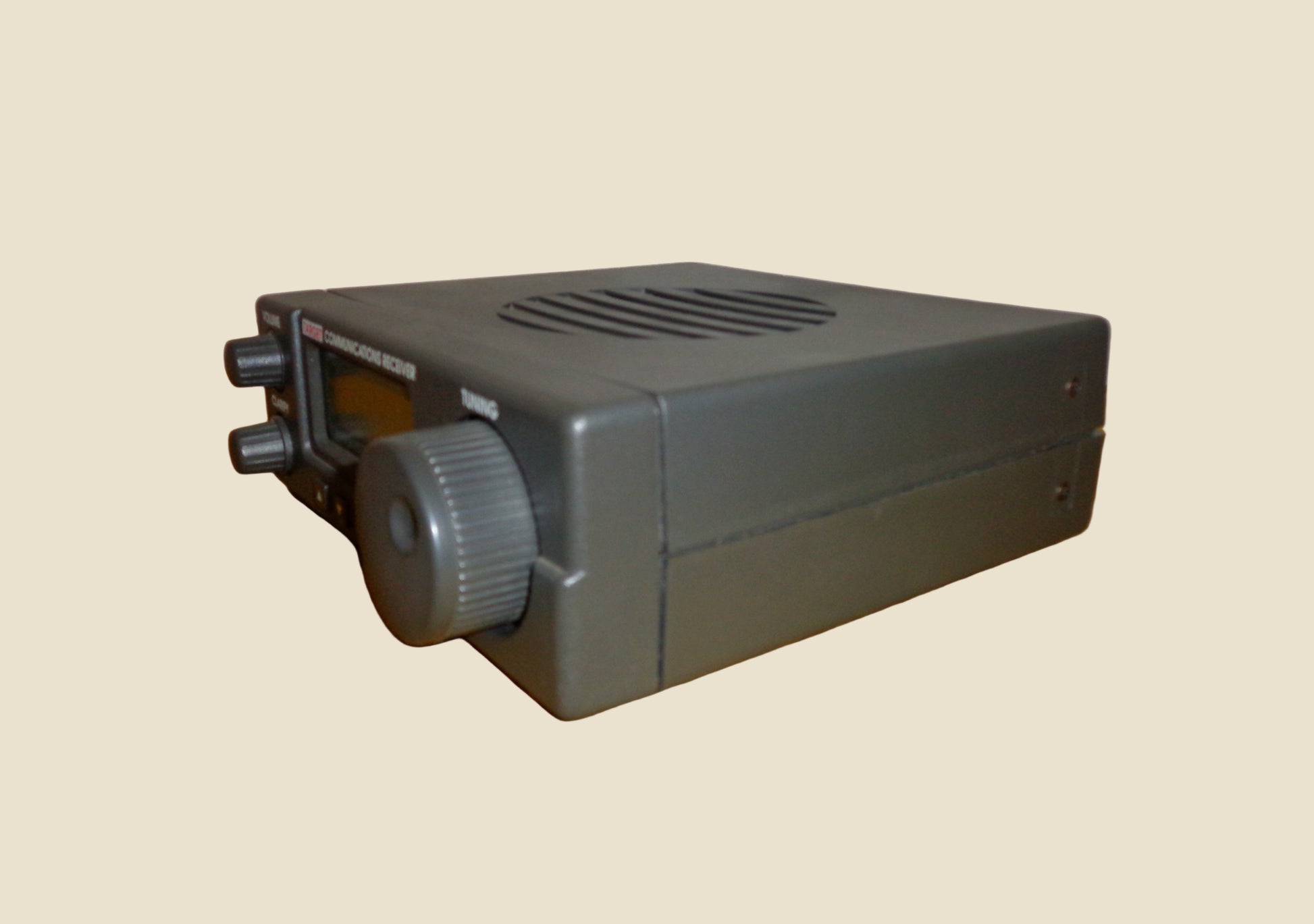

1990s Target HF3 Communication Radio Receiver

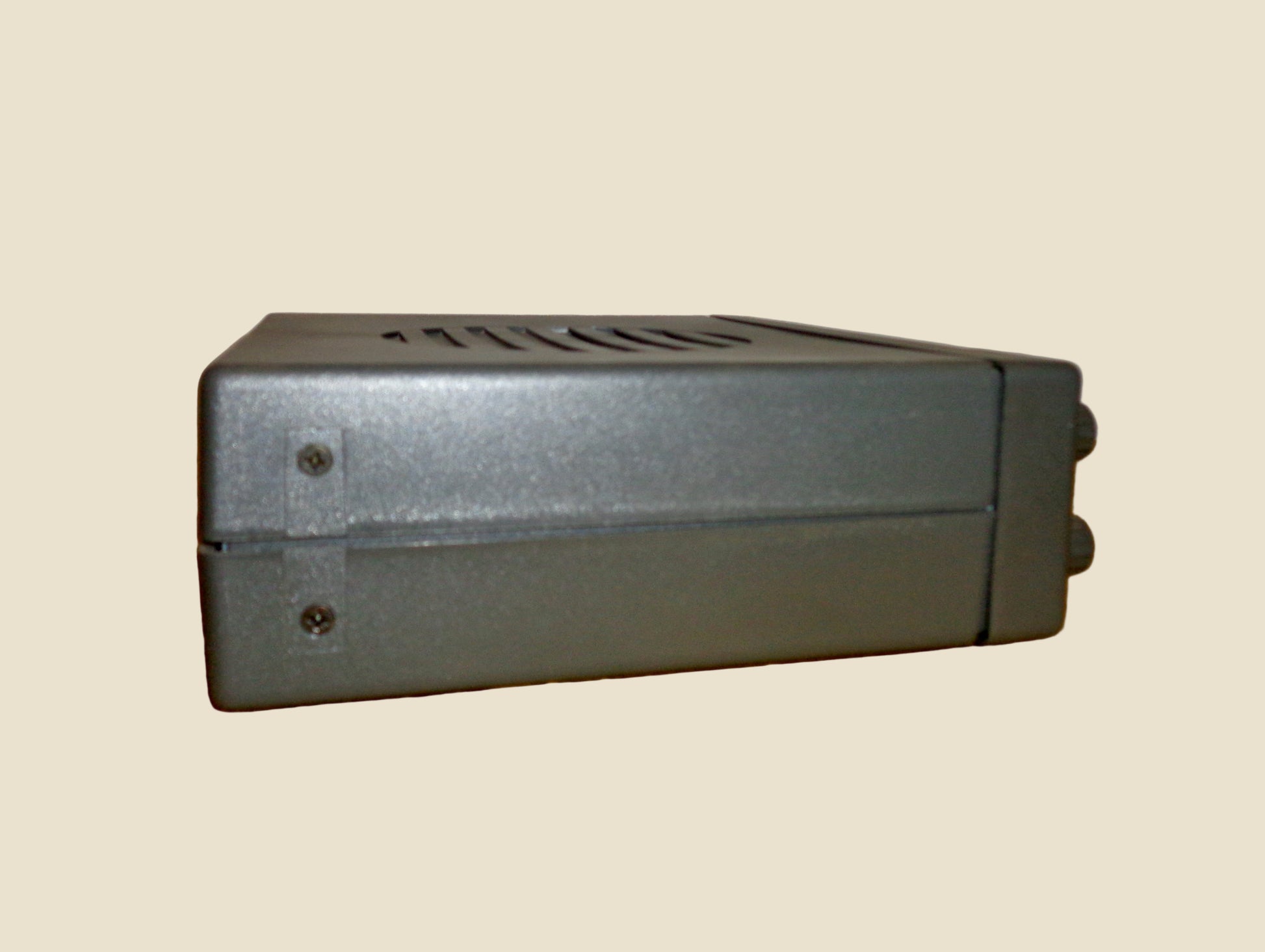

This short-wave 1990s Target HF3 Communication Radio Receiver is in very good used condition, with some scuffs and marks to the case commensurate with age and use.

• Manufactured by AKD in the 1990s

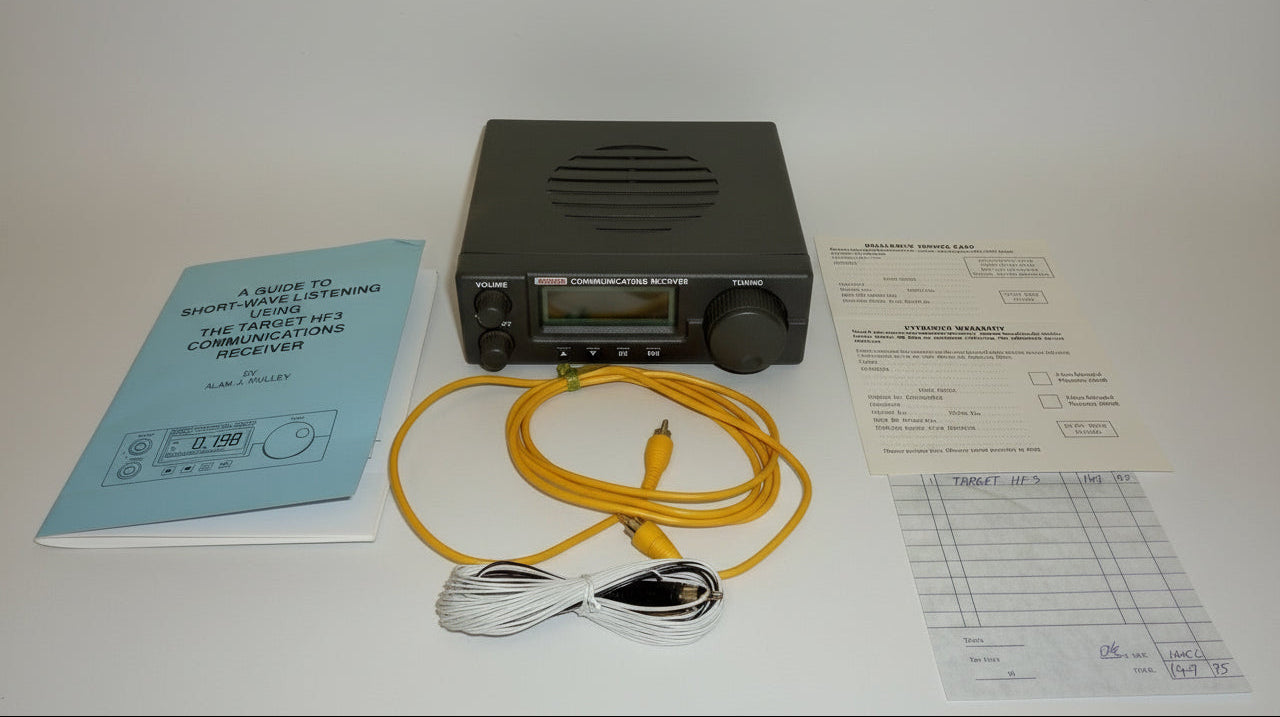

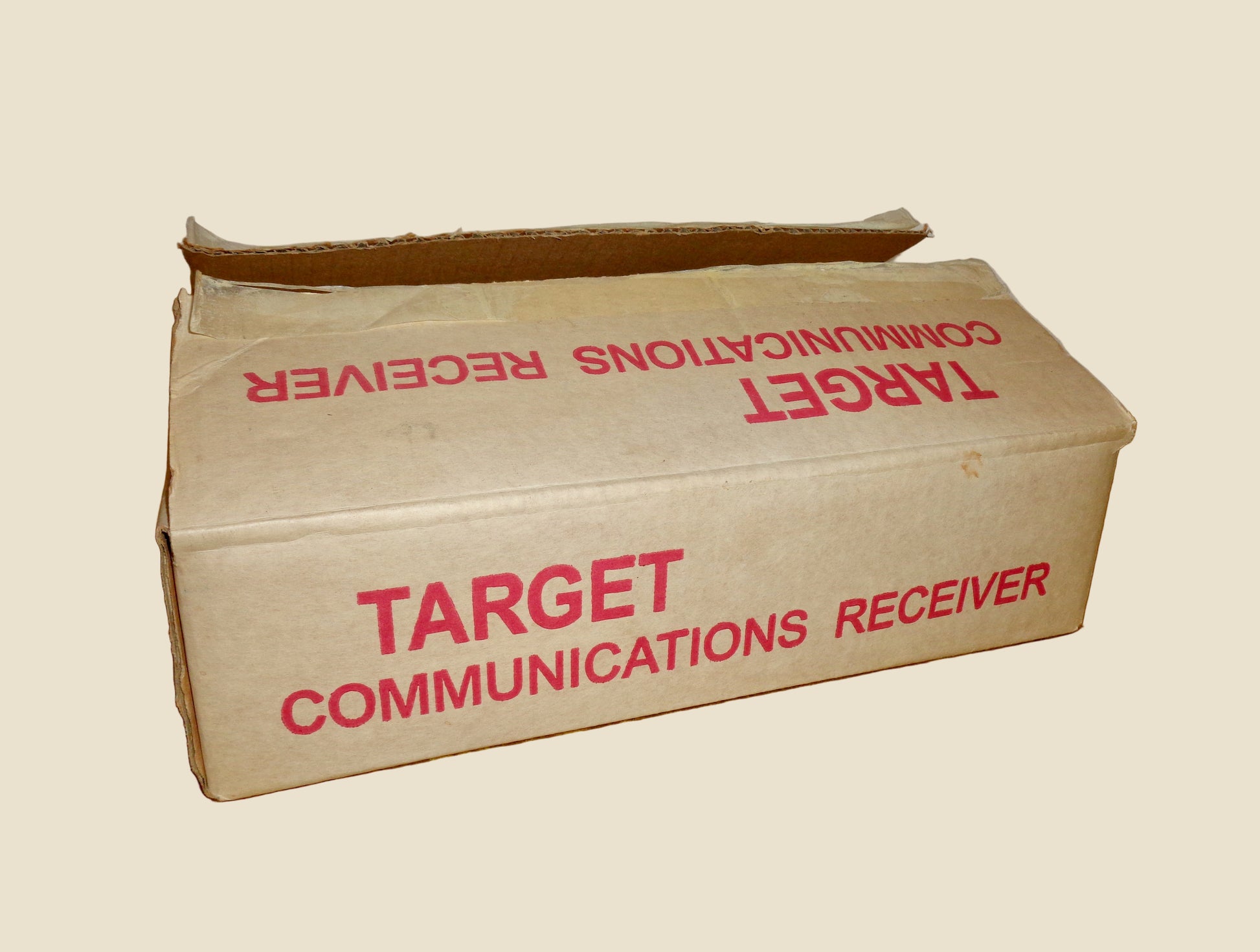

• Boxed and with original documentation including instruction booklet, circuit diagram, guarantee card, and sales invoice
• 12v Power Supply not provided

A versatile shortwave receiver it has the following features:

Specification

• Frequency Range: 30 kHz - 30 MHz

• Modes: AM, LSB, USB
• First IF: 45 MHz with crystal filter
• Second IF: 455kHz with ceramic filters
• Frequency Tolerance:- ± 100Hz
• Sensitivity:  1.0 µV
• Two Bandwidths: SSB = 3.8kHz  AM=6kHz
• Tuning Control: 10 kHz, 100kHz, 1MHz, 10MHz
• Attenuator Switch and RCA Phono Jack for the antenna
• LCD Graph form Signal Indicator
• Power Required:  12 VDC 300mA (not supplied)
• Approx.Dimensions:  18 x 5.8 x17 cm
