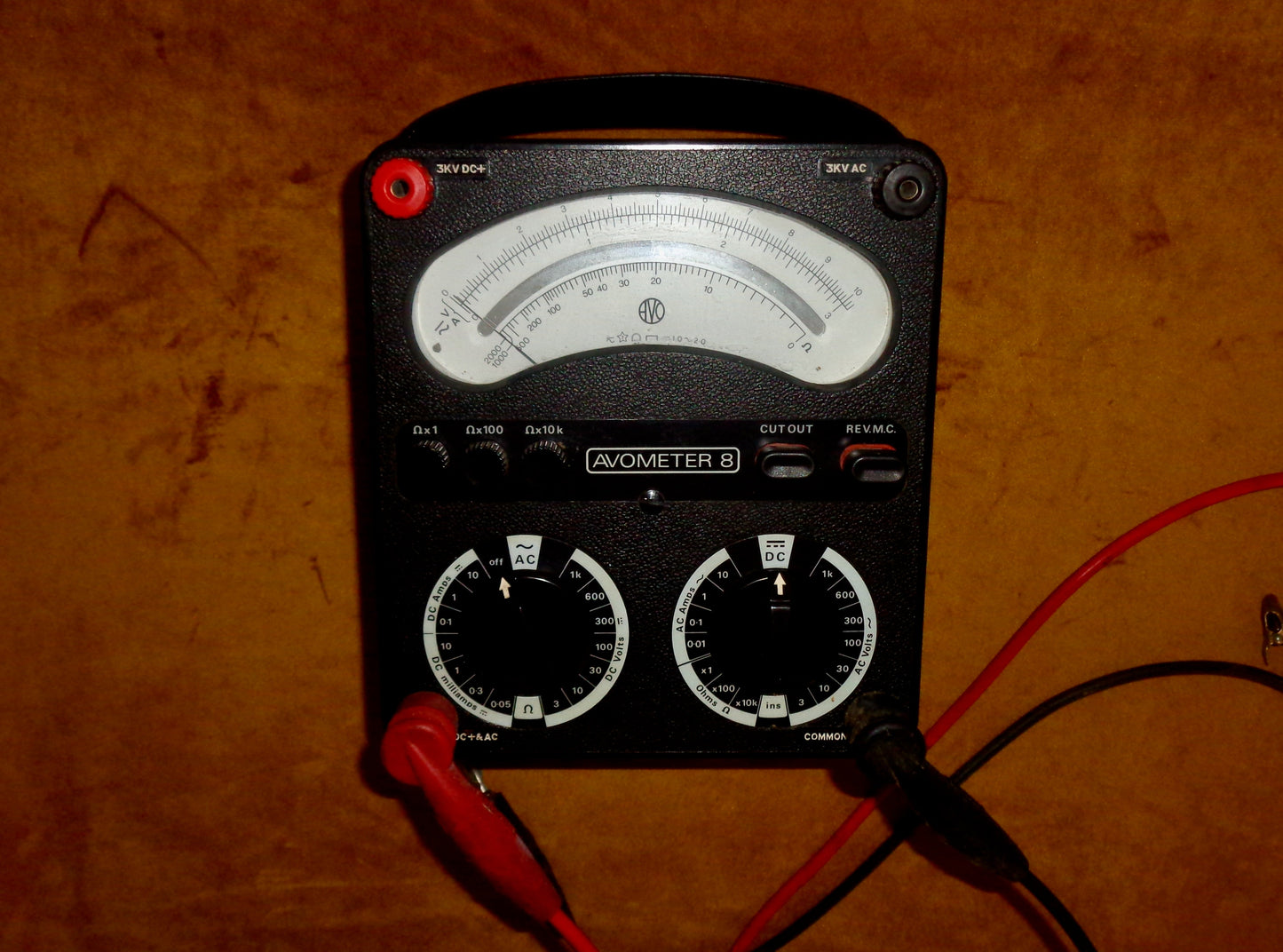

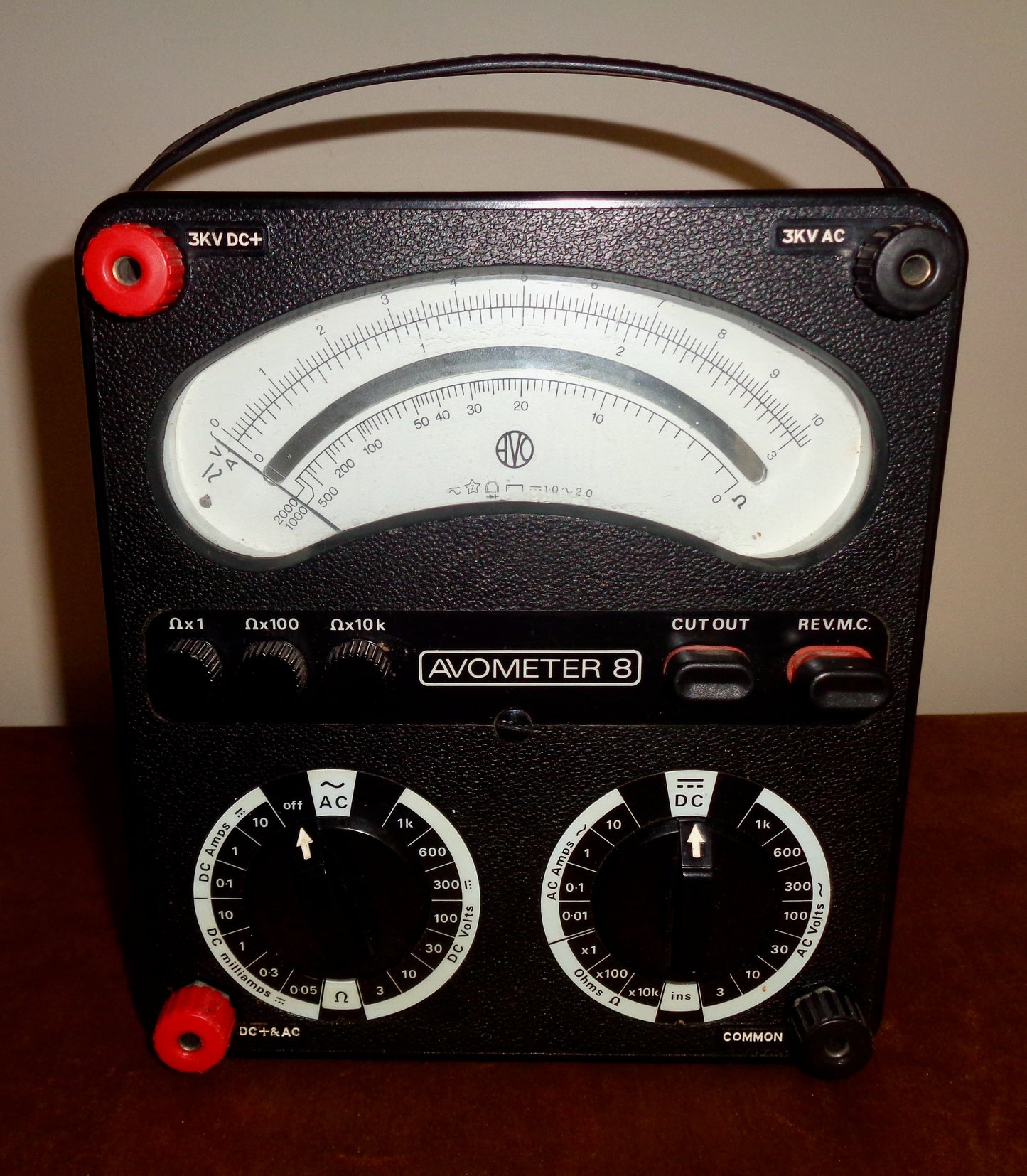

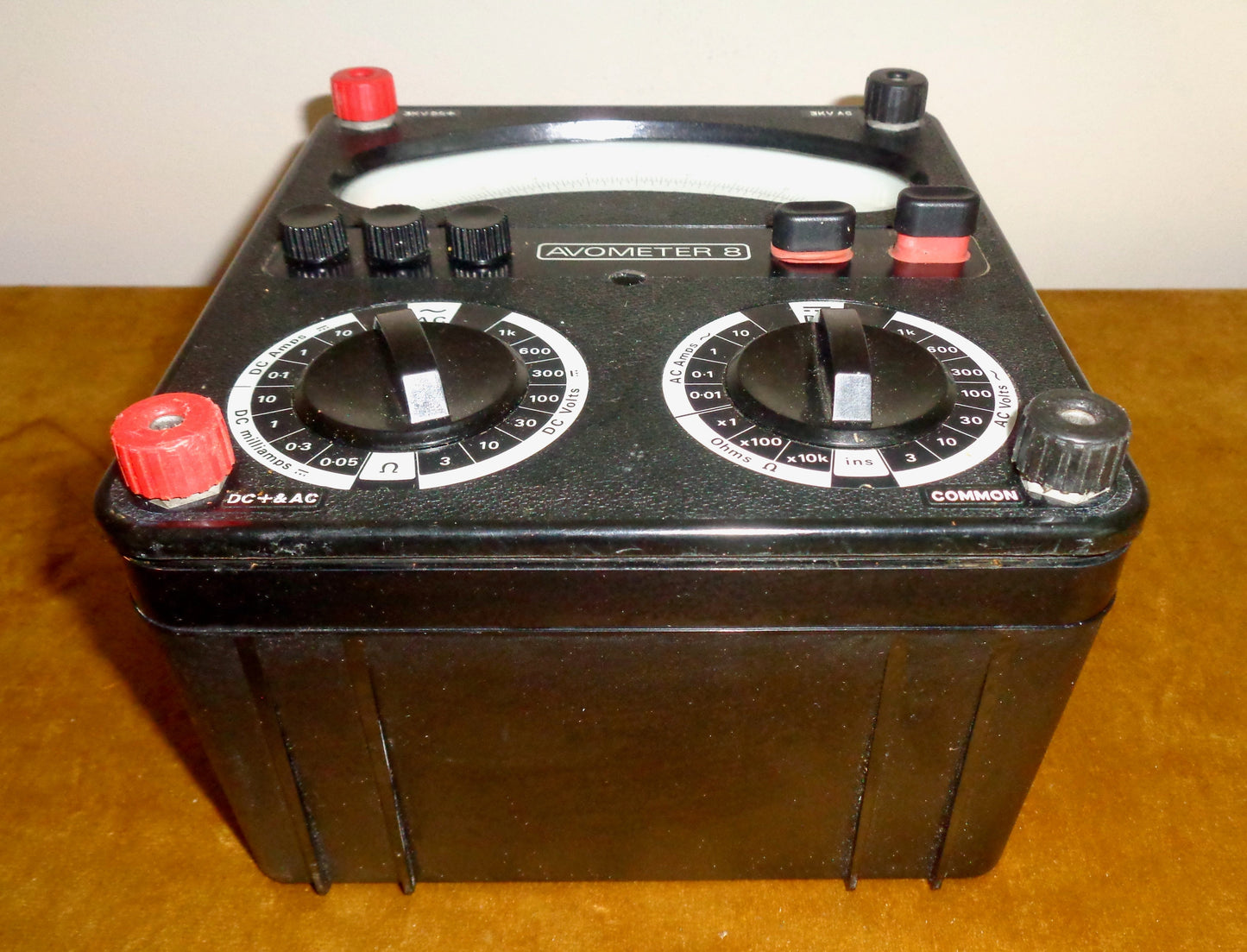

1970s Universal Avometer Model 8 MkV

This is a very nice 1970s Universal Avometer Model 8 MkV. The meter is in pretty good used working condition with some slight scuffs on the surface.

Approximate Dimensions (WHD): 16.7 x 19 x 11.5 cm

A wonderful piece of electronic history, it comes with its leads. Although it does appear to be in working condition, it is being is sold as a collectible as I can't attest to its accuracy.

A multimeter, the model 8 Mk V measures in ohms, amps and volts. The working instructions are printed on a metal label on the rear of the instrument but can also be found on the internet.

The Avometer is marked:-

• Universal Avometer Model 8 Mk V
• Made in England by AVO Limited, Dover, England


Works from batteries/cells (not included) due to problems with shipping.

Range of Measurements

• DC 3, 10, 30, 100, 300, 600, 1000, 3000 volts - sensitivity 50 uA
• DC 0.05, 0.3, 1, 10, 100 mA, 1, 10 A
• AC 3, 10, 30, 100, 300, 600, 1000, 3000 volts -
• sensitivity: 0.5 mA on 30+ volts, 1 on 10, 10 on 3
• AC 10, 100 mA, 1, 10 A
• R 2k, 200k, 20 M ohm (20, 2k, 200k ohm centre). (2 M ohm centre, with external power)
