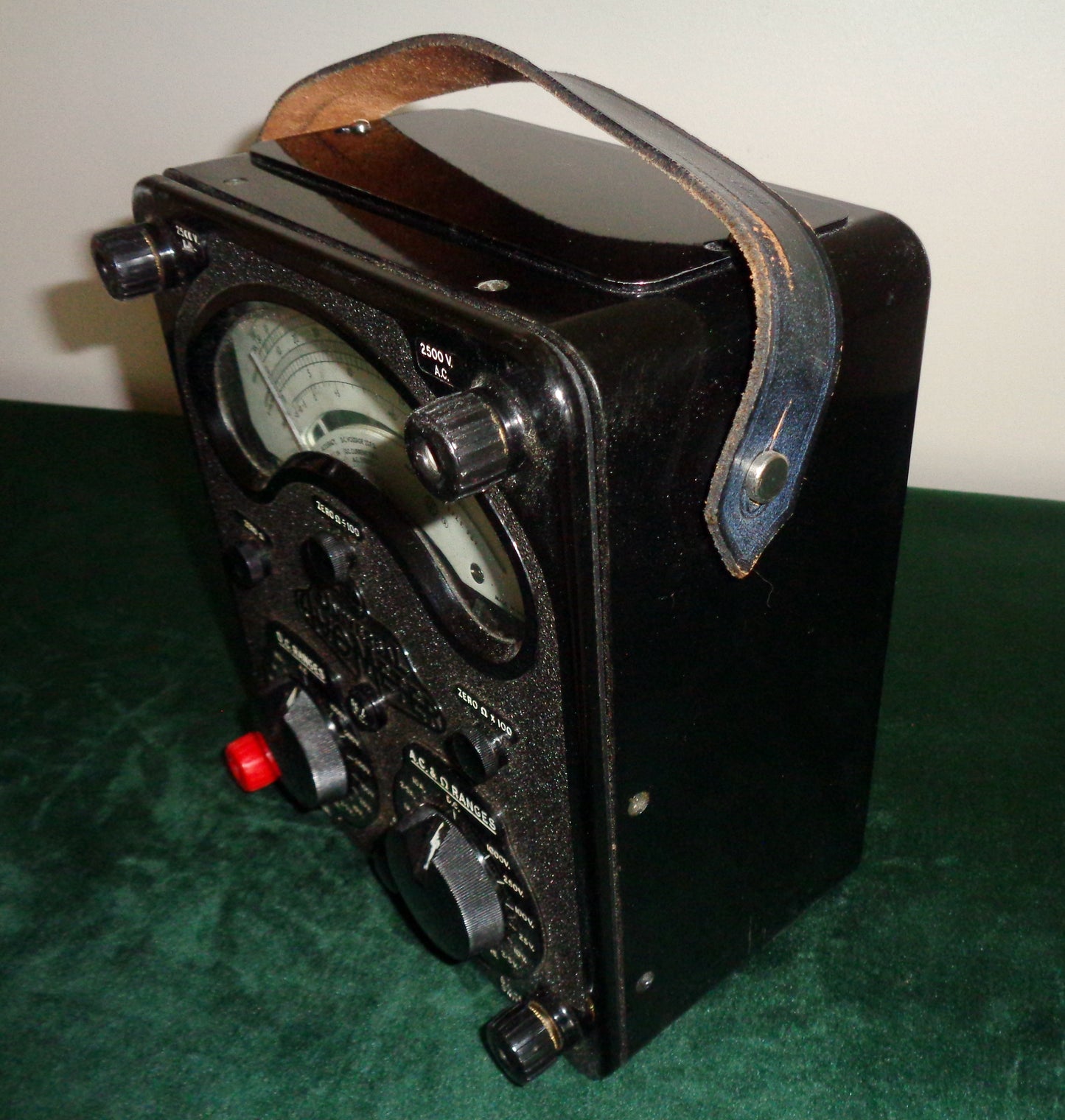

1960s Universal Avometer Model 8 MkIII

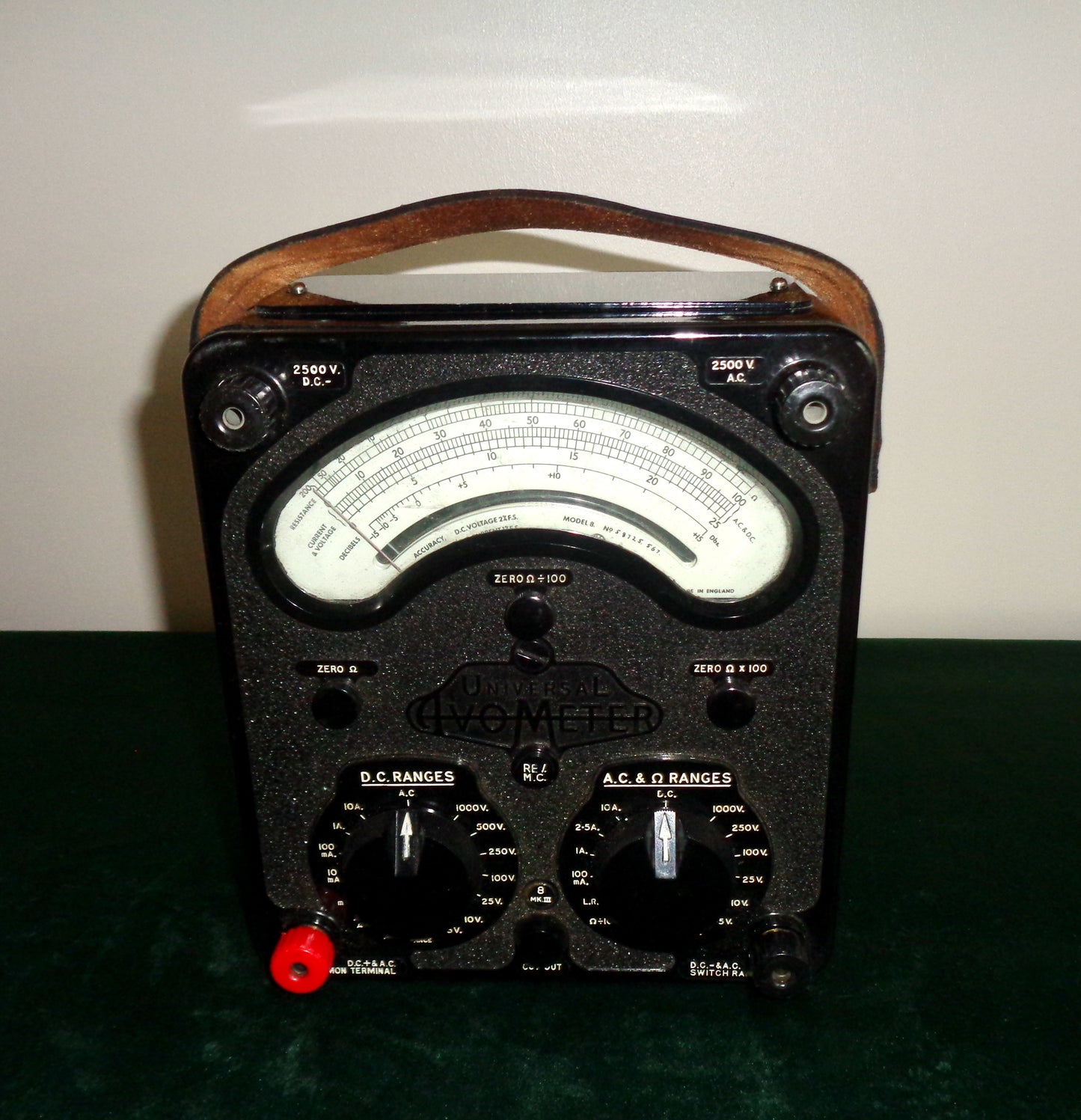

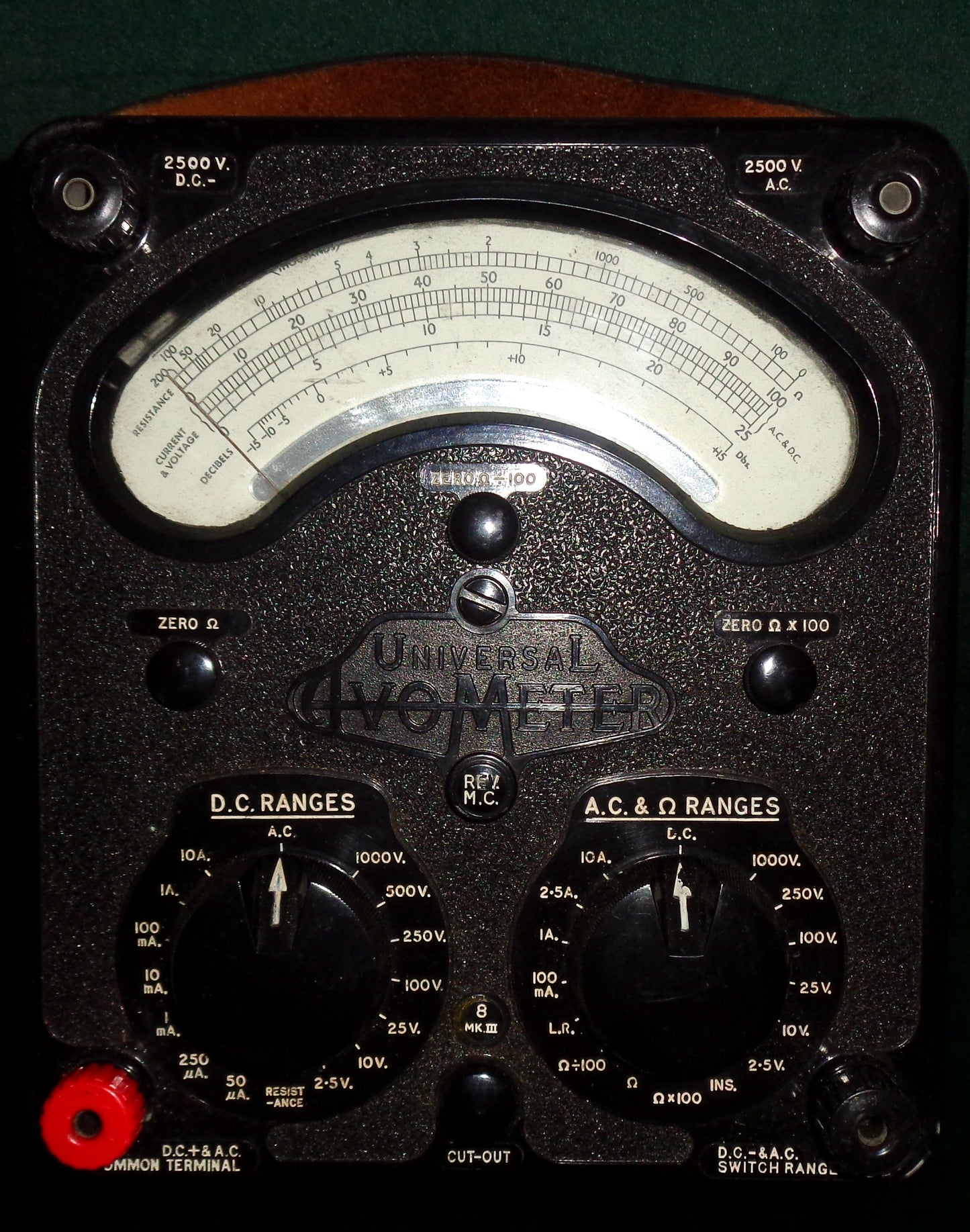

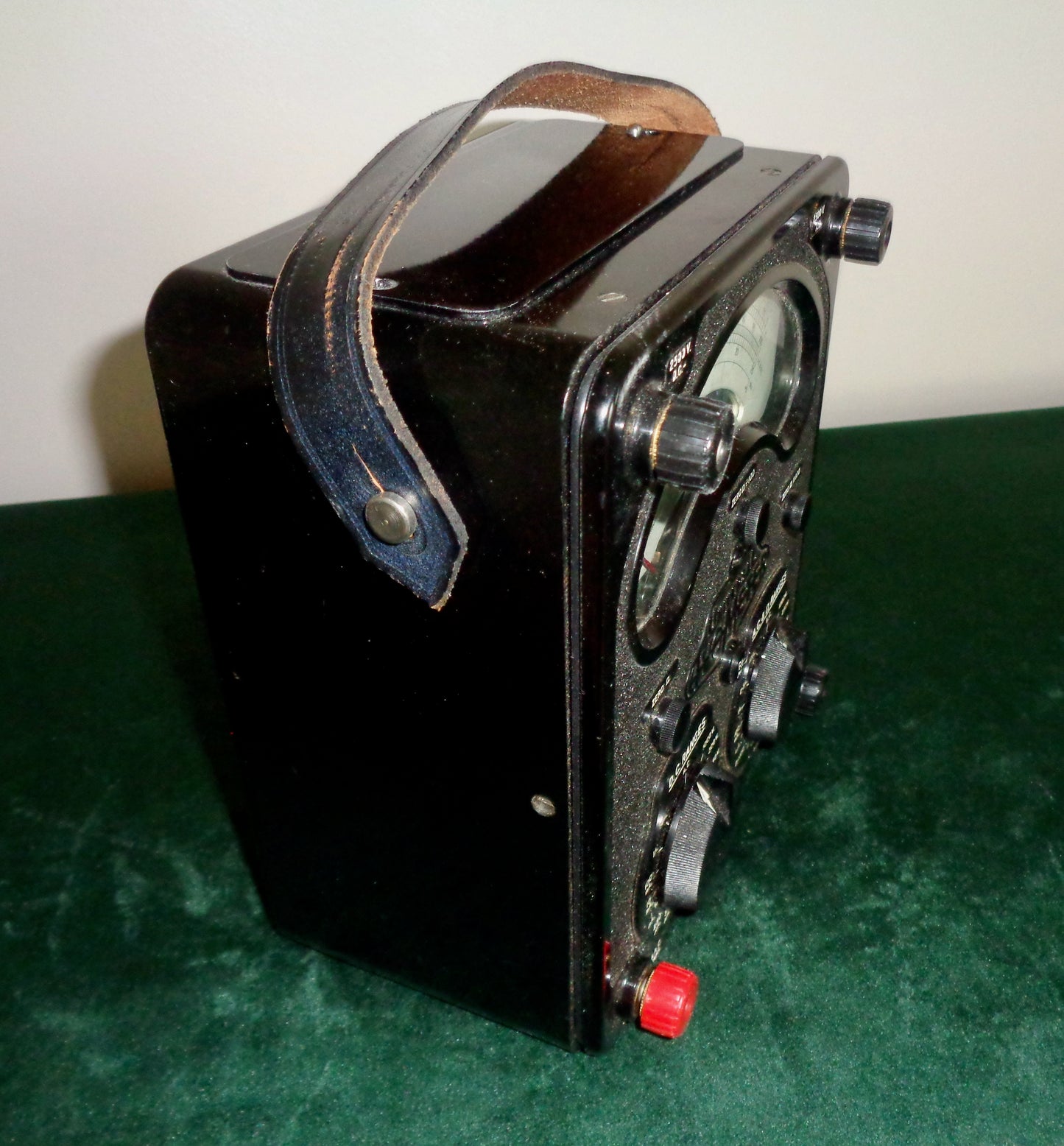

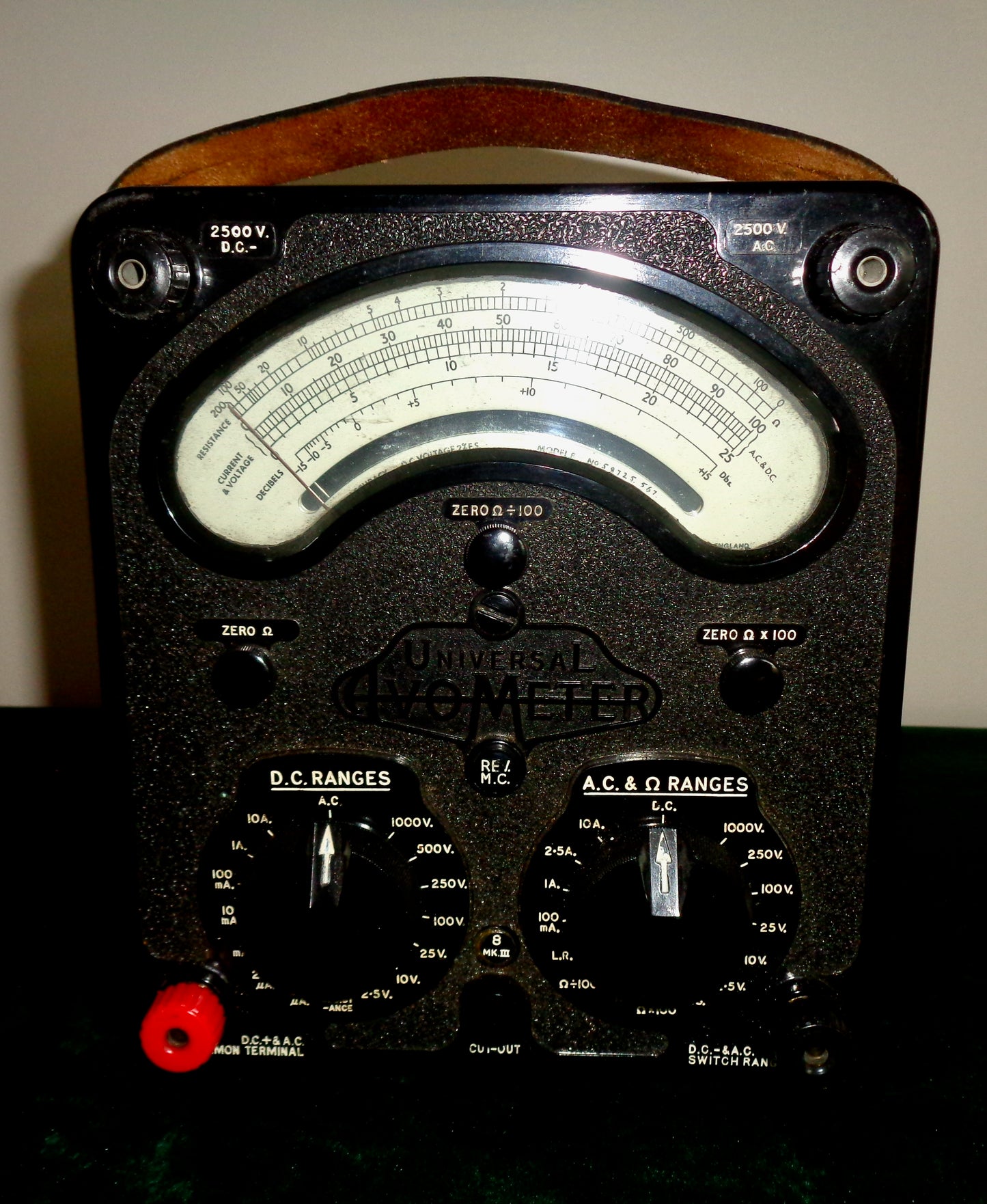

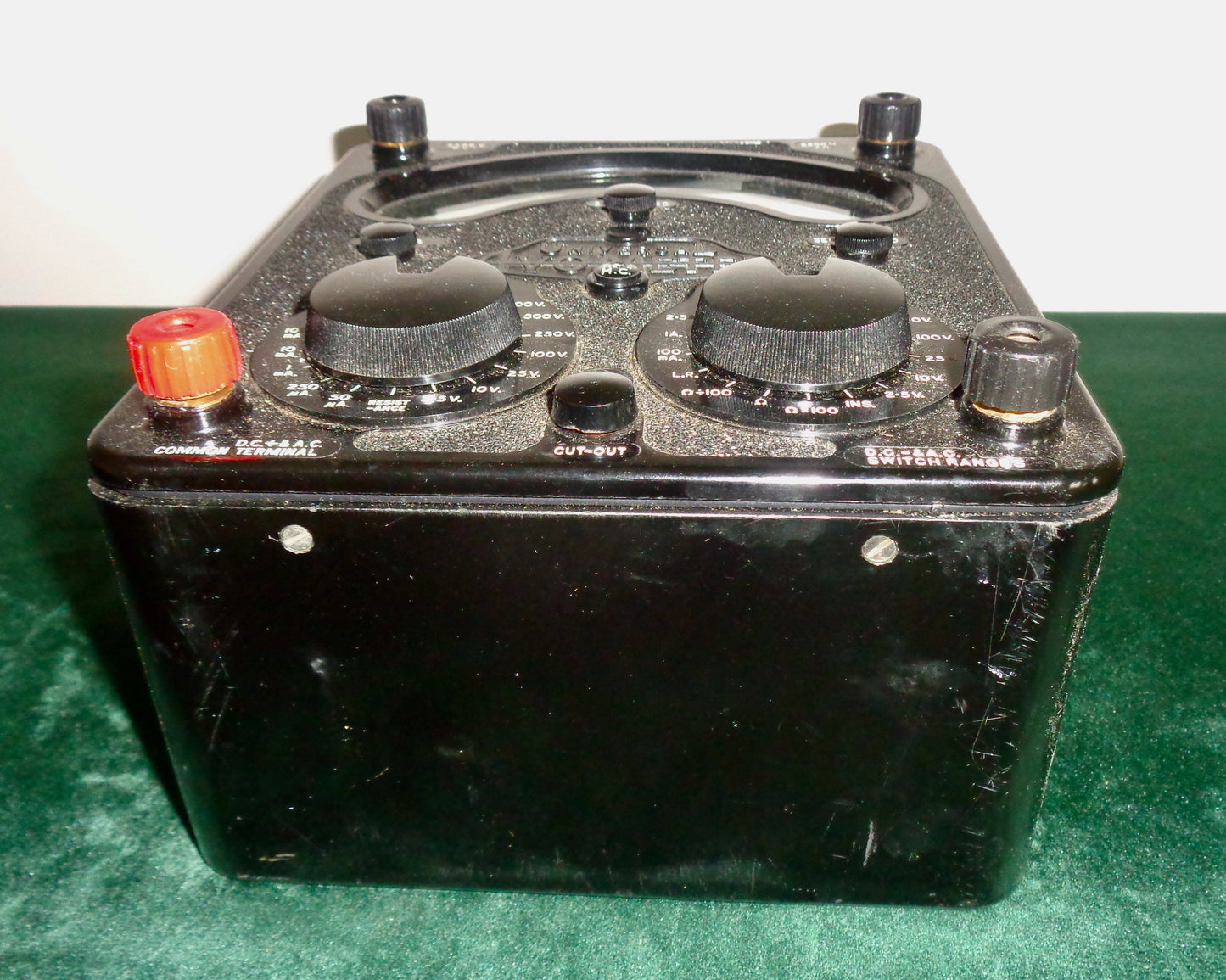

This is a very nice 1960s Universal Avometer Model 8 MkIII. The meter is in pretty good used working condition with some slight scuffs on the surface.

Approximate Dimensions (WHD): 16.7 x 19.5 x 11.5 cm

A wonderful piece of electronic history, it comes with its leads. Although it does appear to be in working condition, it is being is sold as a collectible as I can't attest to its accuracy.

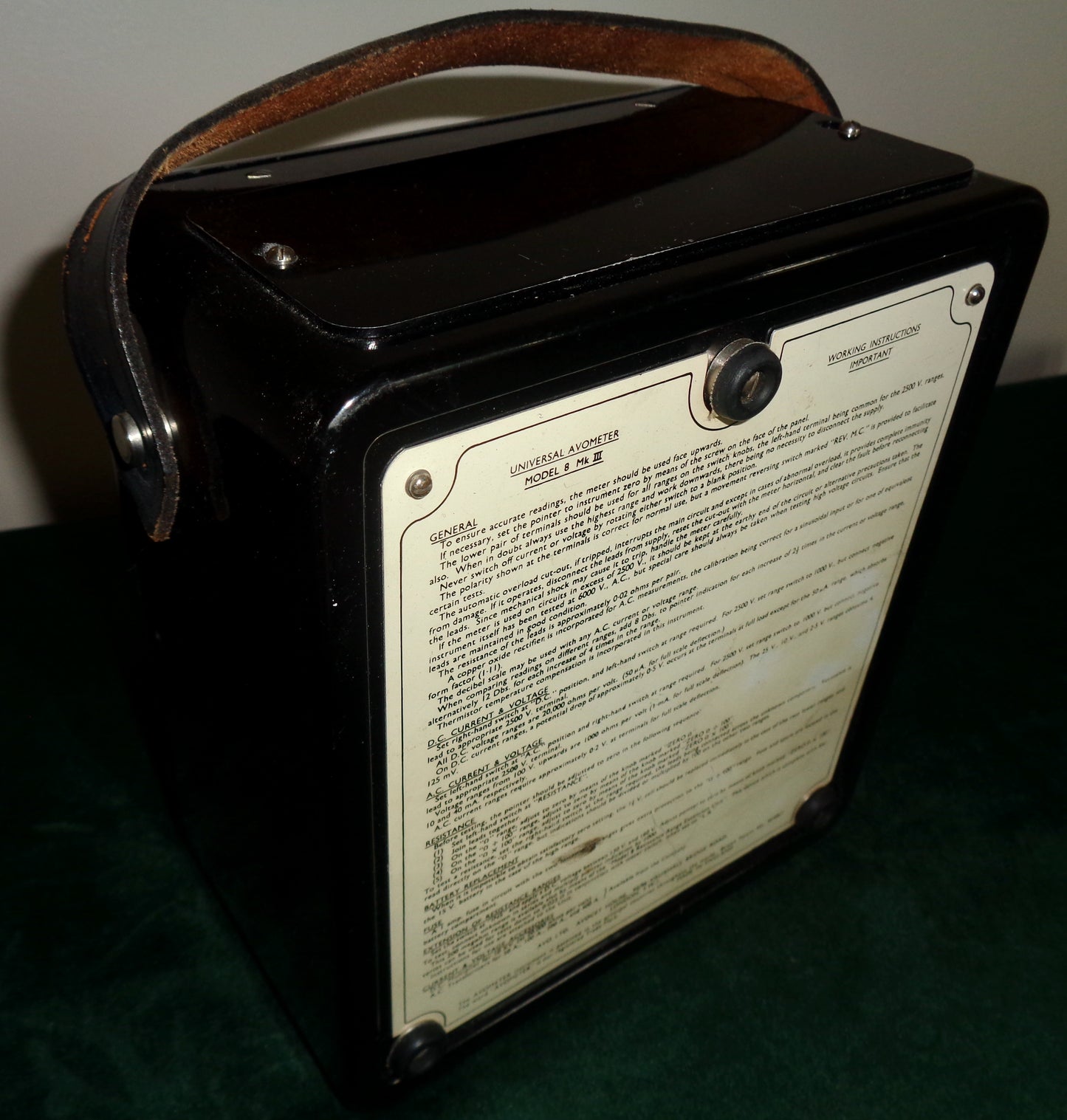

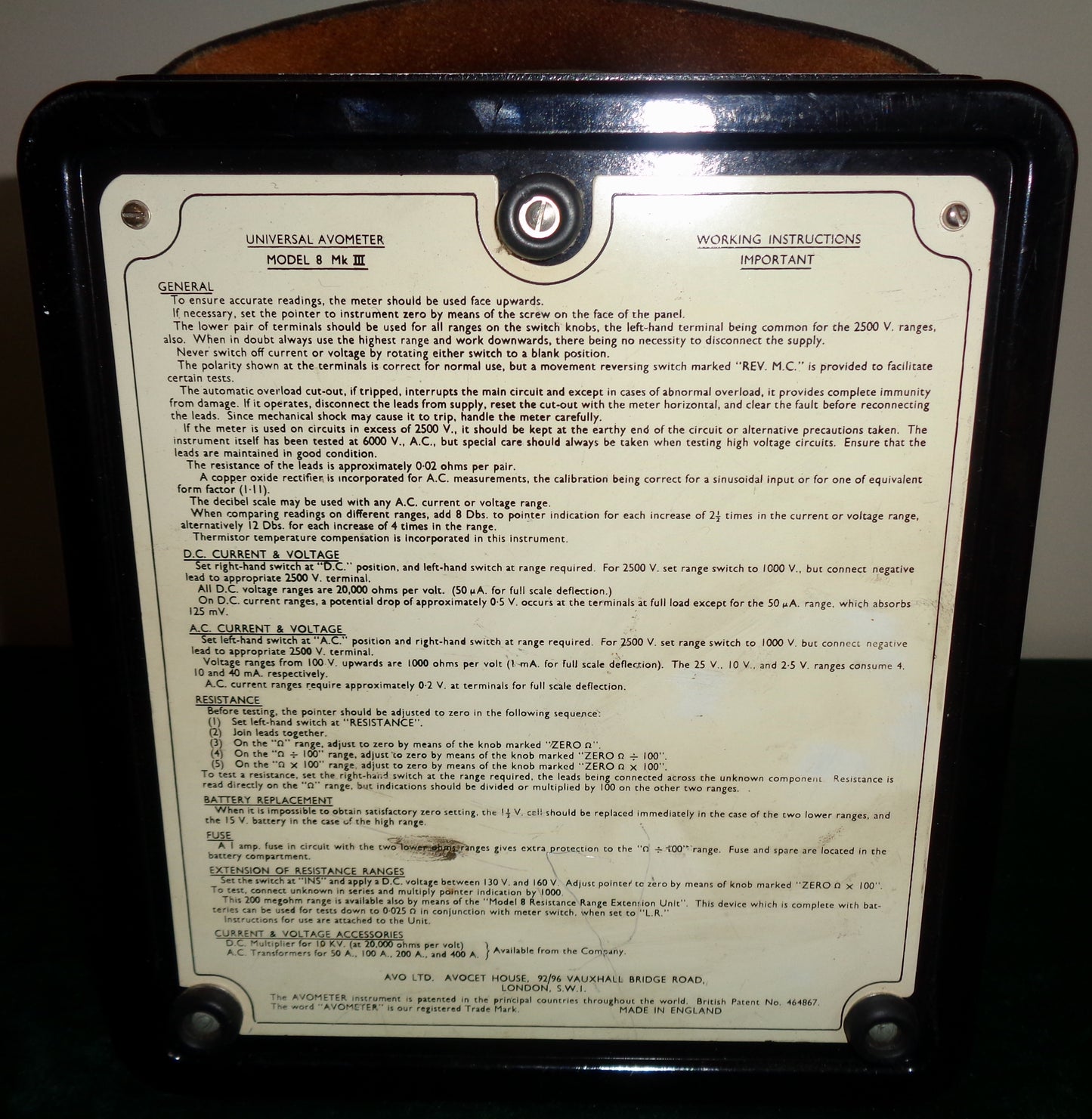

A multimeter, the model 8 Mk III measures in ohms, amps, volts and decibels. The working instructions are printed on a metal label on the rear of the instrument.

The Avometer is marked:-

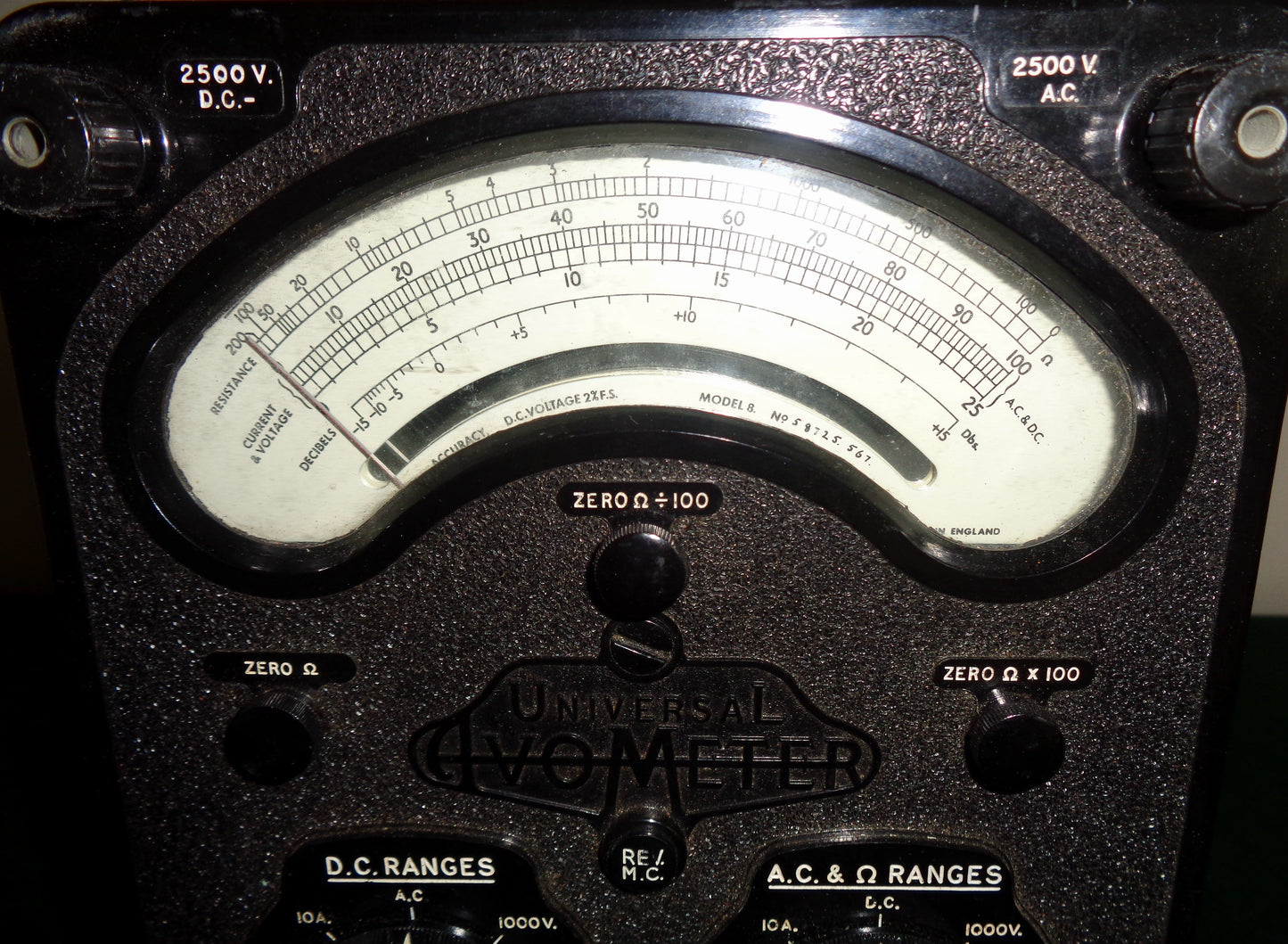

  • Universal Avometer Model 8 Mk III
  • Serial number 58725.567
  • Made in England by AVO Limited Avocet House, London S.W.1

Works from batteries/cells (not included) due to problems with shipping.

Range of Measurements

  • DC 2.5, 10, 25, 100, 250, 500, 1000, 2500 volts - sensitivity 50 uA
  • DC 0.05, 0.25, 1, 10, 100 mA, 1, 10 A
  • AC 2.5, 10, 25, 100, 250, 1000, 2500 volts - sensitivity: 1 mA on 10+ volts, 10 mA on 2.5
  • Decibels: -15 to 15
  • AC 100 mA, 1, 2.5, 10 A
  • R 2k, 200k, 20 M ohm (20, 2k, 200k ohm center)
    Also LR (= 0.325 volts, for use with low range of Resistance Range Extension unit) and Ins. (2 M ohm center, with external power)
