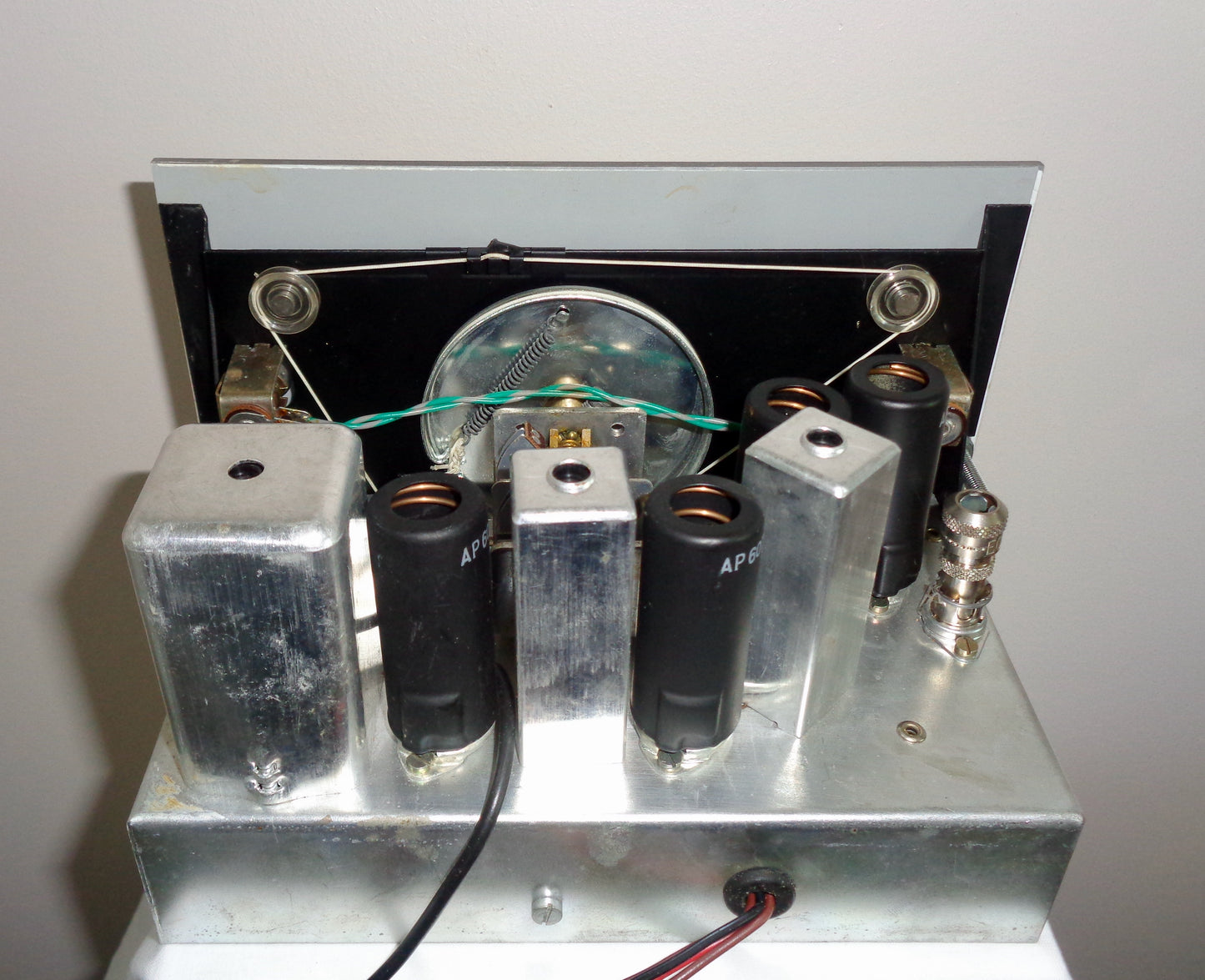

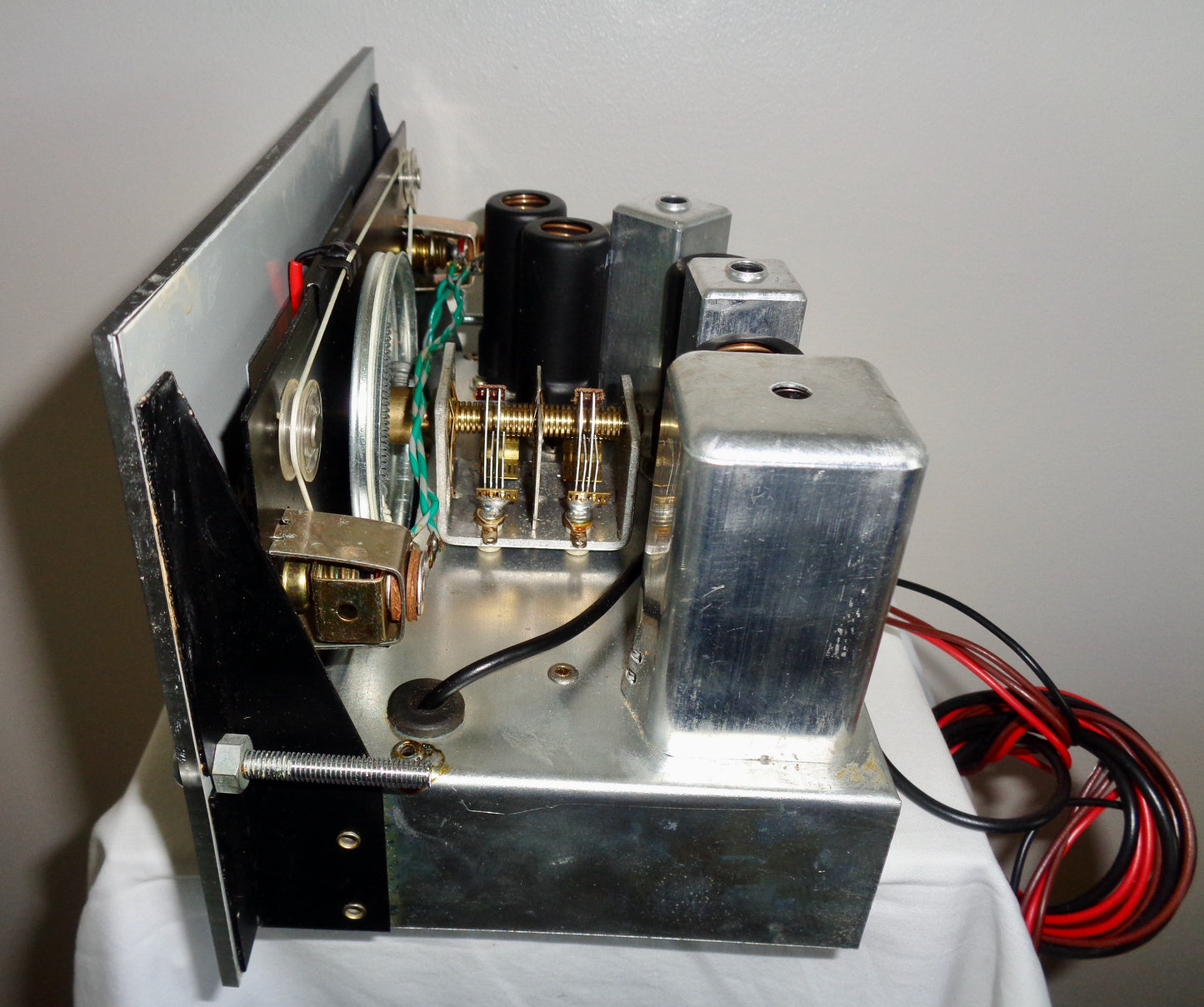

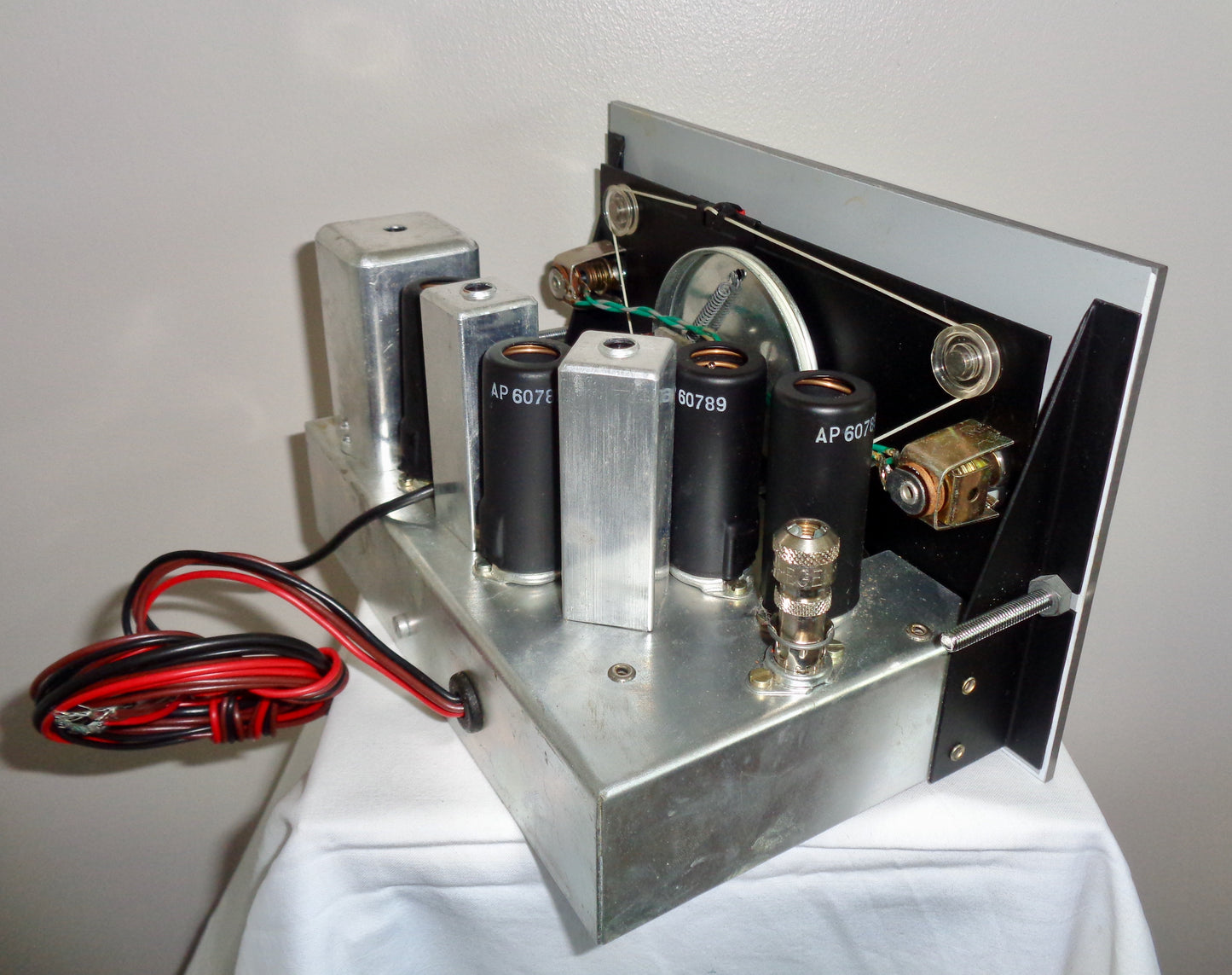

1960s Stern-Clyne FM1 VHF / FM Valve Tuner

This is a very nice 1960s Stern-Clyne FM1 VHF / FM Valve Tuner, which looks to have never been used! It comes with its original box and instruction manual.

This pre-assembled version of the Sternkit is in extremely good cosmetic condition, with superficial surface blemishes but no major scratches.

The tuner has not been recently powered and the current working condition is unknown.

Specification

  • Manufactured For Stern-Clyne, London, UK
  • Type: FM/VHF Tuner for horizontal or vertical mounting
  • Tuning range 88/108 Mc/s with a continuously variable output

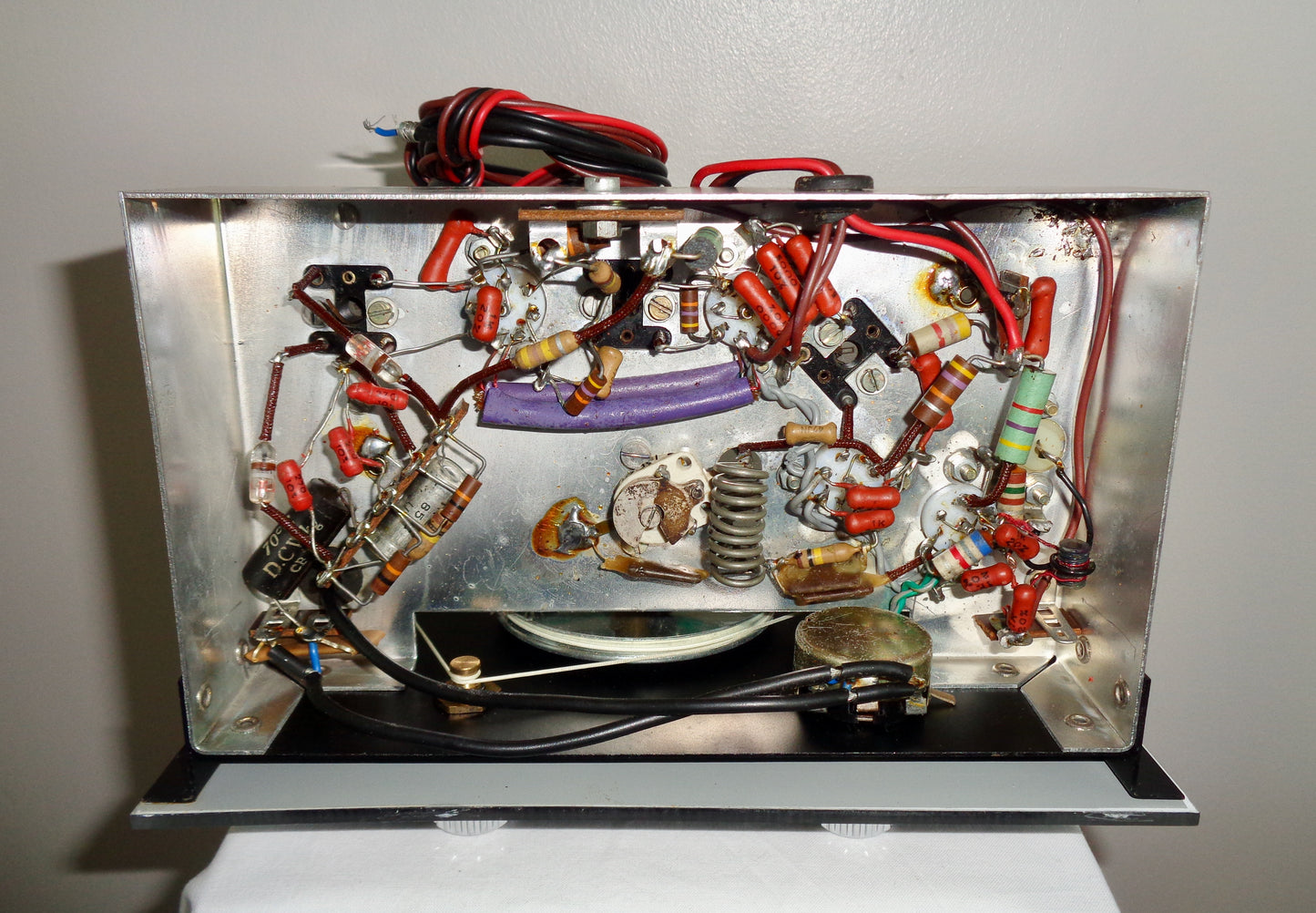

  • Circuit: R.F stage, self-oscillating frequency changer. I.F. stage limiter and radio detector
  • Power is drawn from an amp (not included): requires 200 volts @25 MA., 6.3 Volts @1.5 amps
  • Aerial: 70/80 ohms feeder
  • Dimensions: 8 x 5 x 4.5 inch

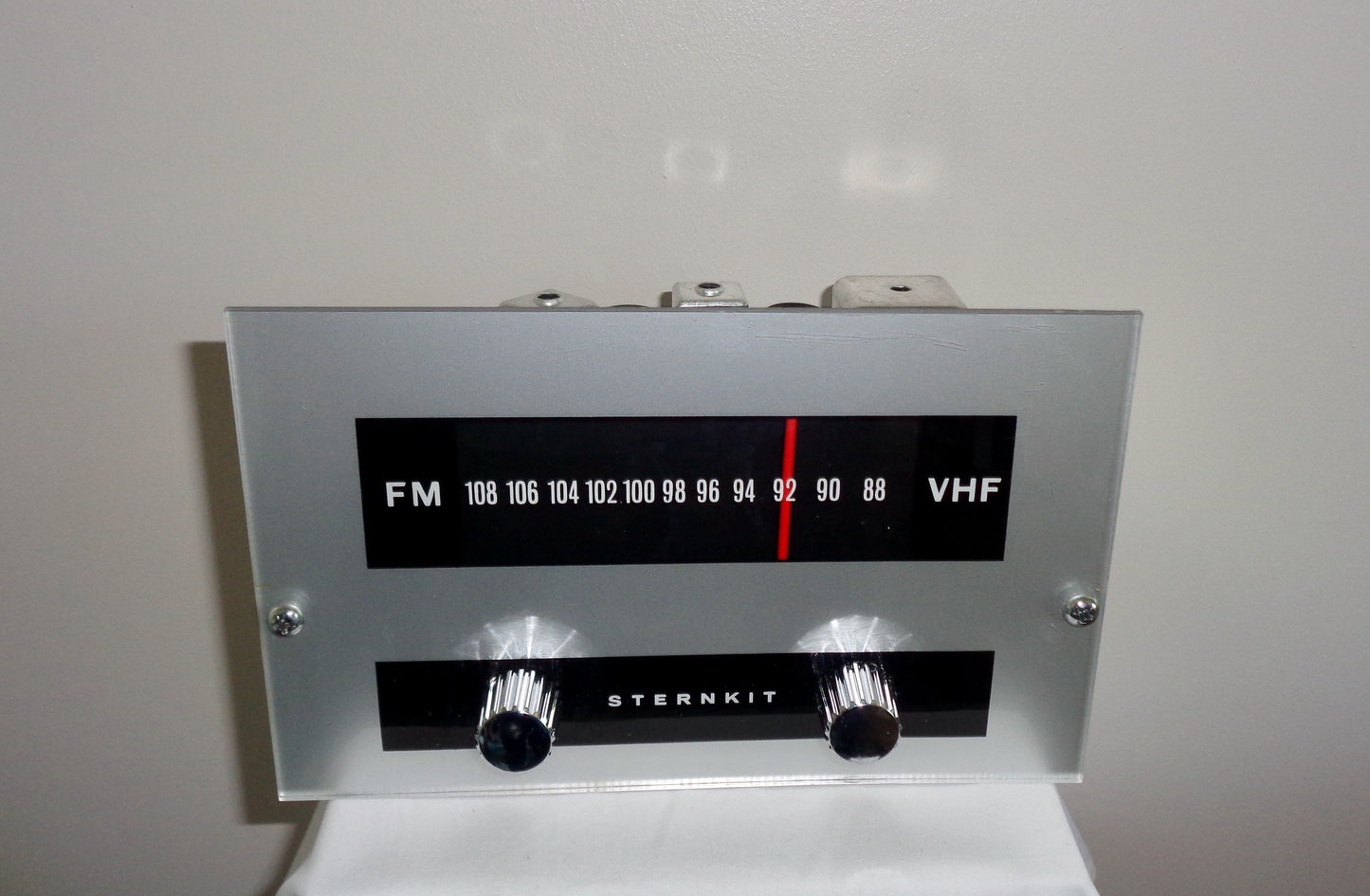

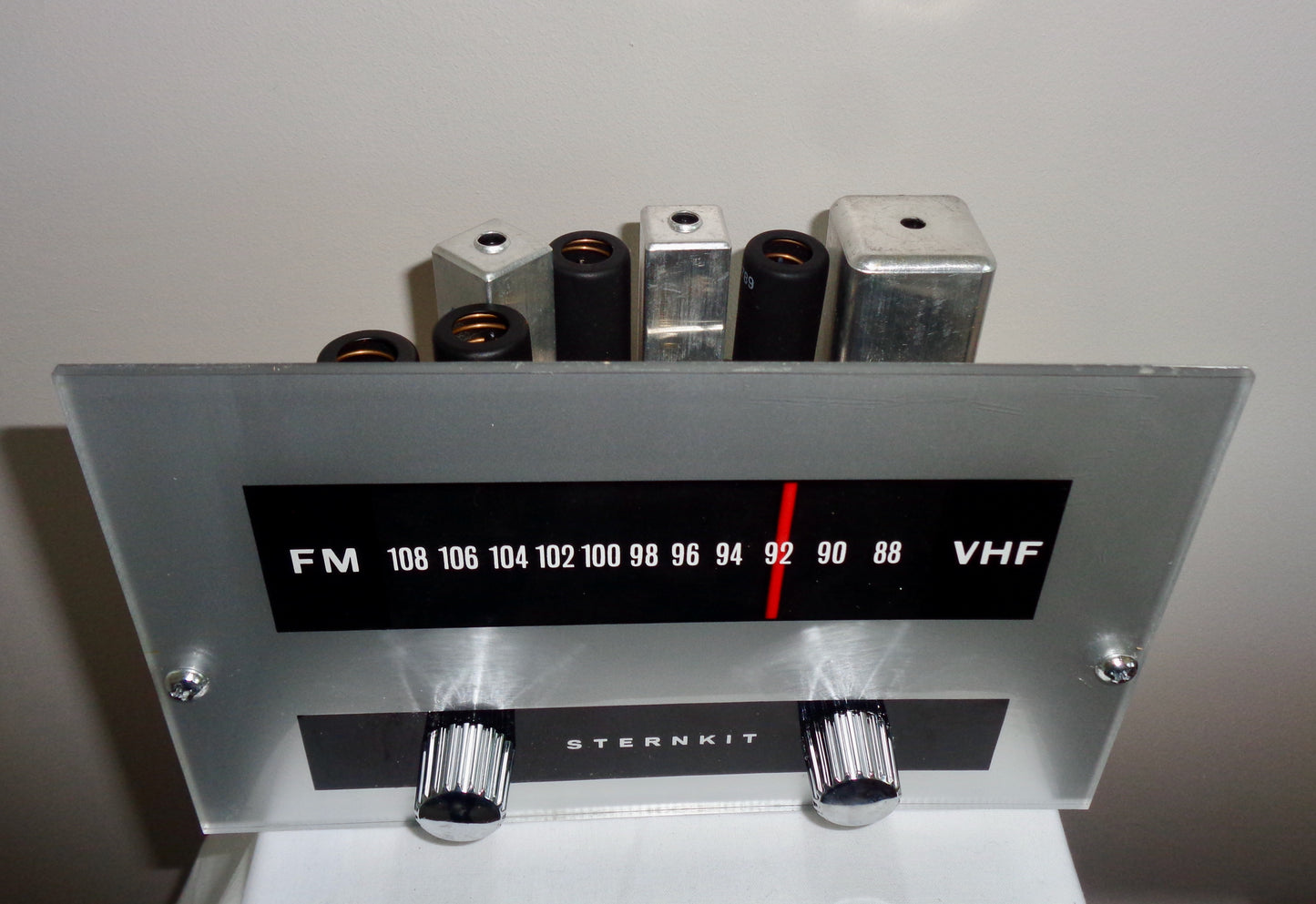

  • Front Panel Colour: Silver and Black Oroglass with Mirror edges
  • Knob Colour: Chrome
  • External Aerial Required via Aerial Connector
