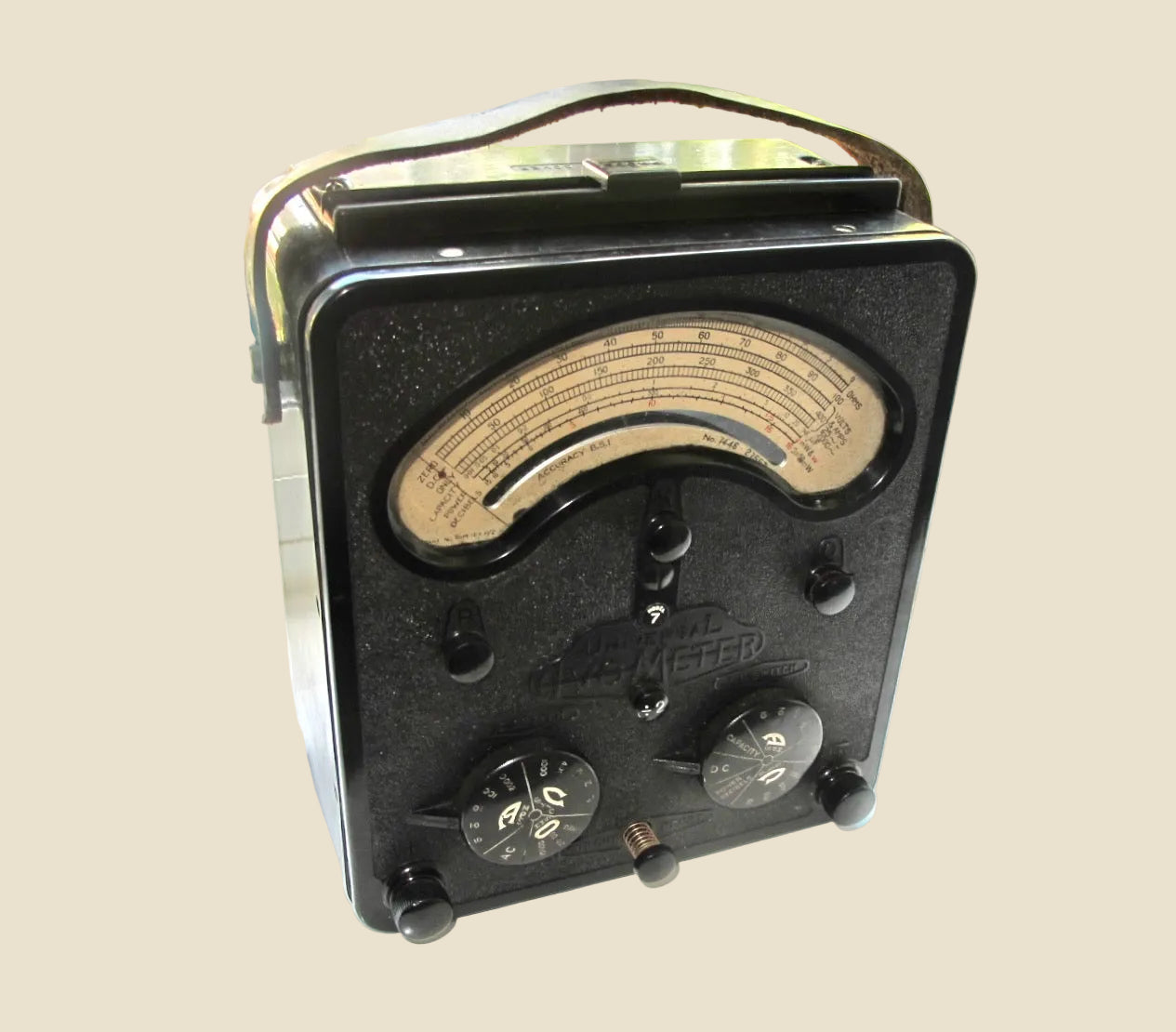

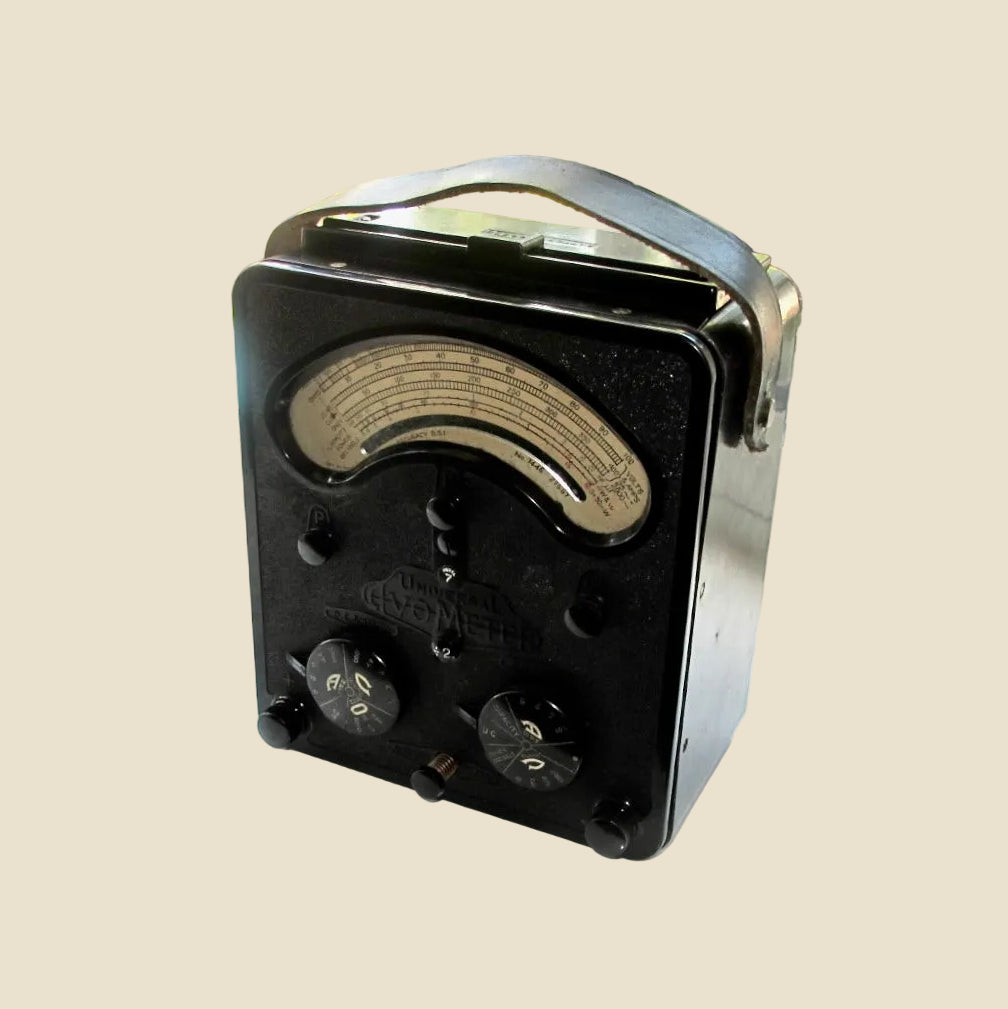

1940s Universal Avometer Model 7 With Tan Leather Case

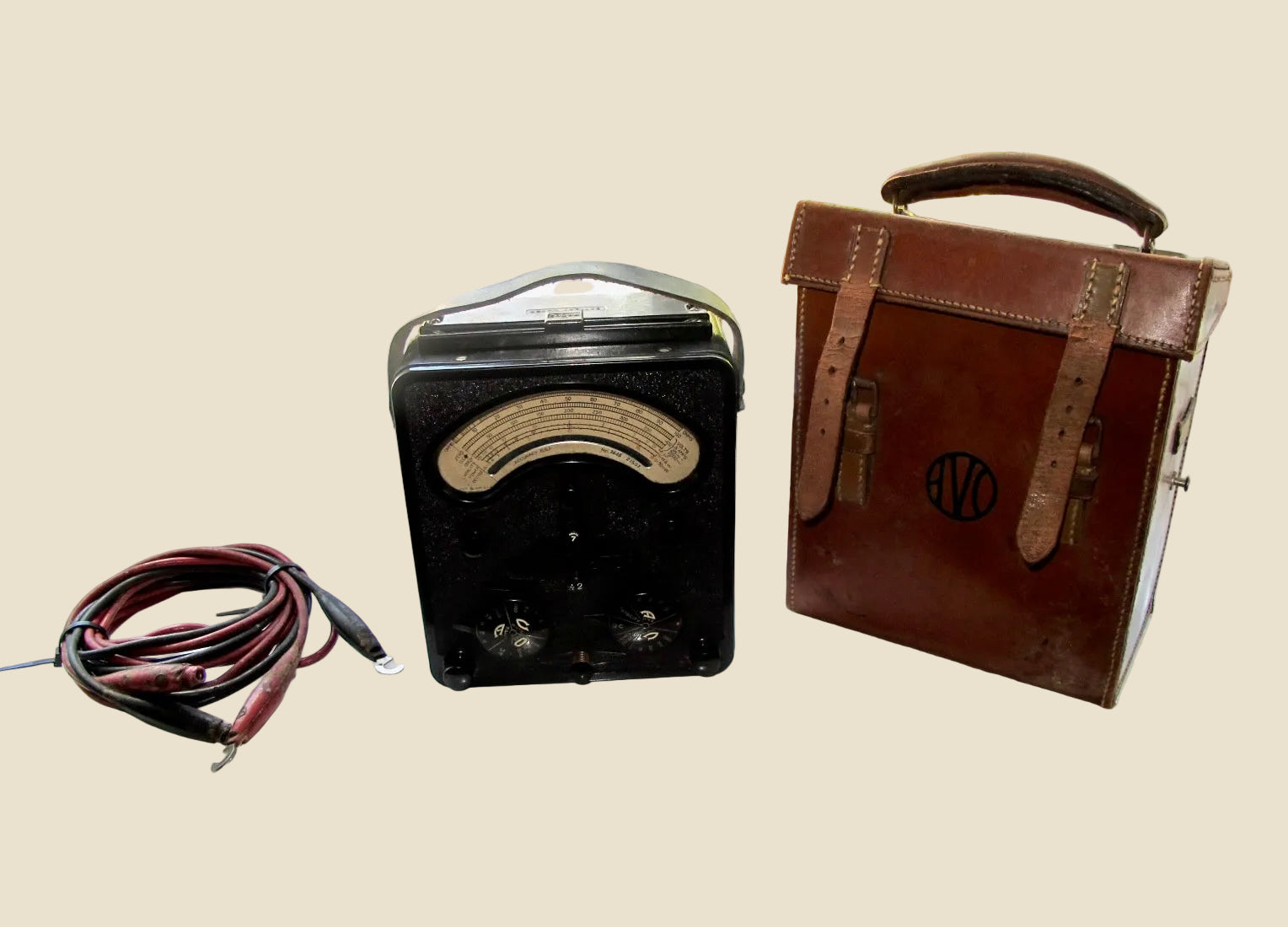

This is a very nice vintage 1940s Universal Avometer Model 7 With Tan Leather Transit Case and leads.

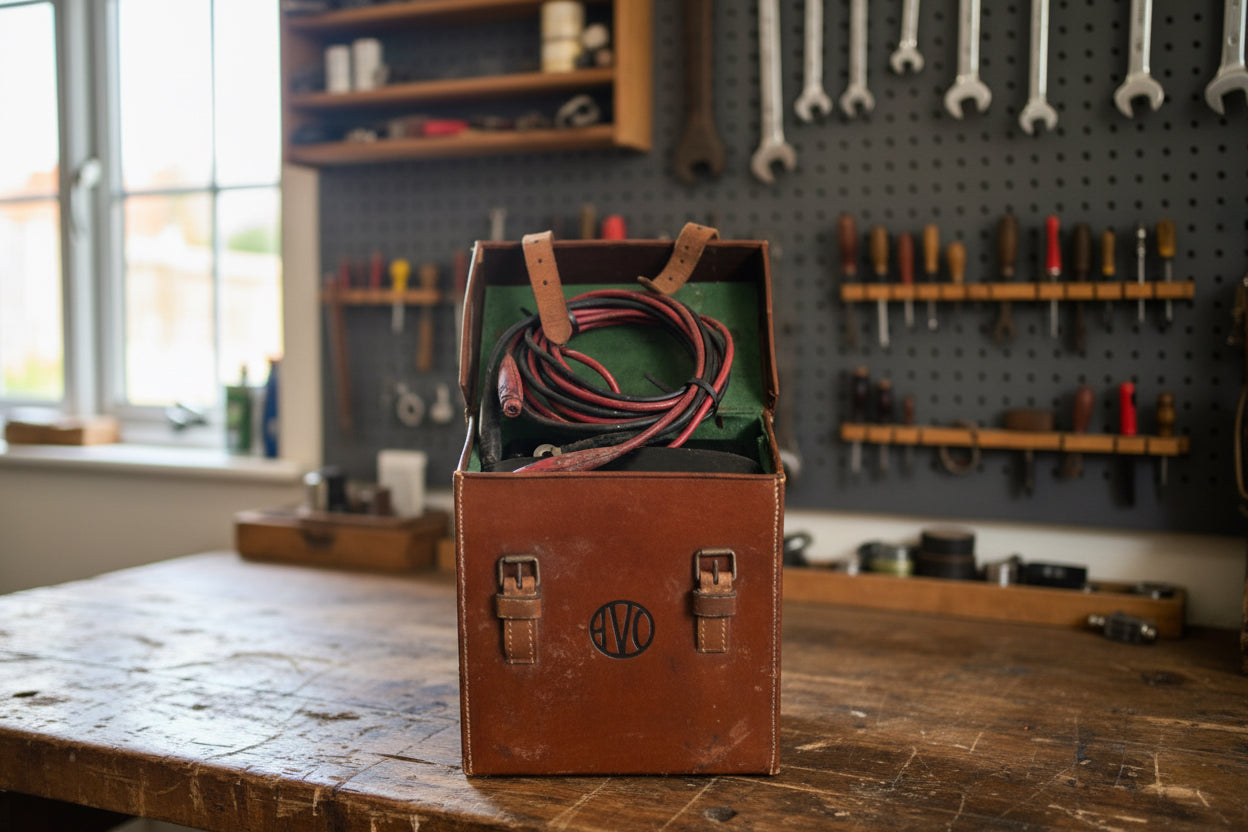

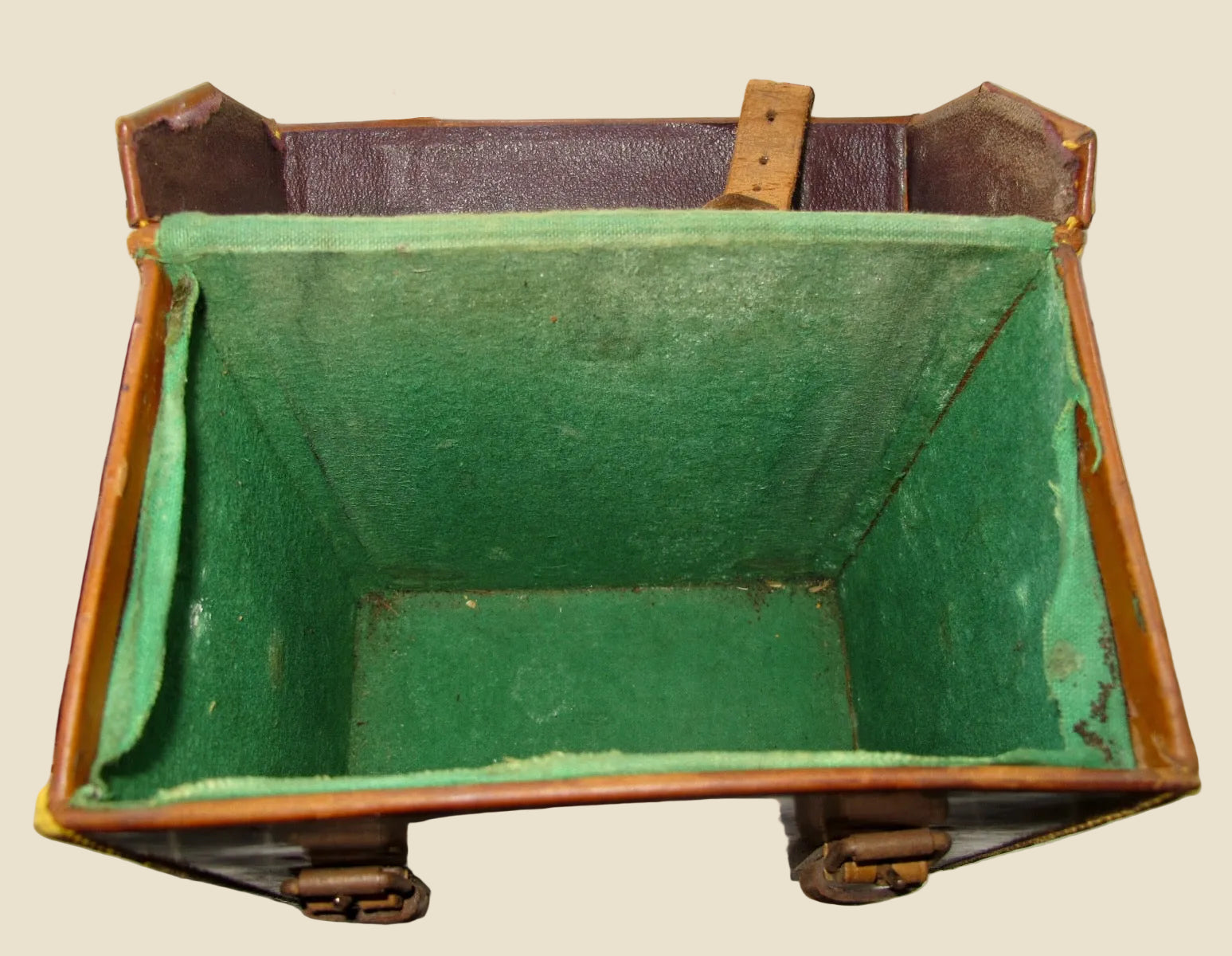

The meter is in good working condition with some slight scuffs on the surface commensurate with age and use. The green cloth lined transit case is scuffed, grubby and worn but intact: it smells a bit musty...

Approximate Dimensions (WHD): 16.7 x 20.4 x 9.6cm

A wonderful piece of vintage electronic history, although it does appear to be in working condition, it is being is sold as a collectible as I can't attest to its accuracy.

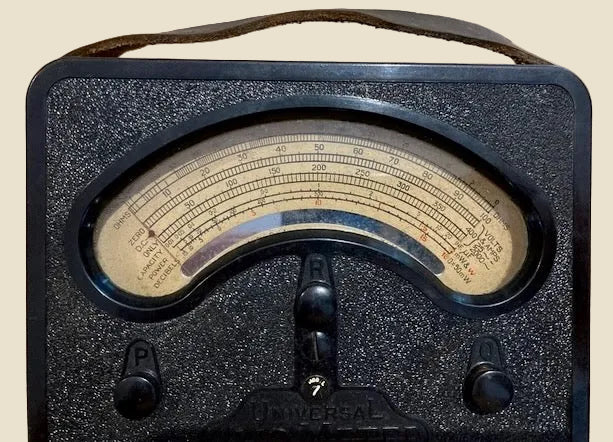

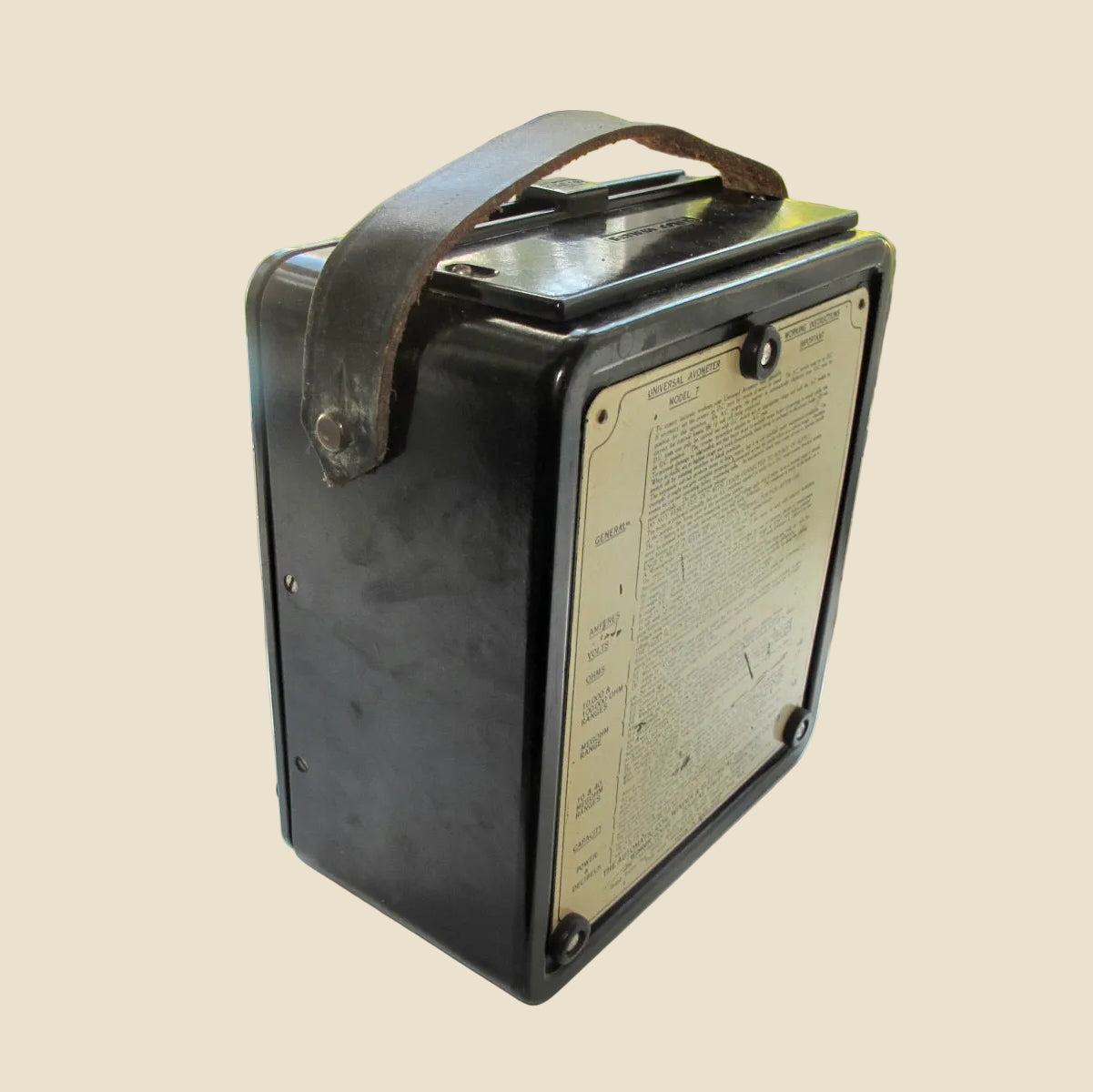

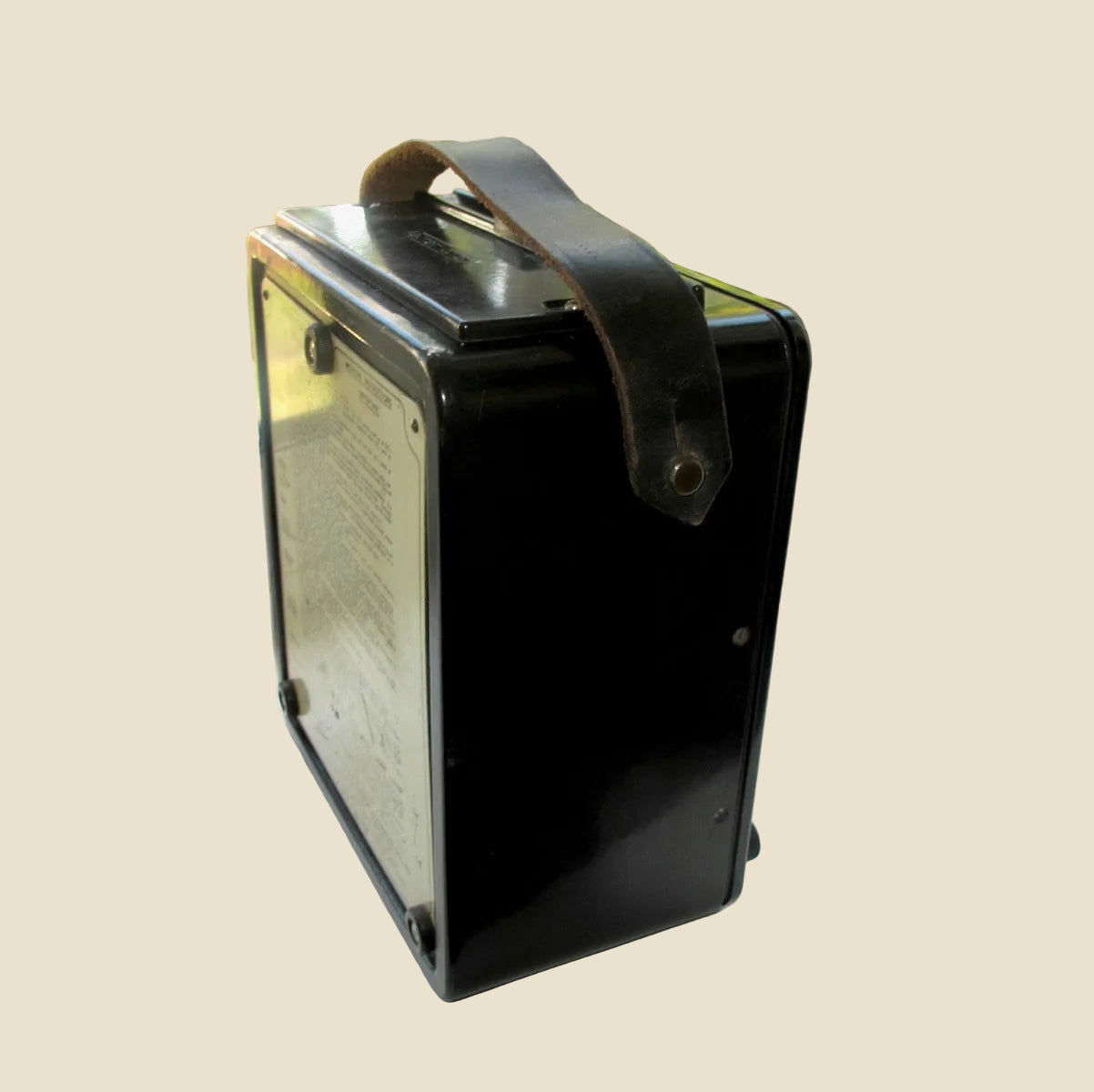

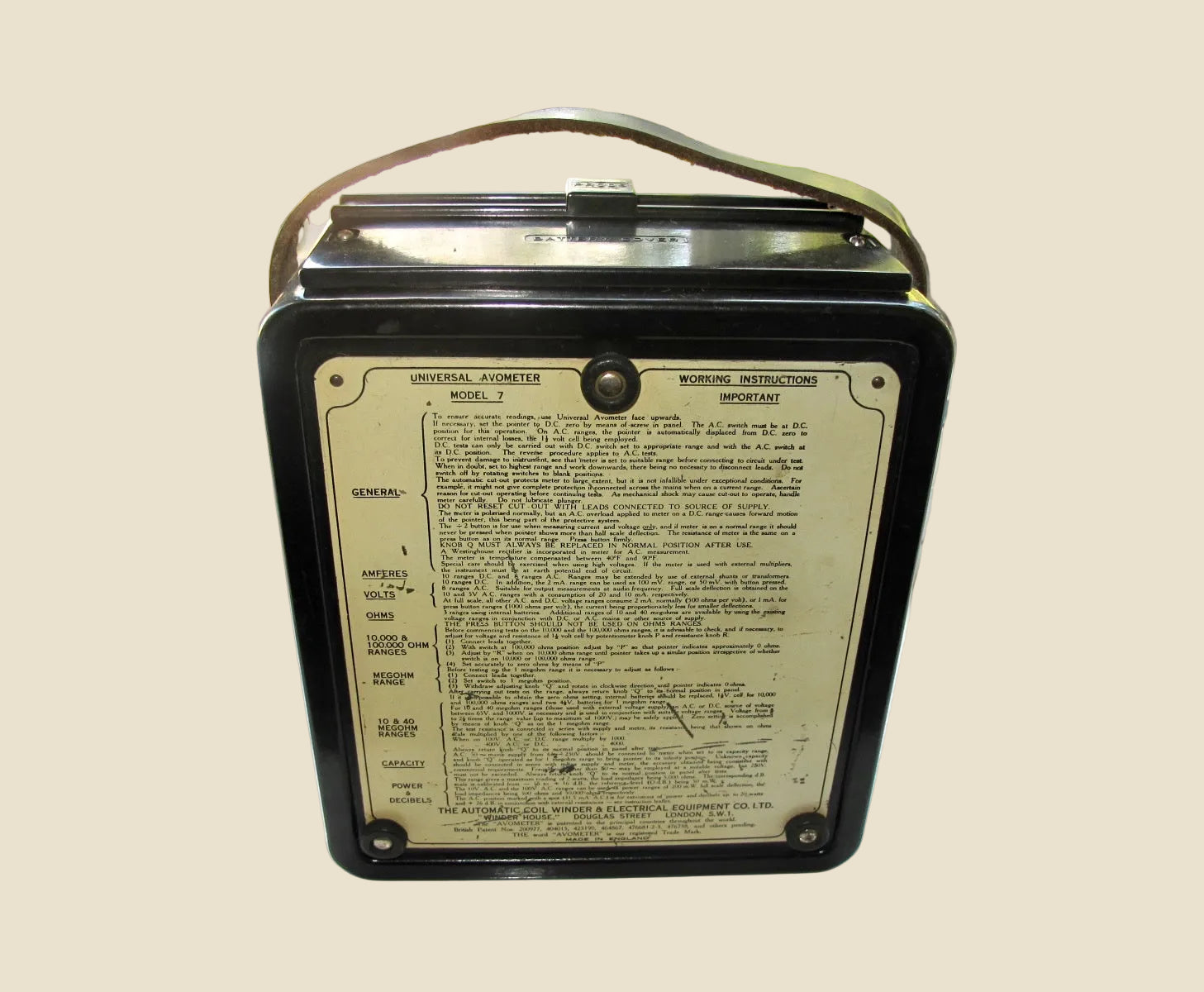

A multimeter, the model 7 measures in ohms, amps, volts and decibels. The working instructions are printed on a metal label on the rear of the instrument.

Made from 1936 to 1948, model 7 has a 1 mA movement and is housed in an aluminium case. This model is renowned for its reliability and robustness such that contemporary vintage service manuals for radios often include voltage values based on this type of meter.

The Avometer is marked:-

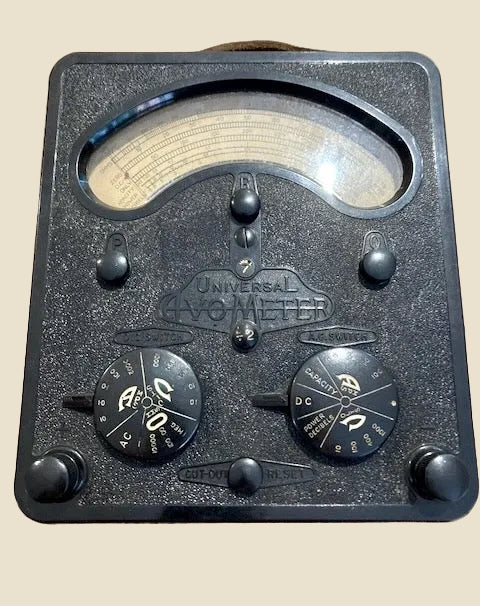

• Universal Avometer Model 7

• Serial number 7746. 27557

• Made in England by Acweeco: Automatic Coil Winder And Electrical Equipment Co. Ltd, Winder House, Douglas Street, London S.W.1

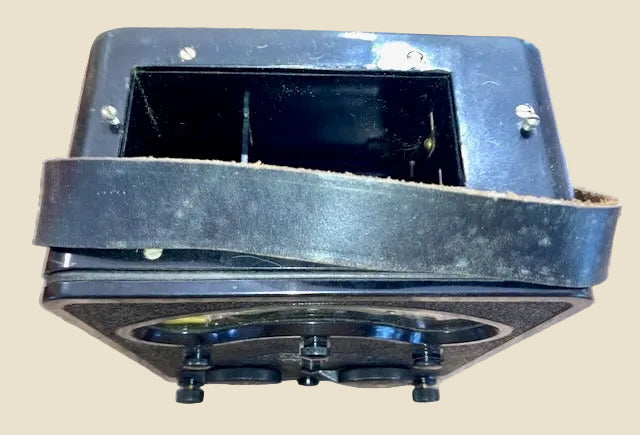

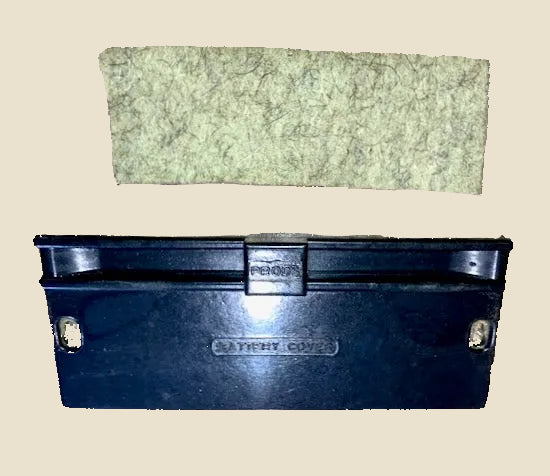

Works from batteries/cells (not included): The model 7 used a rectangular 1.5 volt cell with a brass terminal and a flying lead for the negative connection. Highest resistance range requires two 4.5 volt cycle lamp batteries with brass spring connectors.

Range of Measurements

• CURRENT: A.C. and D.C. 0 to 10 amps.

• VOLTAGE: A.C. and D:C. 0 to 1,000 volts.

• RESISTANCE: Up to 40 megohms.

• AUDIO-FREQUENCY POWER: 0-2 watts.

• CAPACITY: 0.01 to 20 mFds.

• DECIBELS: -25dB to + 16dB.


NB: Accessories shown are for photographic purposes only and are not included.
