1940s ACWEECO Universal AVO Minor Moving Coil Multimeter

  • £30.00
    Unit price per
Shipping calculated at checkout.

Only 1 left!

1940s ACWEECO Universal AVO Minor Moving Coil Multimeter

This amazing little gadget is a 1940s ACWEECO Universal AVO Minor Moving Coil Multimeter.

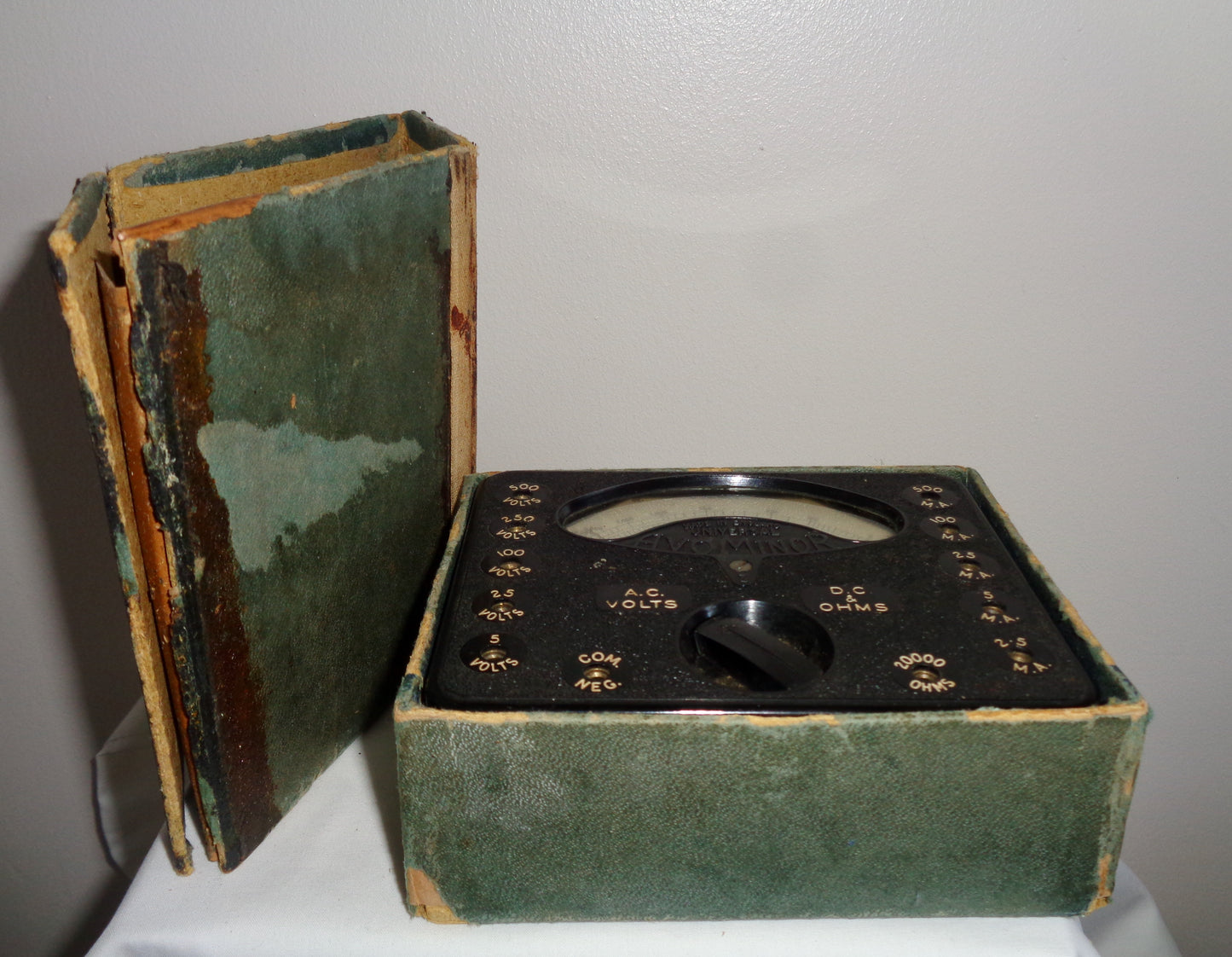

A wonderful piece of electronic history, it comes with its original cardboard box, 3 mm probes and instruction booklet. It does appear to be working but is being sold as a collectible only.

It measures:-

  • DC Volts: 5, 25, 100, 250, 500
  • DC mA: 2.5, 5, 25, 100, 500
  • AC Volts: 5, 25, 100, 250, 500
  • Non-linear scale for 5 volts A.C
  • Resistance 0- 20k ohm

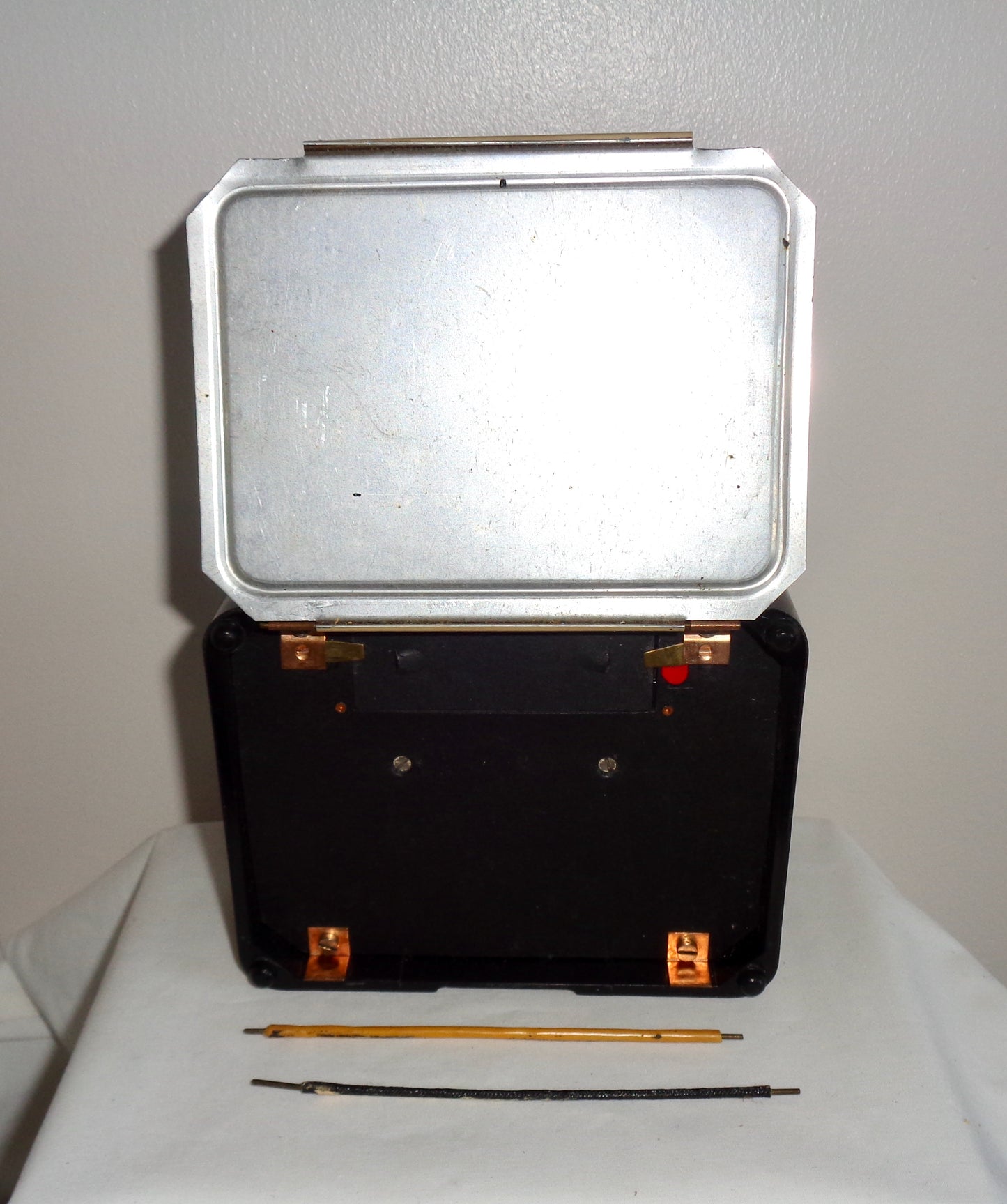

The instrument was designed to take an EverReady U10 battery, which is now obsolete, and is not included.  An AA cell could be used with, for example, a spacer or modified spring.

Serial number 107725-1149

The meter is in extremely good cosmetic condition with some surface scuffs and blemishes. The outer case is made from cardboard and has numerous repairs, scuffs and blemishes commensurate with age and storage conditions.

  • AVO Minor Meter: (AcweecoAutomatic Coil Winder And Electrical Equipment Co. Ltd)
  • Manufacturing Date: 1940s
  • Meter Type: Moving Coil Multimeter measures in milliamps and volts
  • Body: Black

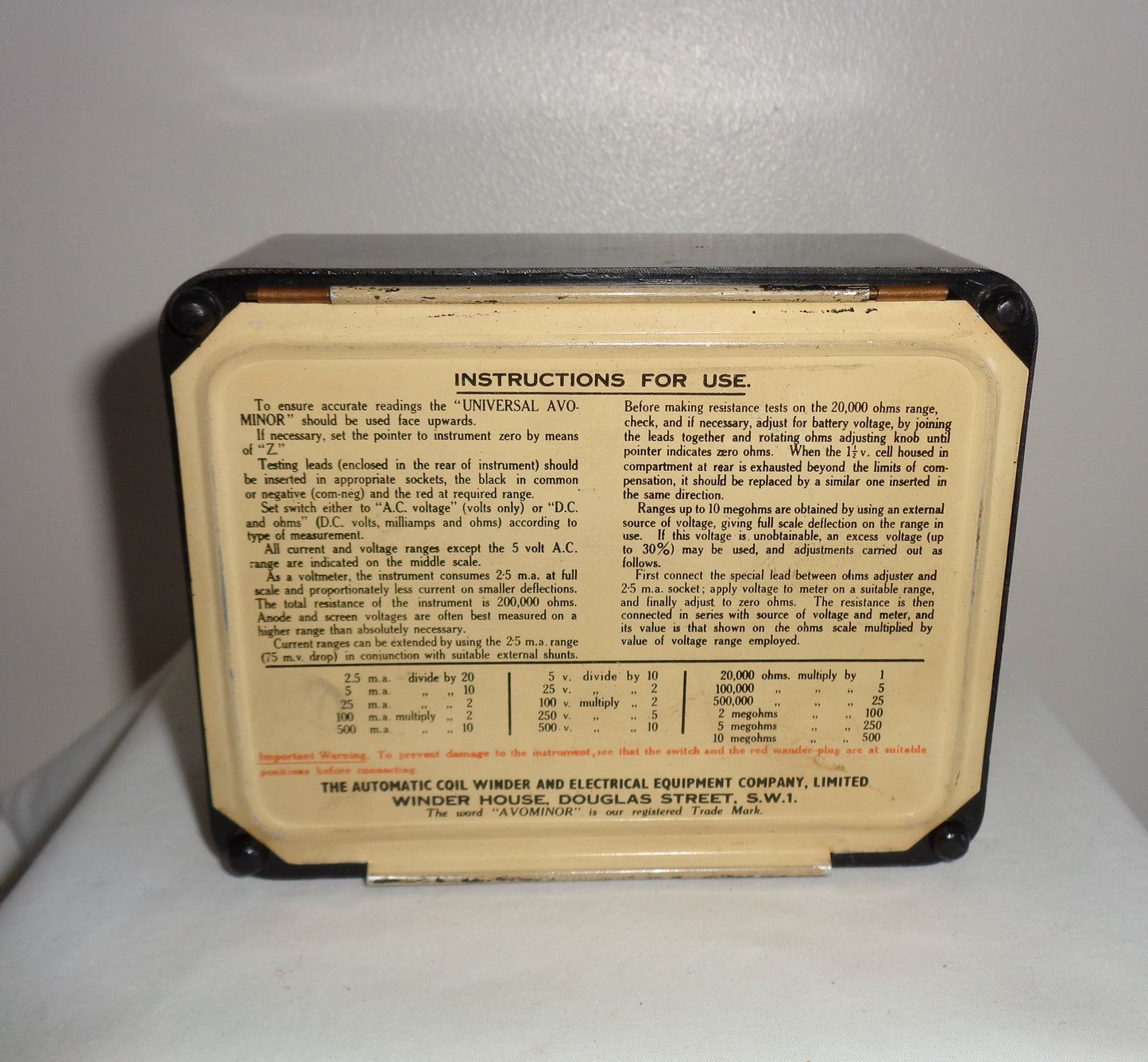

  • Metal label screwed on the rear with the Instructions For Use
  • Approximate Meter Size (W.H.D): 12 cm  x 9.6 cm x 4.6 cm
  • Made in England by The Automatic Coil Winder And Electrical Equipment Co. Ltd, Winder House, Douglas Street, London S.W.1
