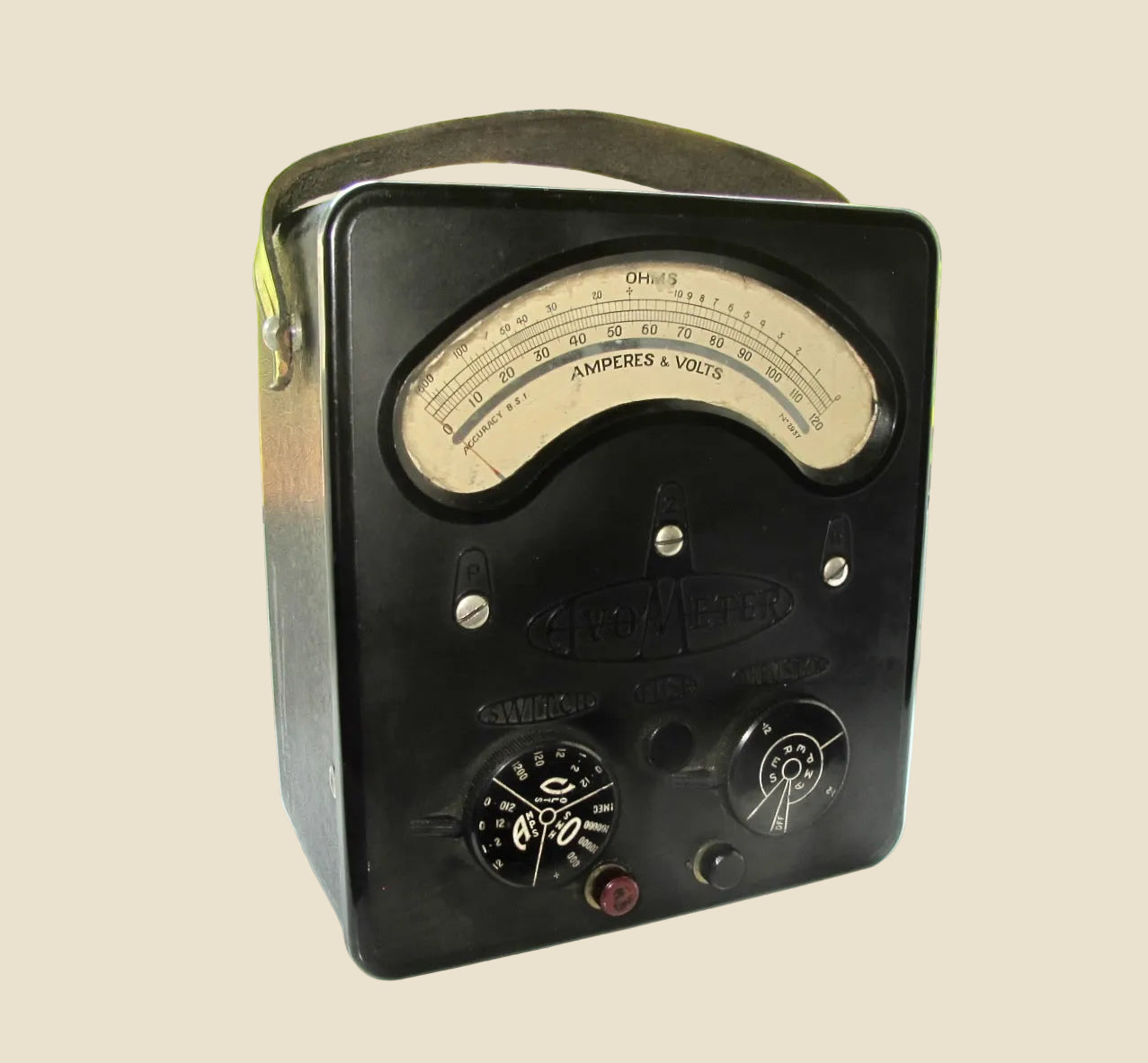

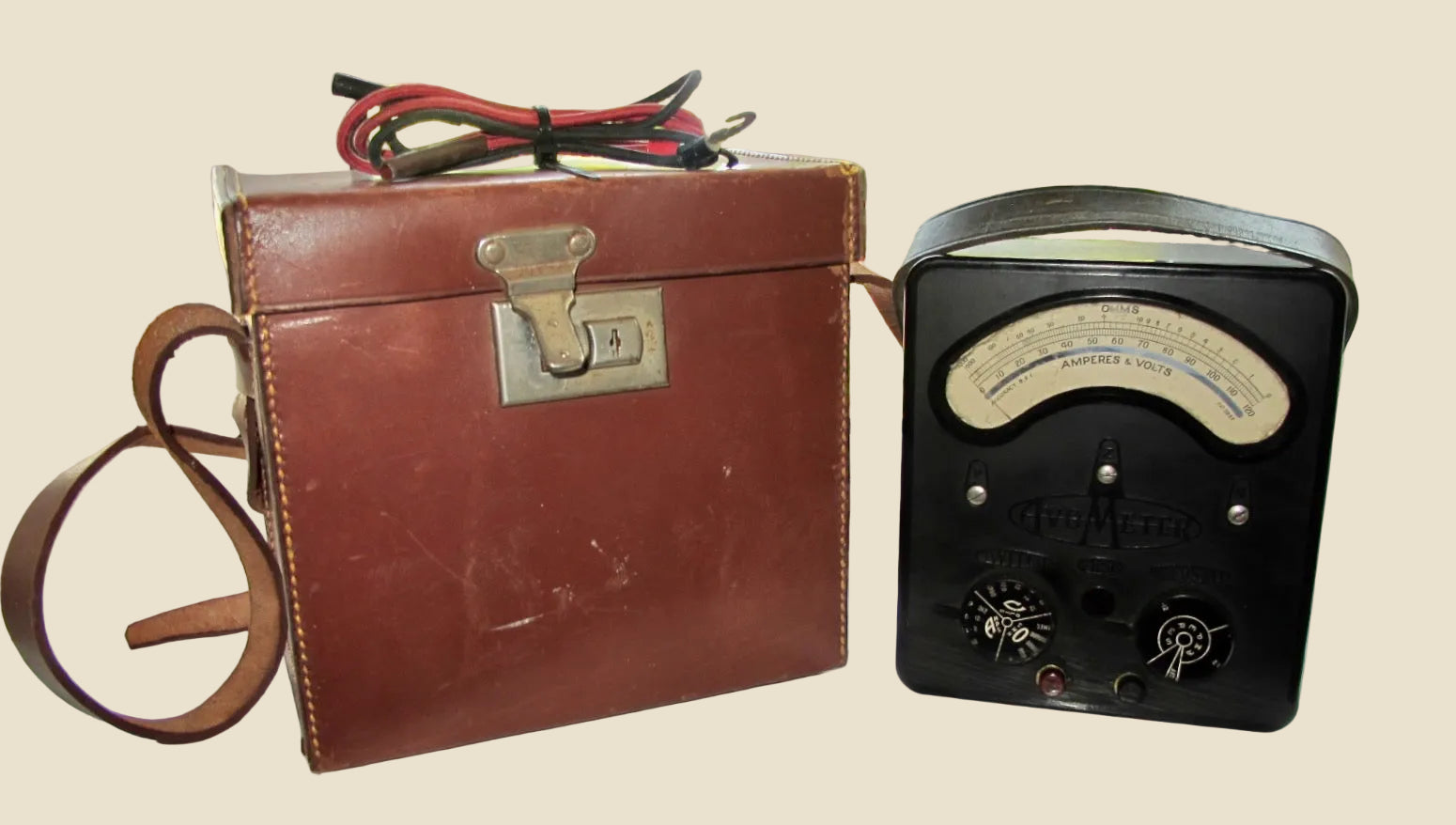

1930s Universal Avometer Model 2 13 Range With Tan Leather Transit Case

This is a very nice vintage 1930s Universal Avometer Model 2 13 Range With Tan Leather Transit Case and leads.

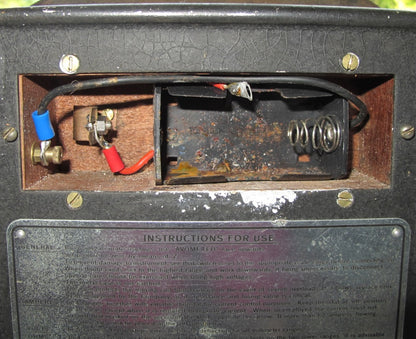

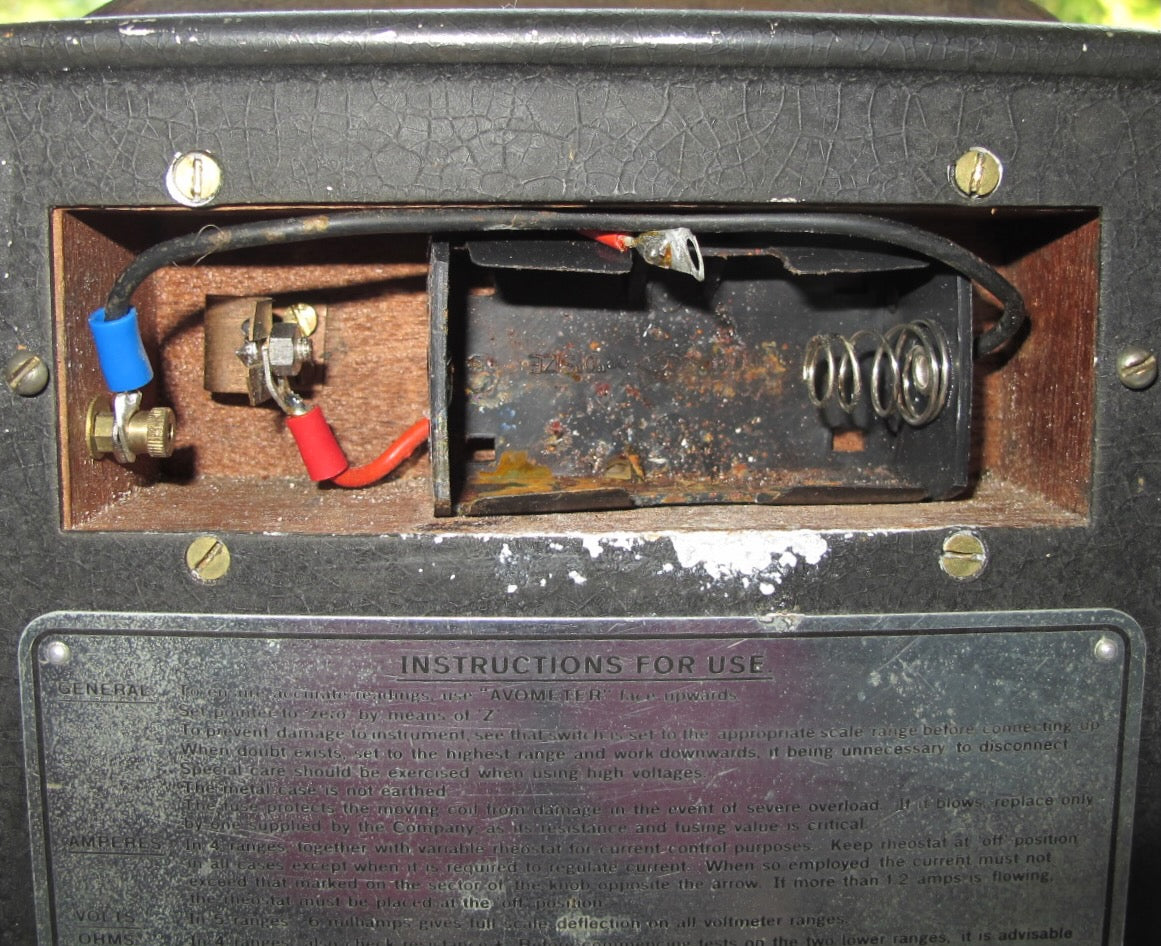

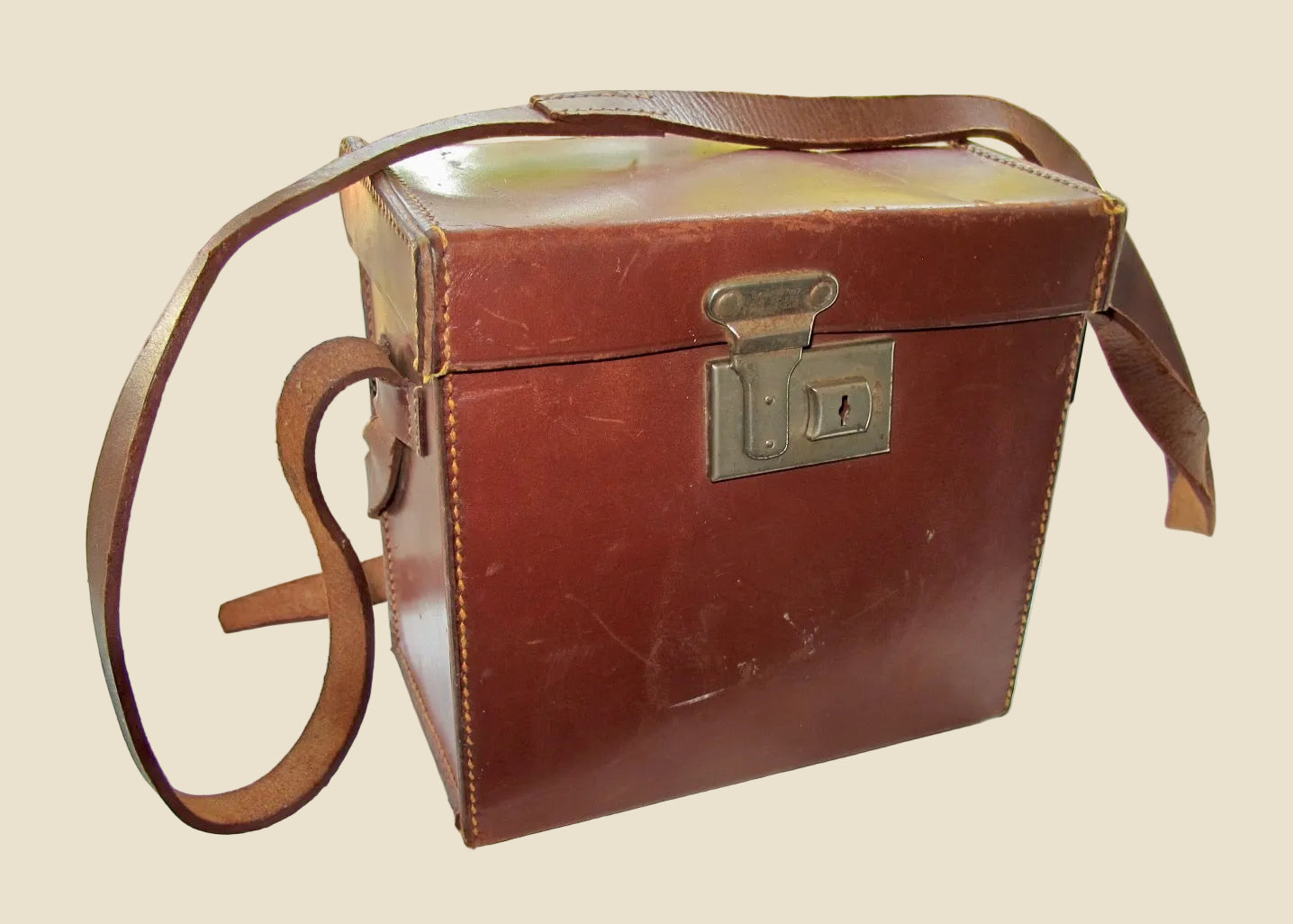

The meter is in fairly good cosmetic condition with some scuffs on the black painted surface commensurate with age and use. The battery case cover is missing and wire terminals upgraded to allow use of modern battery: not included. The transit case is scuffed, grubby and worn but intact: it smells slightly musty due to its age.

Approximate Dimensions (WHD): 16.7 x 20.4 x 9.6cm

A wonderful piece of vintage electronic history and, although it does appear to be in working condition, it is being is sold as a collectible as I can't attest to its accuracy.

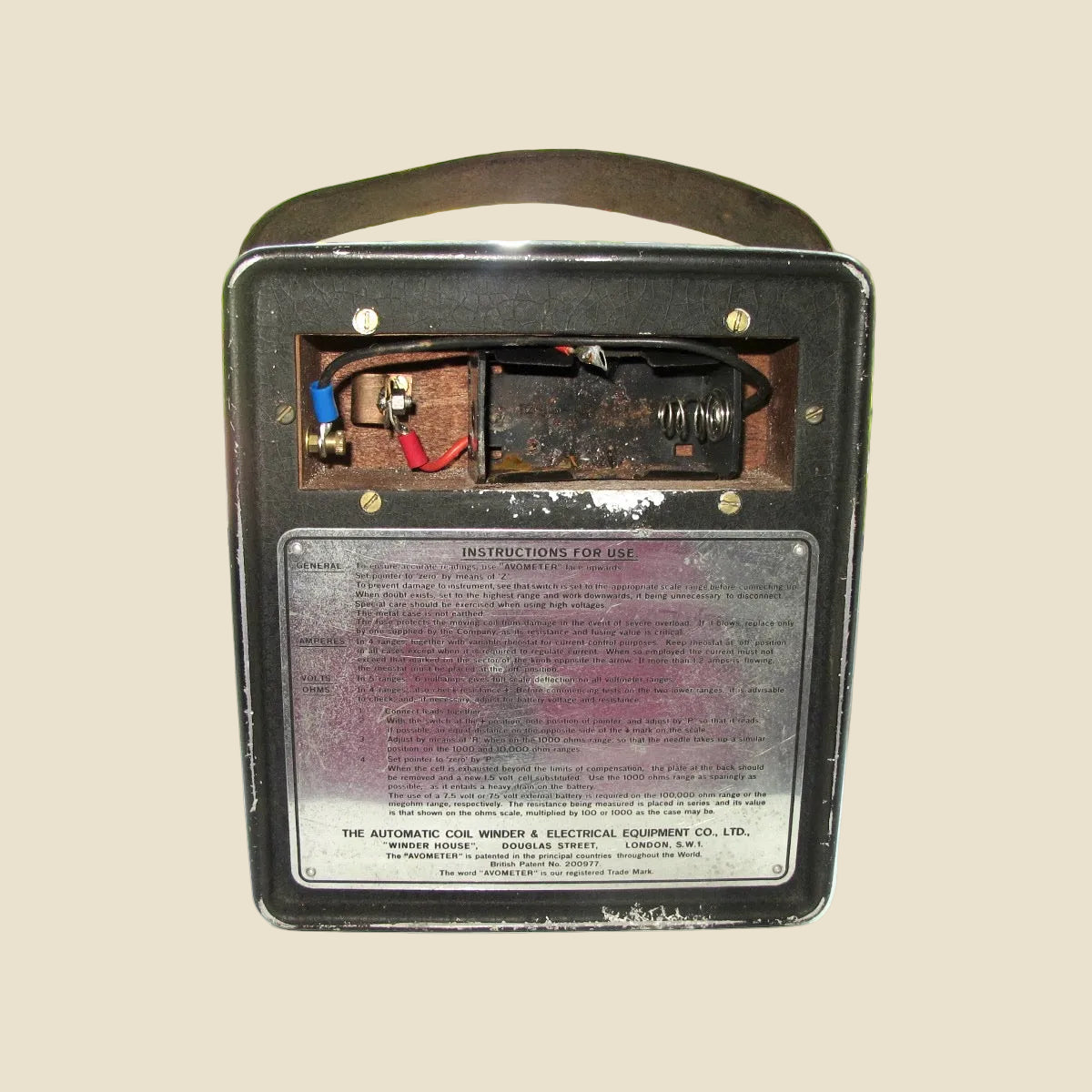

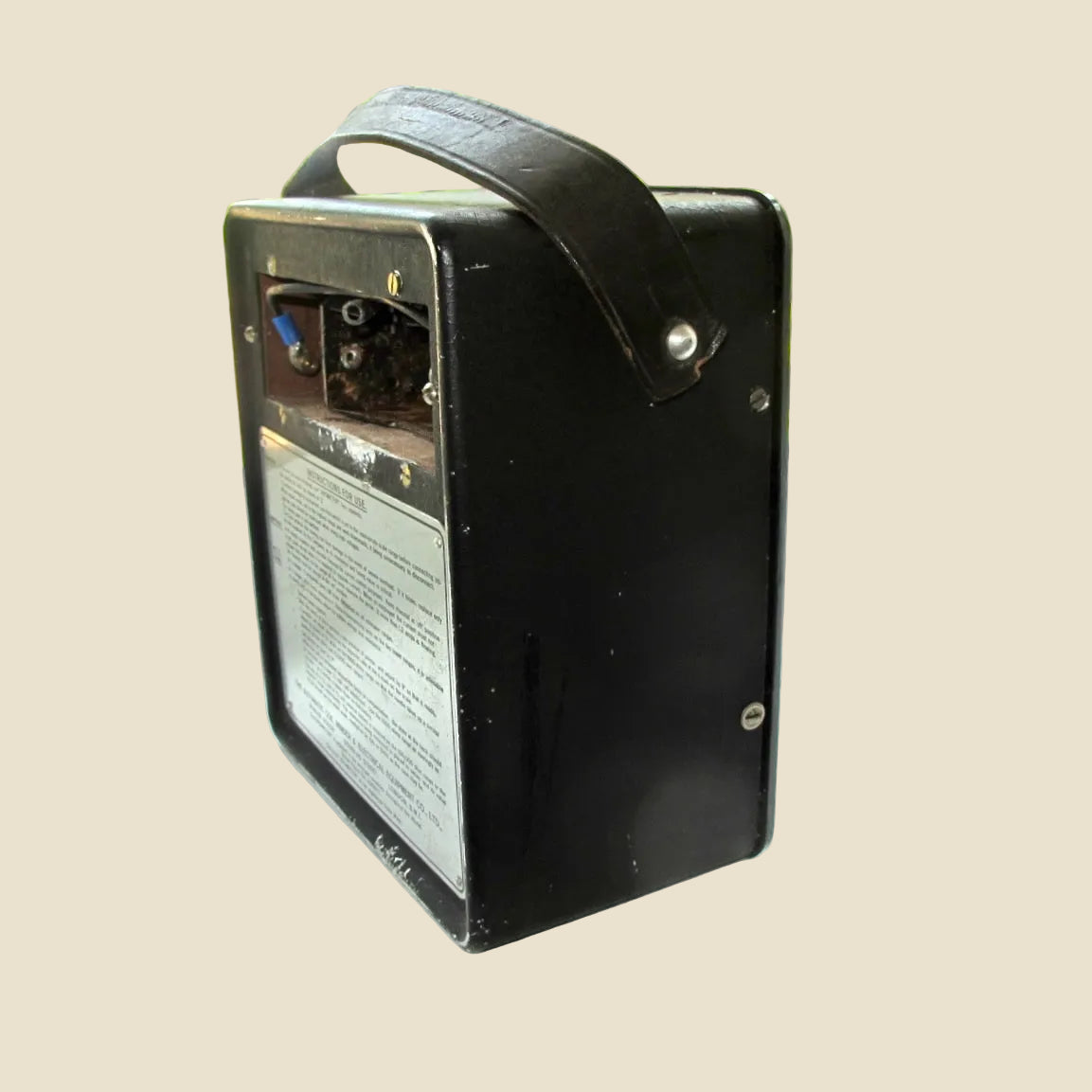

A multimeter, the model 2 measures in ohms, amps and volts. The working instructions are printed on a metal label on the rear of the instrument.

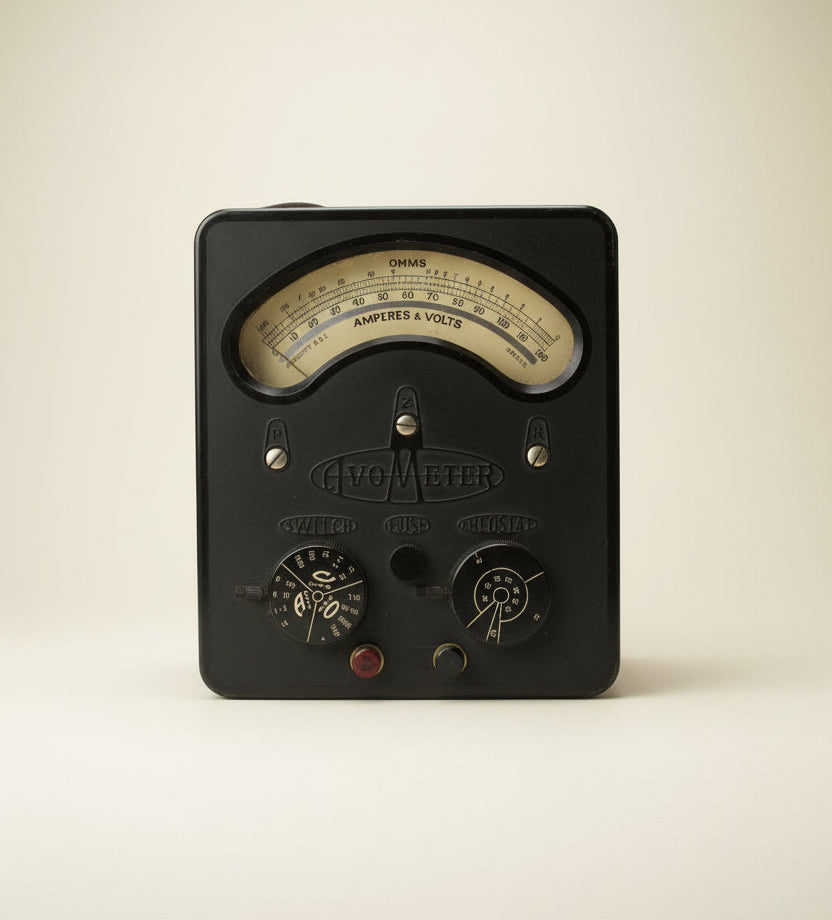

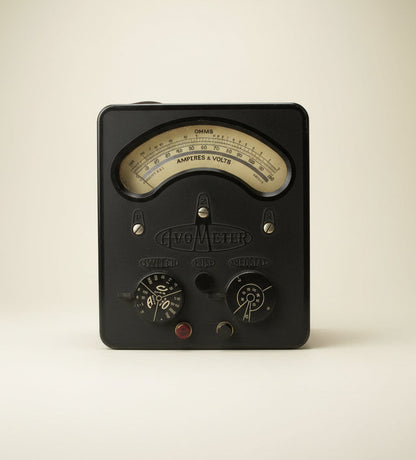

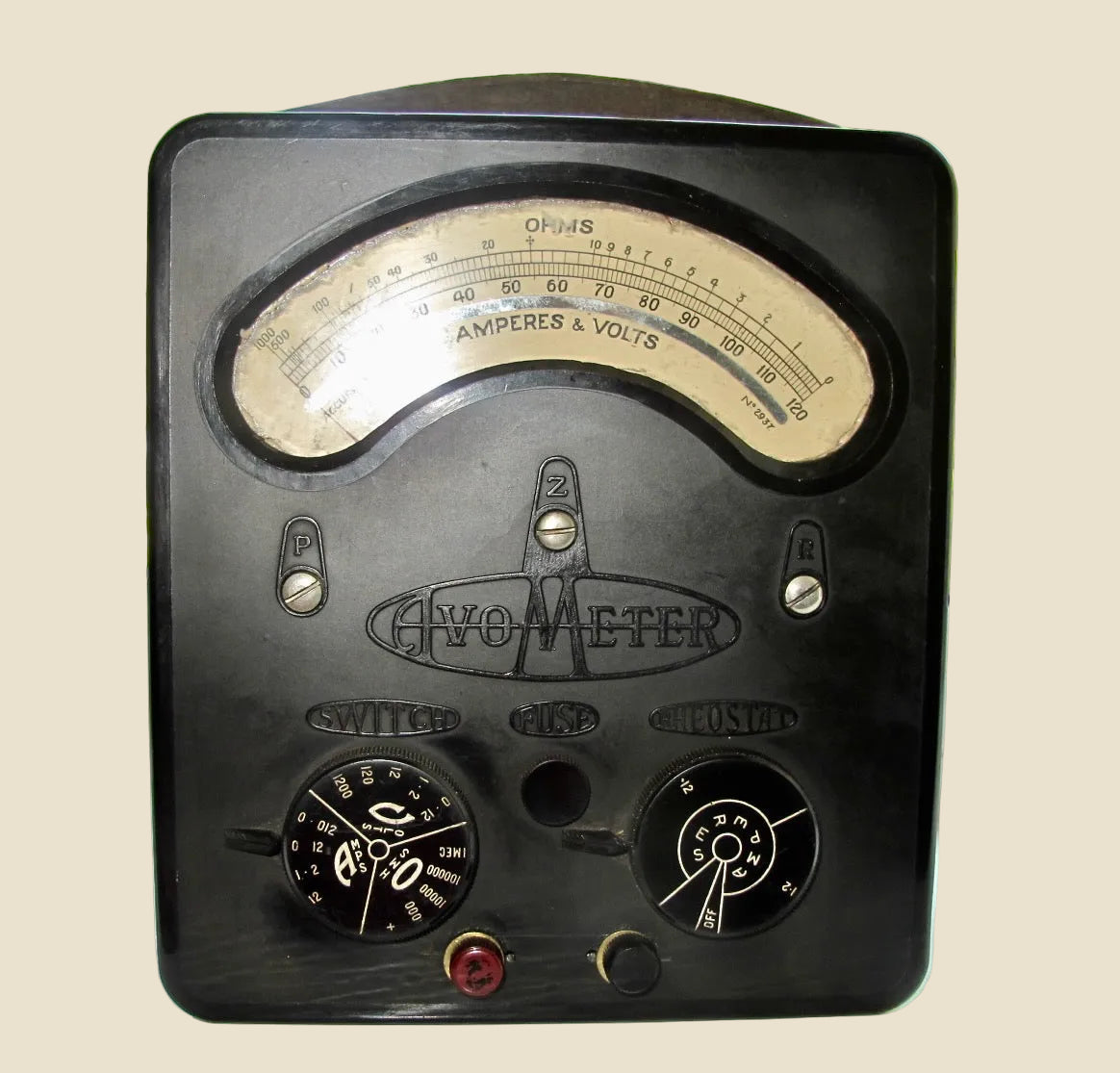

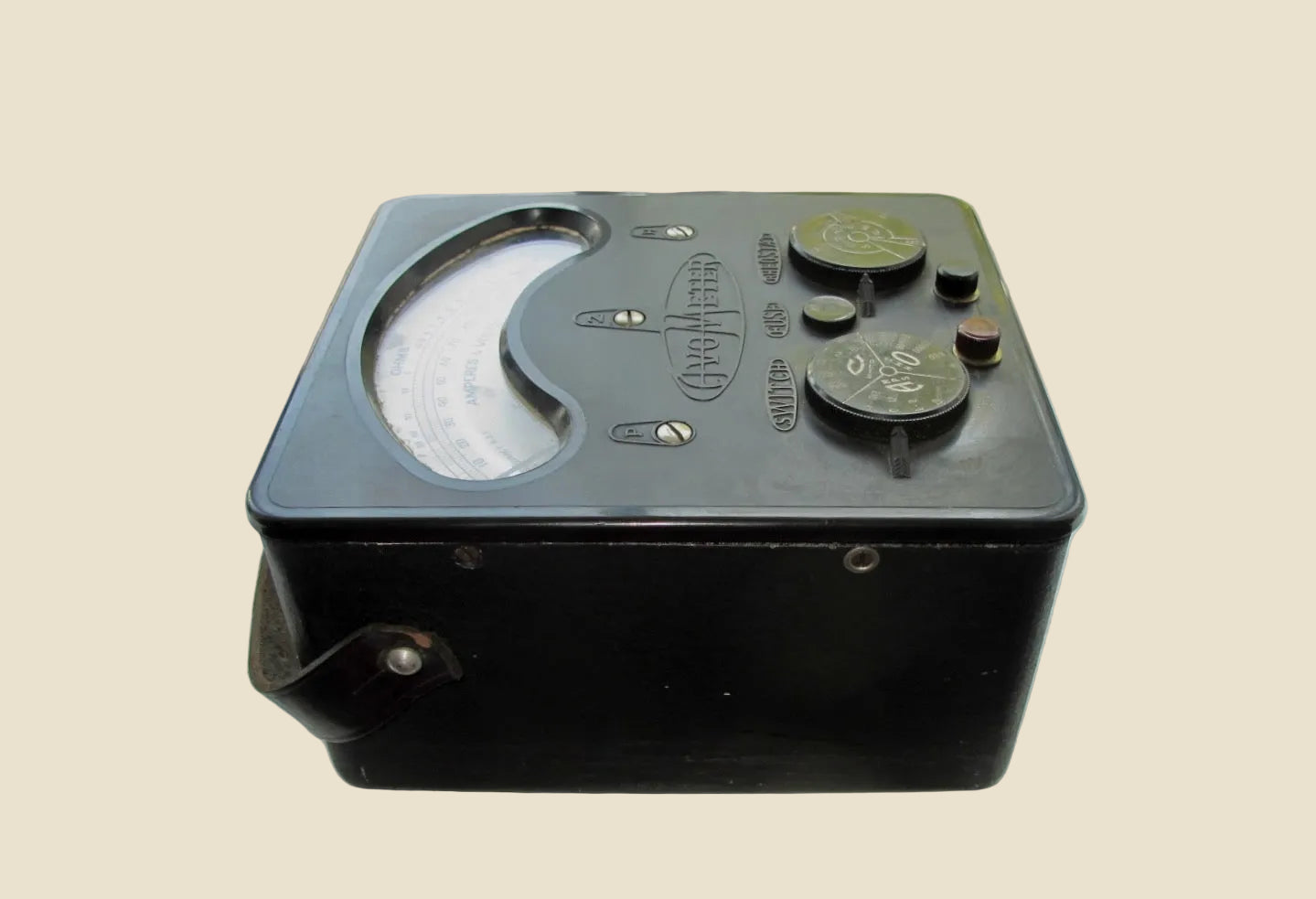

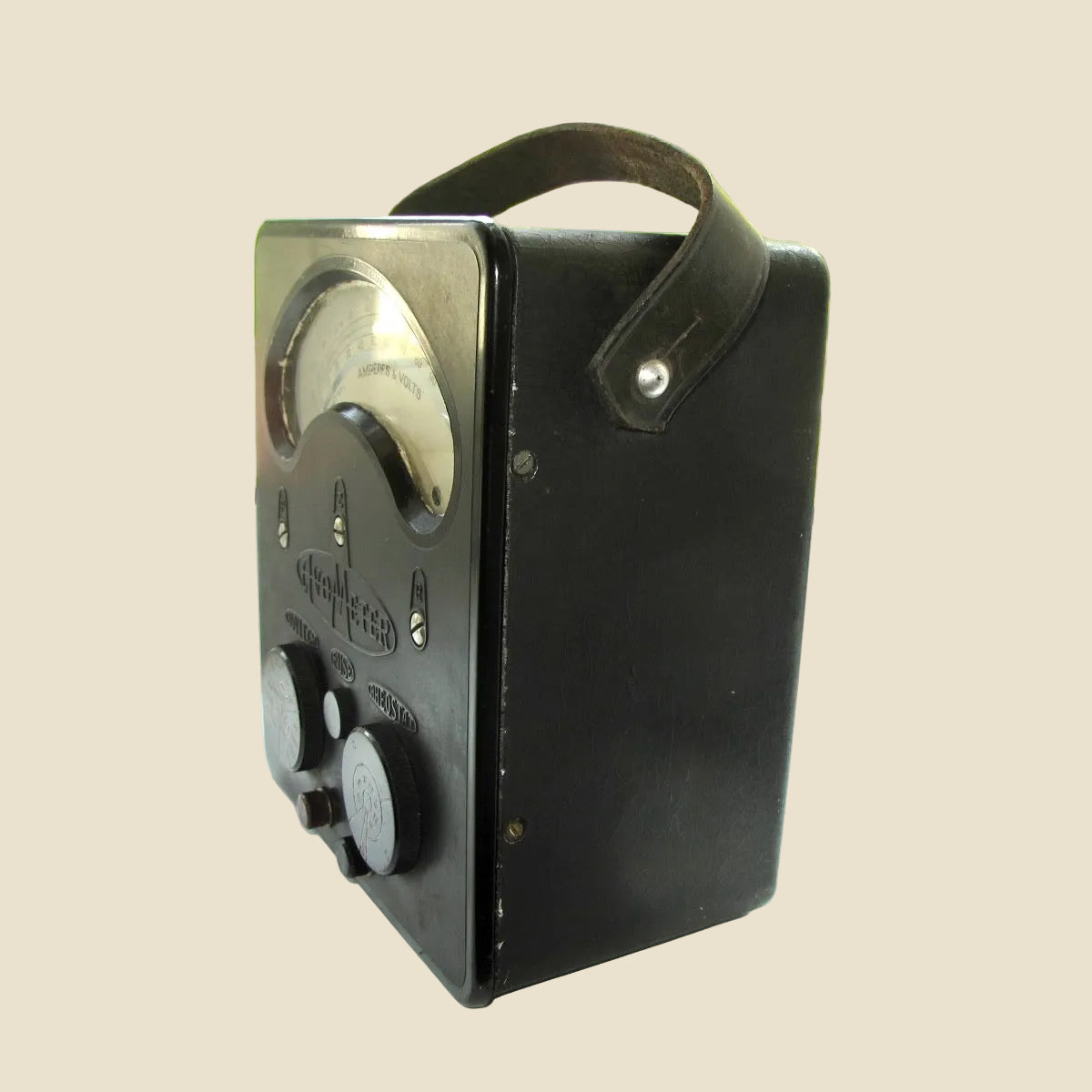

Made in ~1937, this intermediate model 2 has a black bakelite front with fuse holder, and a black painted aluminium case with wrinkle finish.

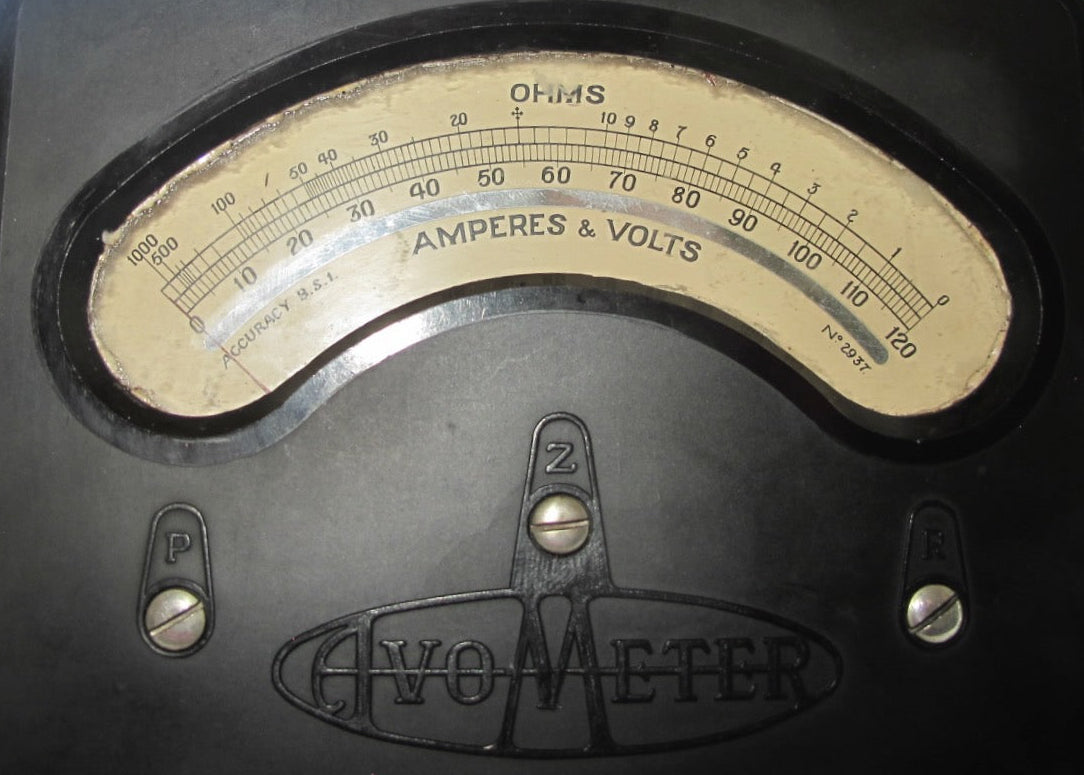

The Avometer is marked:-

• Universal Avometer Model 2

• Serial number 2937

• Made in England by Acweeco: Automatic Coil Winder And Electrical Equipment Co. Ltd, Winder House, Douglas Street, London S.W.1


The early model 2 featured an internal series fuse to protect the delicate movement, which in later intermediate versions, such as this example, was upgraded to an easily accessible replaceable screw-in-fuse on the front panel.

Range of Measurements

• DC VOLTAGE:  0.12, 1.2, 12, 120, 1200 volts - sensitivity 6 mA

• DC CURRENT:  12, 120 mA, 1.2, 12 A

• RESISTANCE: Requires external power/battery; measures × 1, × 10 (1kΩ, 10kΩ), as well as × 100, and × 1000 (100kΩ, 1MΩ) ranges.

NB: Accessories shown are for photographic purposes only and are not included.
